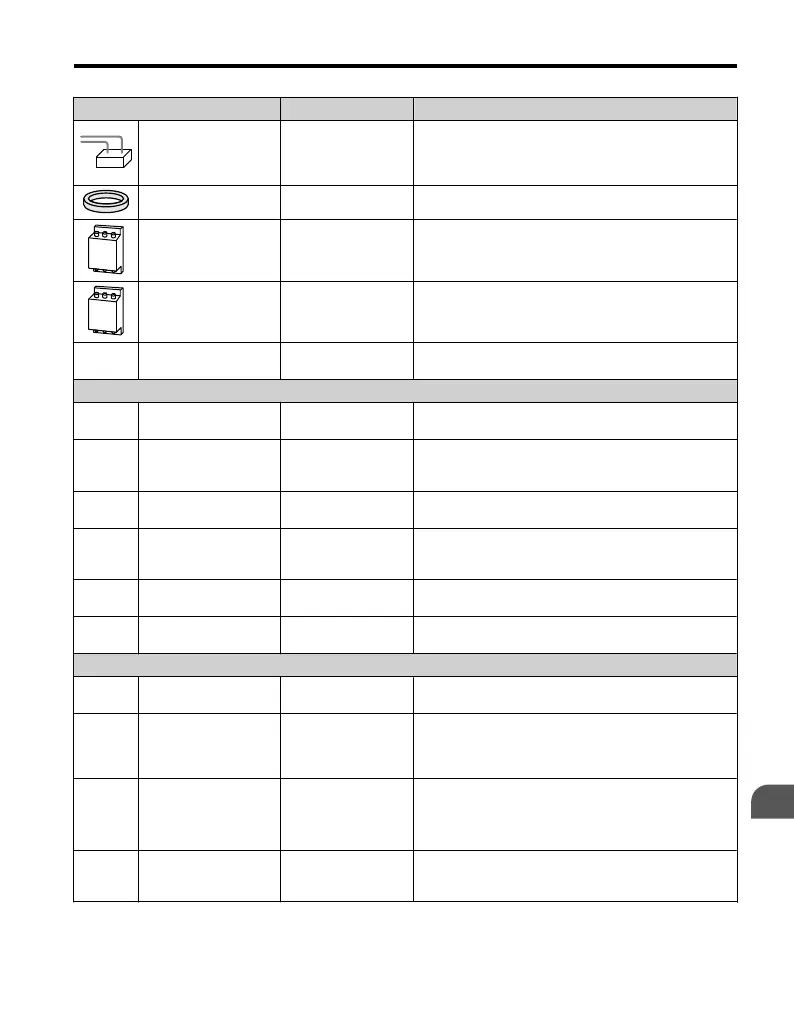

Option Model Number Description
Surge Absorber
200 V class:
DCR2-oA
400 V class:
RFN3AL-504KD
Suppresses surge voltage caused by switching magnetic
contactors
Zero Phase Reactor F6045GB Reduces electromagnetic noise
Input Noise Filter LNFB, LNFD Series
Reduces electromagnetic noise flowing back from the
drive into power supply
Output Noise Filter LF-310 Series
Reduces electromagnetic noise generated by the drive
output
— Isolator
DGPooo
Isolates the drive control I/Os for improved noise
resistance
Reference Setting / Monitor Options
—
Frequency Meter /
Ammeter
DCF-6A
External meter for displaying the output frequency or
current using an analog signal from the drive
—
Frequency Meter
Scaling Resistor (20
kΩ)
RV30YN20S20kΩ
External potentiometer for adjusting the frequency meter
scaling
— Voltmeter SCF-12NH
External meter for displaying the output voltage using an
analog signal from the drive
—
Frequency Reference
Setting Potentiometer
(2 kΩ)
RV30YN20S2kΩ
External potentiometer for setting the frequency
reference by an analog input
—
Frequency Reference
Potentiometer Knob
CM-3S Knob for frequency reference potentiometer
— Meter Plate NPJT41561-1
Plate with scale for frequency reference setting
potentiometer
Interface Options
— Remote LED Operator JVOP-182
Remote operator with LED display and copy function;
Cable length max. 3 m
— USB/Copy Unit JVOP-181
Allows the user to copy and verify parameter settings
between drives. Can also be used as adapter to connect
the drive to a PC USB port
Note: SI-232/JC option is required
—
RS-232C Serial
Communication
Interface
SI-232/JC
RS-232/C communications interface to either connect the
drive to a PC, to the optional
copy unit, or to the external
LED operator JVOP-182.
—
Remote Operator
Interface
SI-232/J
RS-232/C communications interface for use with either
the external LED operator JVOP-182, the optional copy
unit, or for connecting to a PC.
7.2 Drive Options and Peripheral Devices
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
187
