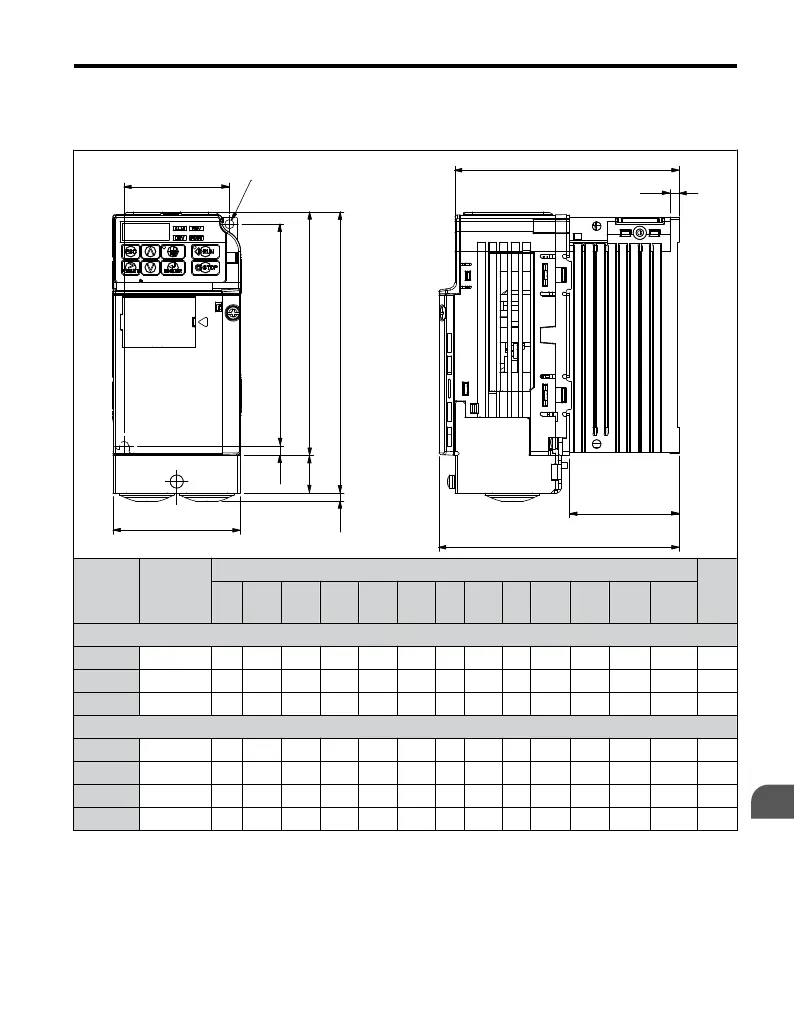

Exterior and Mounting Dimensions for NEMA Type 1 Kit
Table 7.4 IP20/Open-Chassis Design Fitted with the NEMA Type 1 Kit
D1
t1
H1
H
H2
H5 H4
H3
W
D2
D
2-M4W1
Drive
Model
NEMA
Type 1 Kit
Model
EZZ
Dimensions (mm)
Wt.
(kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Single-Phase 200 V Class
BA0001B 020564A 68 148 76 56 128 118 5 20 5 1.5 6.5 67.5 3 0.8
BA0002B 020564A 68 148 76 56 128 118 5 20 5 1.5 6.5 67.5 3 0.8
BA0003B 020564B 68 148 118 56 128 118 5 20 5 1.5 38.5 109.5 5 1.2
Three-Phase 200 V Class
2A0001B 020564A 68 148 76 56 128 118 5 20 5 1.5 6.5 67.5 3 0.8
2A0002B 020564A 68 148 76 56 128 118 5 20 5 1.5 6.5 67.5 3 0.8
2A0004B 020564A 68 148 108 56 128 118 5 20 5 1.5 38.5 99.5 5 1.1
2A0006B 020564A 68 148 128 56 128 118 5 20 5 1.5 58.5 119.5 5 1.3
7.4 Installing Peripheral Devices
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
203
7
Peripheral Devices & Options
