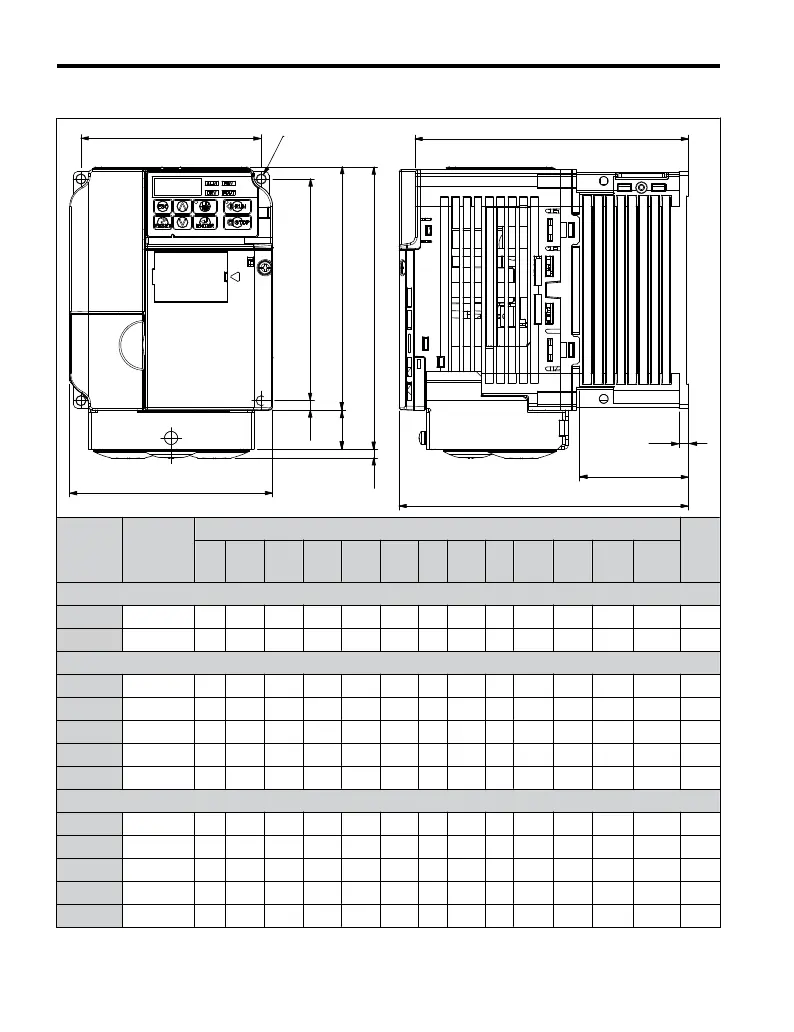

Table 7.5 IP20/Open-Chassis Design Fitted with the NEMA Type 1 Kit
4-M4
W1
W
H5
H2
H4
H
H3
H1
D1
D2
D
t1
Drive
Model
NEMA
Type 1 Kit
Model
EZZ
Dimensions (mm)
Wt.
(kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Single-Phase 200 V Class
BA0006B 020564C 108 149 137.5 96 128 118 5 21 5 1.5 58 129 5 1.9
BA0010B 020564D 108 149 154 96 128 118 5 21 5 1.5 58 145.5 5 2.0
Three-Phase 200 V Class
2A0008B 020564G 108 149 129 96 128 118 5 21 5 1.5 58 120.5 5 1.9
2A0010B 020564G 108 149 129 96 128 118 5 21 5 1.5 58 120.5 5 1.9
2A0012B 020564C 108 149 137.5 96 128 118 5 21 5 1.5 58 129 5 1.9
2A0018B 020564H 140 149 143 128 128 118 5 21 5 5 65 134.5 5 2.6
2A0020B 020564H 140 149 143 128 128 118 5 21 5 5 65 134.5 5 2.6
Three-Phase 400 V Class
4A0001B 020564G 108 149 81 96 128 118 5 21 5 1.5 10 72.5 5 1.2
4A0002B 020564G 108 149 99 96 128 118 5 21 5 1.5 28 90.5 5 1.4
4A0004B 020564C 108 149 137.5 96 128 118 5 21 5 1.5 58 129 5 1.9
4A0005B 020564J 108 149 154 96 128 118 5 21 5 1.5 58 145.5 5 1.9
4A0007B 020564J 108 149 154 96 128 118 5 21 5 1.5 58 145.5 5 1.9
7.4 Installing Peripheral Devices
204
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
