Multiple Drive Installation
When installing multiple drives into the same
enclosure panel, mount the drives according to
Figure 2.2. When mounting drives with a minimum side-by-side clearance of 2 mm according
to Figure 2.3, derating must be considered and parameter L8-35 must be set. Refer to
Parameter List on page 221.
2 mm
D
C
C
B
B
A
A – Line up the tops of the
drives.
B – 30 mm minimum
C – 100 mm minimum
D – Airflow direction

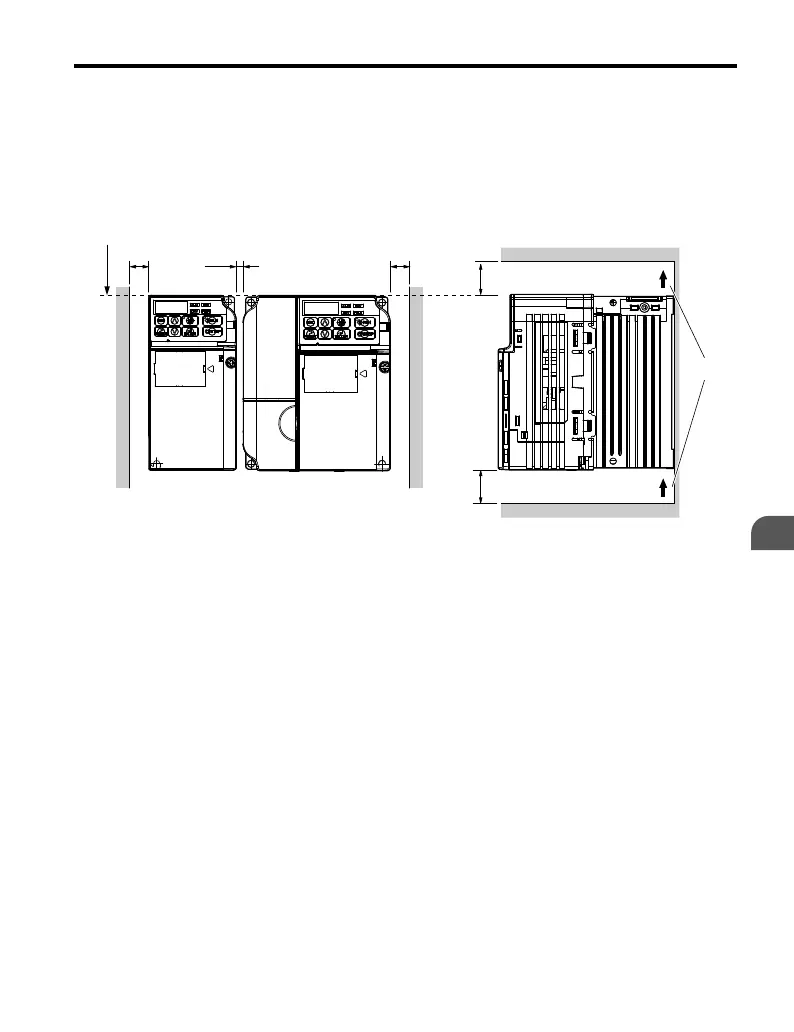

Figure 2.3 Space Between Drives (Side-by-Side Mounting)
Note: When installing drives of different heights in
the same enclosure panel, the tops of the drives should line
up. Leave space between the top and bottom of stacked drives for cooling fan replacement if required.
Using this method, it is possible to replace the cooling fans later.
2.2 Mechanical Installation
YASKAWA ELECTRIC TOEP C710606 25D YASKAWA AC Drive J1000 Installation & Start-Up Manual
35
2
Mechanical Installation
