Wire Size and Torque Specifications
Select appropriate wire type and size from Table 3.8. For simpler and more reliable wiring,
crimp ferrules to the wire ends. Refer to Table 3.9 for ferrule terminal types and sizes.

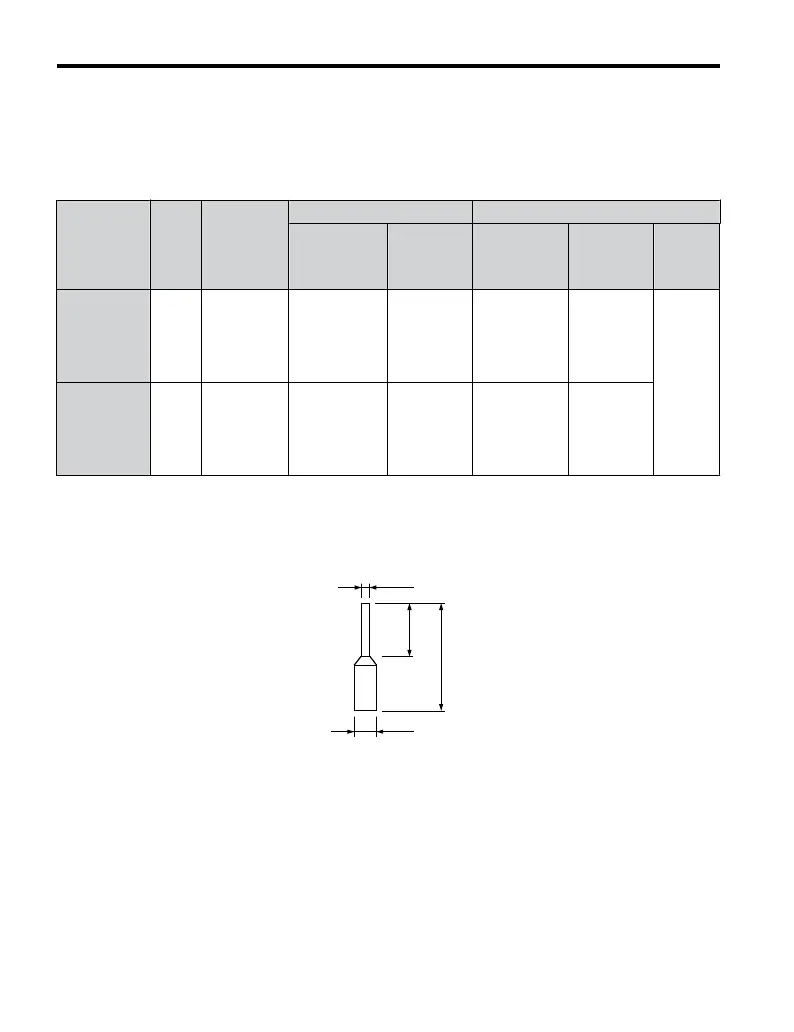

Table 3.8 Wire Size and Torque Specifications (Same for All Models)
Terminal
Screw
Size
Tightening
Torque
N•m
Bare Wire Terminal Ferrule-Type Terminal
Applicable
wire size
mm
2
(AWG)
Recomm.
mm
2
(AWG)
Applicable
wire size
mm
2
(AWG)
Recomm.
mm
2
(AWG)
Wire
Type
MA, MB, MC M3 0.5 to 0.6
Stranded: 0.25
to 1.5
(24 to 16)
Single: 0.25 to
1.5
(24 to 16)
0.75 (18)
0.25 to 1.0
(24 to 17)
0.5 (20)
Shielded
line, etc.
S1-S5, SC,
+V, A1, AC,
AM
M2 0.22 to 0.25
Stranded: 0.25
to 1.0
(24 to 18)
Single: 0.25 to
1.5
(24 to 16)
0.75 (18)
0.25 to 0.5
(24 to 20)
0.5 (20)
n
Ferrule-Type Wire Terminations
Crimp a ferrule to signal wiring to
improve wiring simplicity and reliability. Use CRIMPFOX
6, a crimping tool manufactured by PHOENIX CONTACT.
d1
d2
6 mm
L
Figure 3.12 Ferrule Dimensions
3.7 Control Circuit Wiring
60
