Transportation
3 - 15
3.1.1 Using a crane
Adequate load handling devices must be used to transport the robot. Make sure that the
robot is lifted as shown in the diagram "Transport by crane".

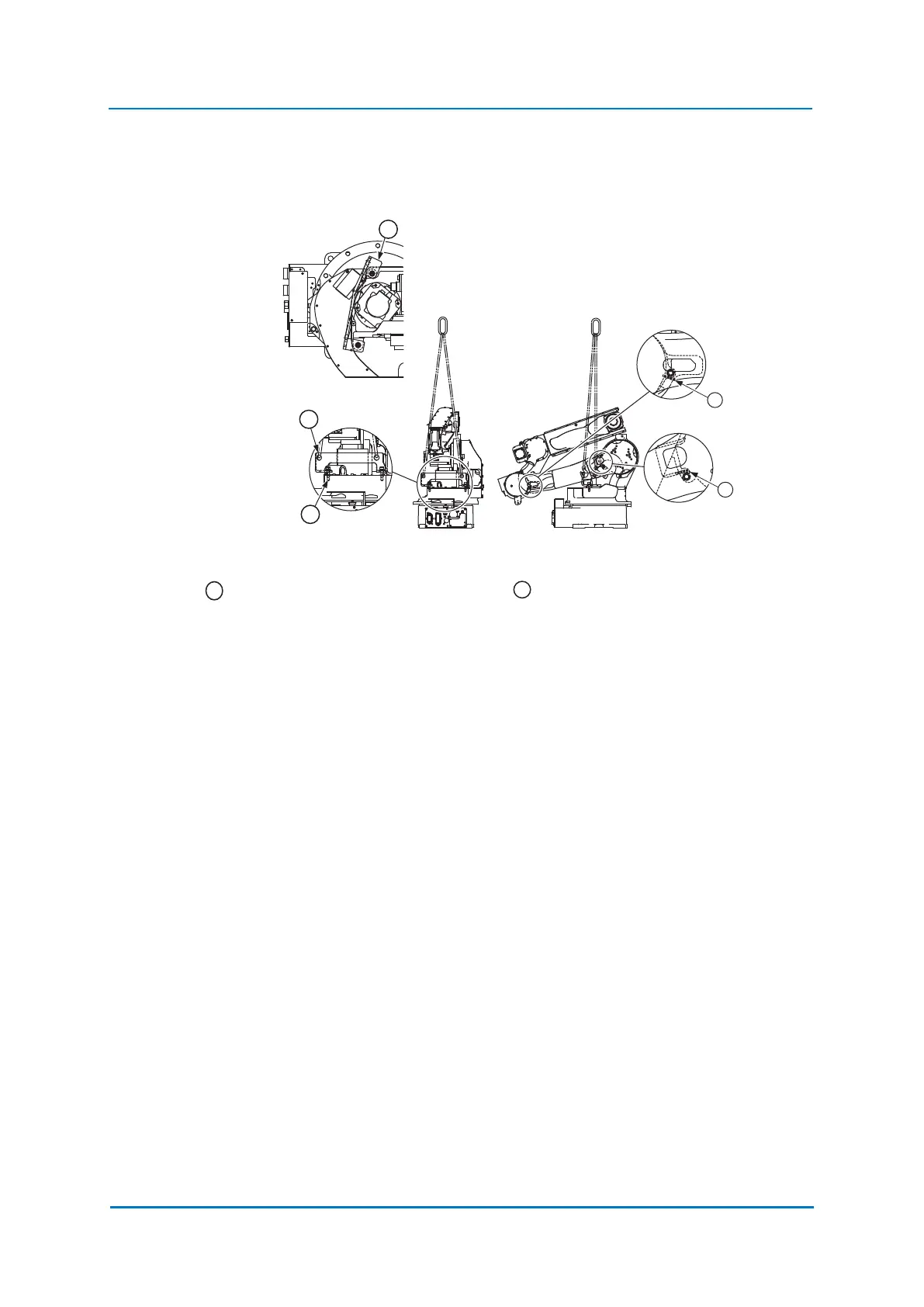

Fig. 3-1: Transport with crane
Shipping bracket 2 screws M12
1
1
2
B
A
1
2
