Parts lists
11 - 91
11.3 U-axis drive

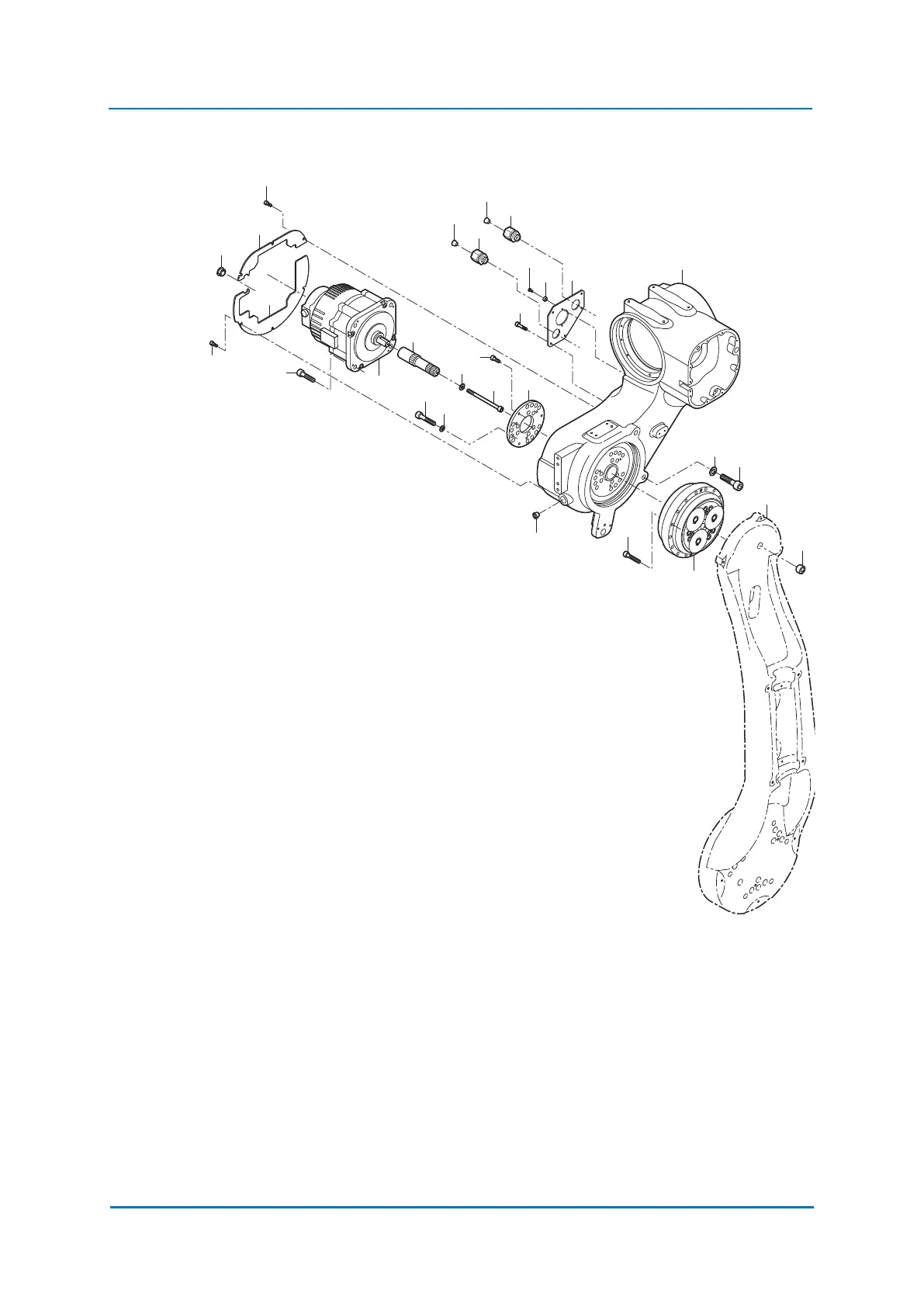

Fig. 11-3: U-axis drive
No. DWG no. Designation Piece
3001 HW1100686-1 Housing 1
3002 M12 x 25 Screw 2
3003 2H-12 Washer 2
3004 HW1304321-1 Pinion 1
3005 NPTF3/8 Grub screw 1
3006 M5 x 90 Screw 1
3007 2L-5 Washer 1
3001
2001
3014
3006
3007
3002
3002
300
5
3008
3003
3004
3009
3011
3021
3018
3019
3028
3027
3026
3020
3017
3012
3013
3015
3016
3023
3022
3025
3029
3024
