2.6 Communications with a Mitsubishi PLC (A-compatible 1E Frame protocol)
Using Automatic Reception with the MP3000 as a Slave
2-102

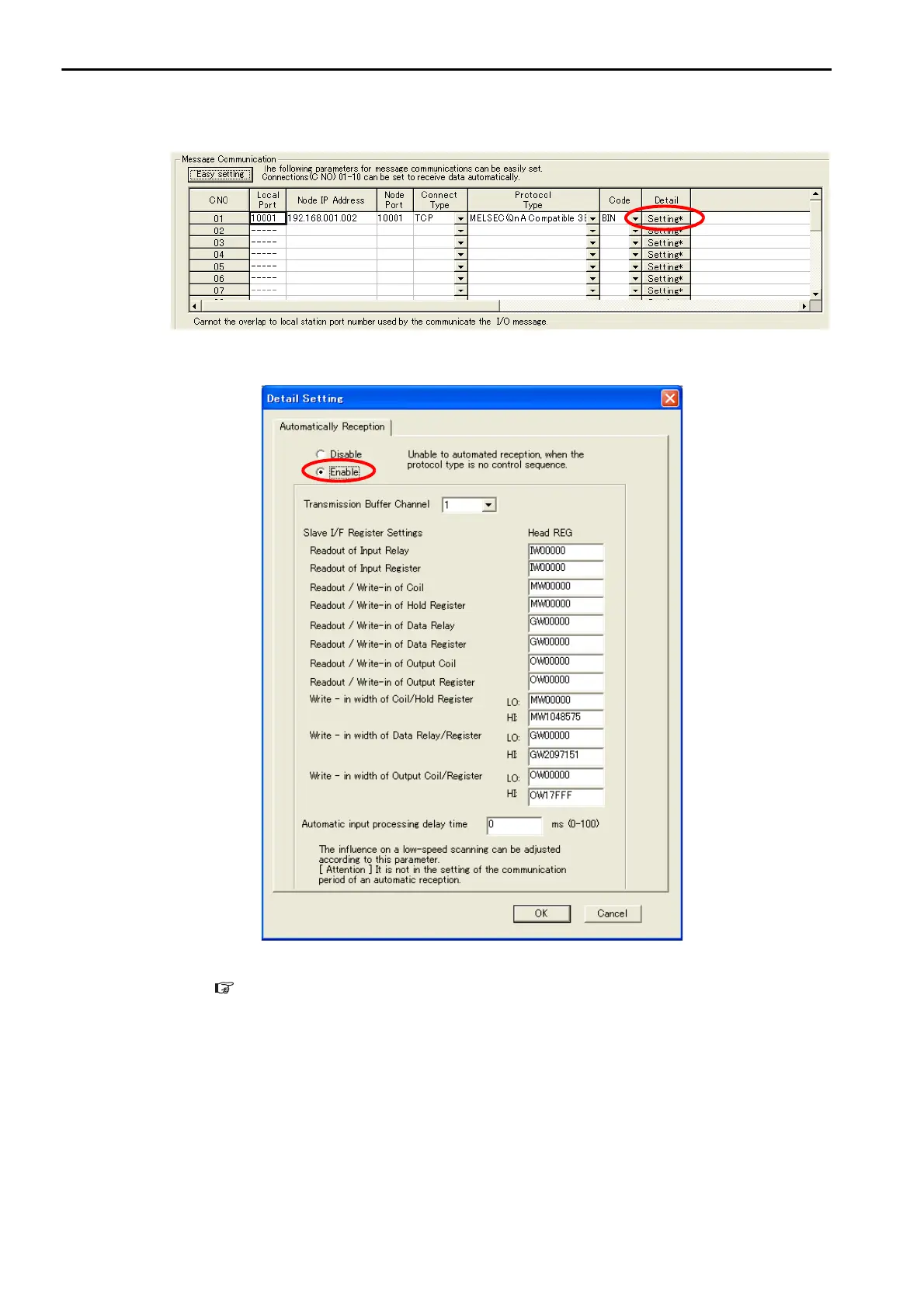

7. Check the settings and double-click the Setting Button in the Detail Column.
8. Select the Enable Option in the Automatically Reception Tab Page and then click the OK Button.
Note: 1. Refer to the following section for details on automatic reception,
2.2 Detail Definition Setting Procedures (page 2-6)
2. Disable automatic reception for any connection for which message functions (MSG-SNDE and MSG-
RCVE) are used. If message functions are used while automatic reception is enabled, the communications
will not function properly.
9. Save the data to flash memory.
Note: Changes made to the communications or connection parameters will become effective only after the changes
have been saved to flash memory and the power supply has been cycled.
This concludes the settings for using the MP3000 as a slave.
