2.8 Communications with an OMRON PLC (FINS Communications Service)
Using Automatic Reception with the MP3000 as a Slave
2-191

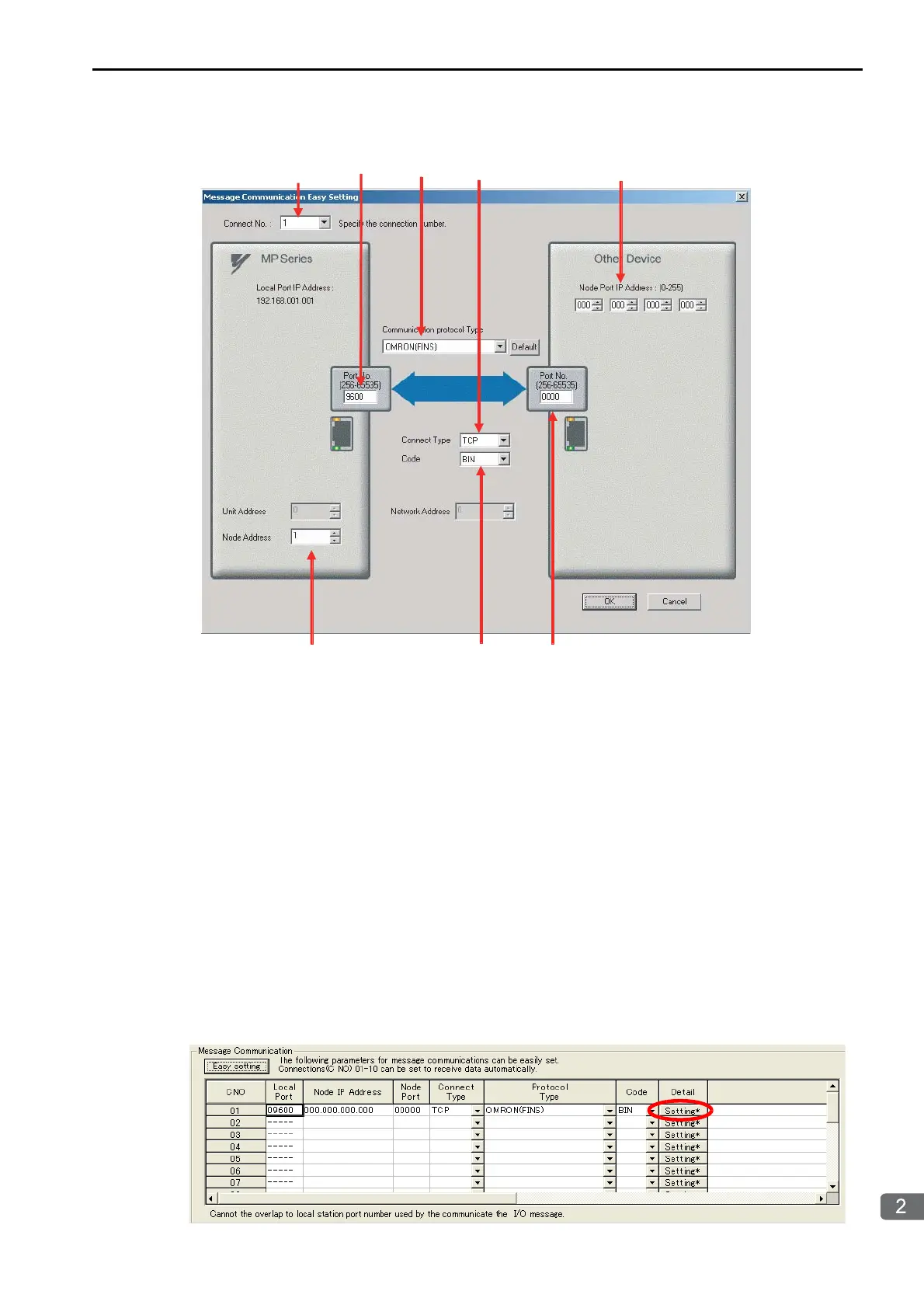

4. Set the connection parameters.
Select 1 in the Connect No. Box.
Enter “9600” in the Port No. Box for the MP-series Machine Controller.
Select OMRON (FINS) in the Communication Protocol Type Box.
Select TCP in the Connect Type Box.
Select BIN in the Code Box.
Enter “1” in the Node Address Box for the MP-series Machine Controller.
Enter the following address in the Node Port IP Address Boxes for the other device:
000.000.000.000.
Enter “0000” in the Port No. Box for the other device.
Note: The unit address and network address of the MP-series Machine Controller are always 00 hex.
If communicating with FINS/UDP, select UDP in the Connect Type Box.
5. Click the OK Button.
6. Click the Yes Button in the Transmission Parameters Confirmation Dialog Box.
Note: If parameters have already been set for the same connection number and you click the Yes Button in the
Transmission Parameters Confirmation Dialog Box, the settings will be overwritten by the parameters that are
set in the Message Communication Easy Setting Dialog Box.
7. Check the settings and double-click the Setting Button in the Detail Column.
To Next Page
