2.8 Communications with an OMRON PLC (FINS Communications Service)
Message Functions
2-232
 Connection Number (PARAM10)
Specify the remote station.
If the communications device is the 218IFD, enter the connection number. The valid setting range is given
in the following table.

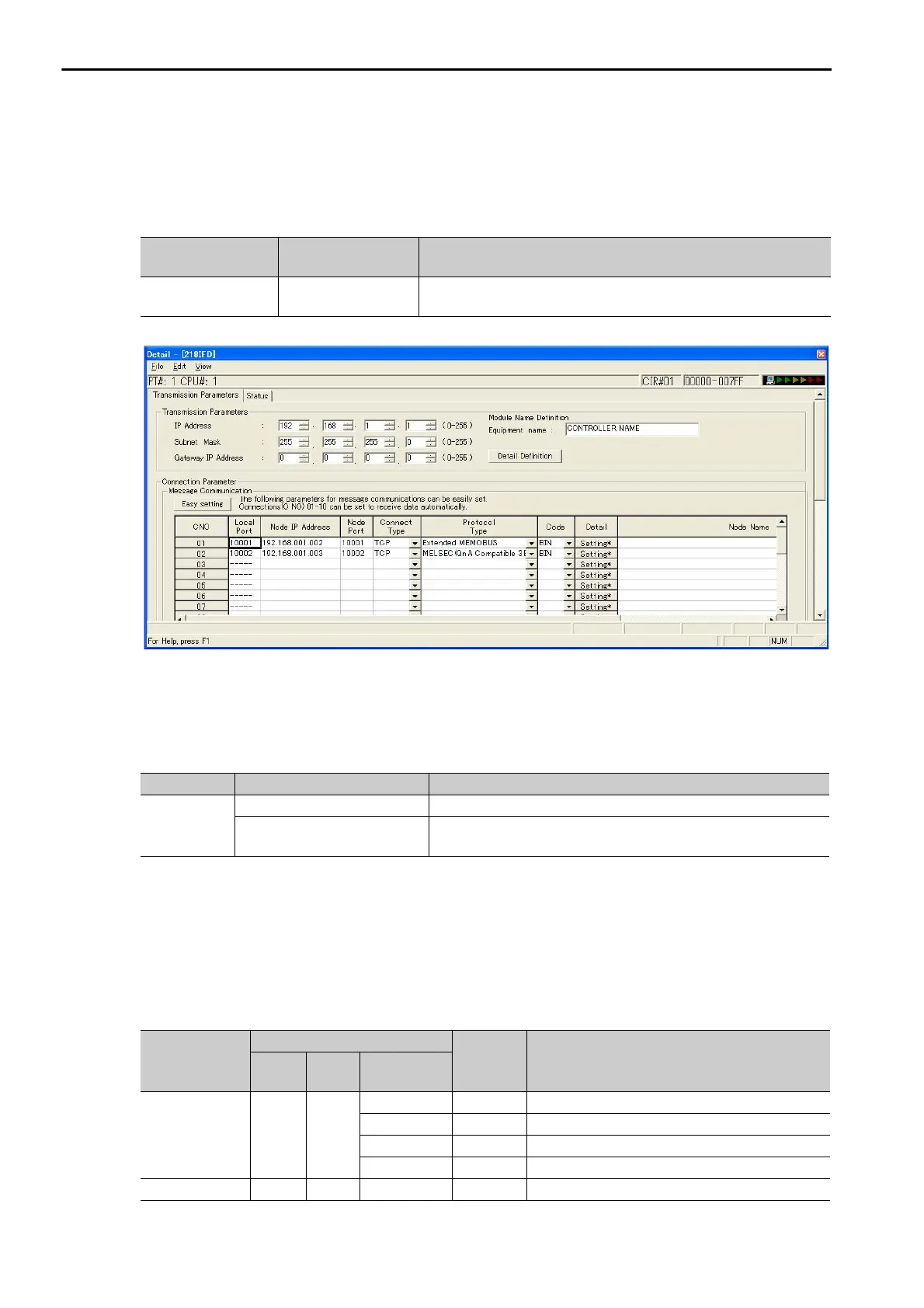

Note: Enter the same connection number as displayed in the 218IFD Detail Definition Dialog Box in the MPE720.
 Options (PARAM11)
The upper byte of this parameter sets the unit address, and the lower byte sets the remote node address.
The valid setting range is given in the following table.
Note: 1. The node address for the MP3000 is set with the Connection Parameter setting in the Module Detail Definition
Dialog Box.
2. The MP3000 unit address is always 00 hex.
 Function Code (PARAM12)
Set the function code to send.
You can use the functions that are registered to the function codes.
Communications
Device
Connection
Number
Description
218IFD 1 to 20
Specifies the connection number of the remote station to send the
message to.
Option Address Number Description
XXYY hex
XX: Unit address Sets the remote unit address.
YY: Node address
Sets the remote node address. Sets the remote node address from
1 to FE hex (1 to 254).
MEMOBUS
Function Code
FINS Command Code
Target
Data
Type
Function
MR SR
I/O Memory
Type
01 hex 01 hex 01 hex
B0 hex W Reads CIO Area words.
B1 hex W Reads Work Area words.
B2 hex W Reads Holding Area words.
B3 hex W Reads Auxiliary Area words.
03 or 09 hex 01 hex 01 hex 82 hex W Reads DM Area words.
Continued on next page.
