2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-SNDE Function with the MP3000 as the Master
2-282
Setting Example

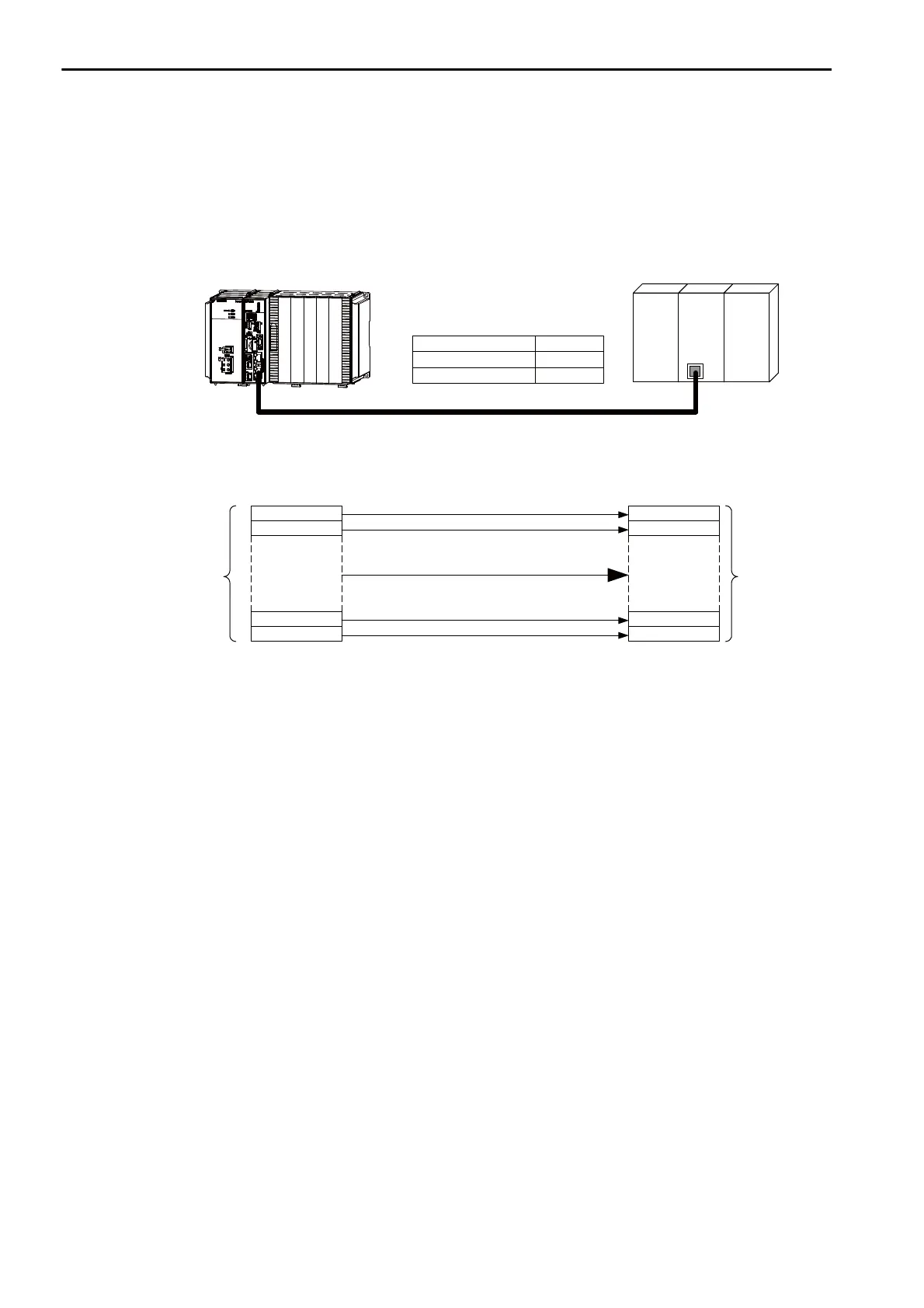

The following figure illustrates how the contents of the 300 words from the MW30000 to MW30299 hold
registers in the MP3000 master are written to the 5802 to 5A59 file memory addresses in the JTEKT PLC
slave.
Ethernet
EthernetEthernet
TOYOPUC
Binary
MP3000
(local station)
MW30000
MW30001
MW30299
5802
5804
5A58
MW30298
5A56
Port number: 1025
Port number: 1025
Local Station
Hold registers (M registers)
Written.
Remote Station
File memory
Data size:
300 words
Connection 5
Data size:
300 words
JTEKT PLC TOYOPUC
(remote station)
Master
Communications Protocol
Connection Type
Data Code
Slave
TCP or UDP
