2.10 Communications with a JTEKT PLC (TOYOPUC Protocol)
Using the MSG-SNDE Function with the MP3000 as the Master
2-284

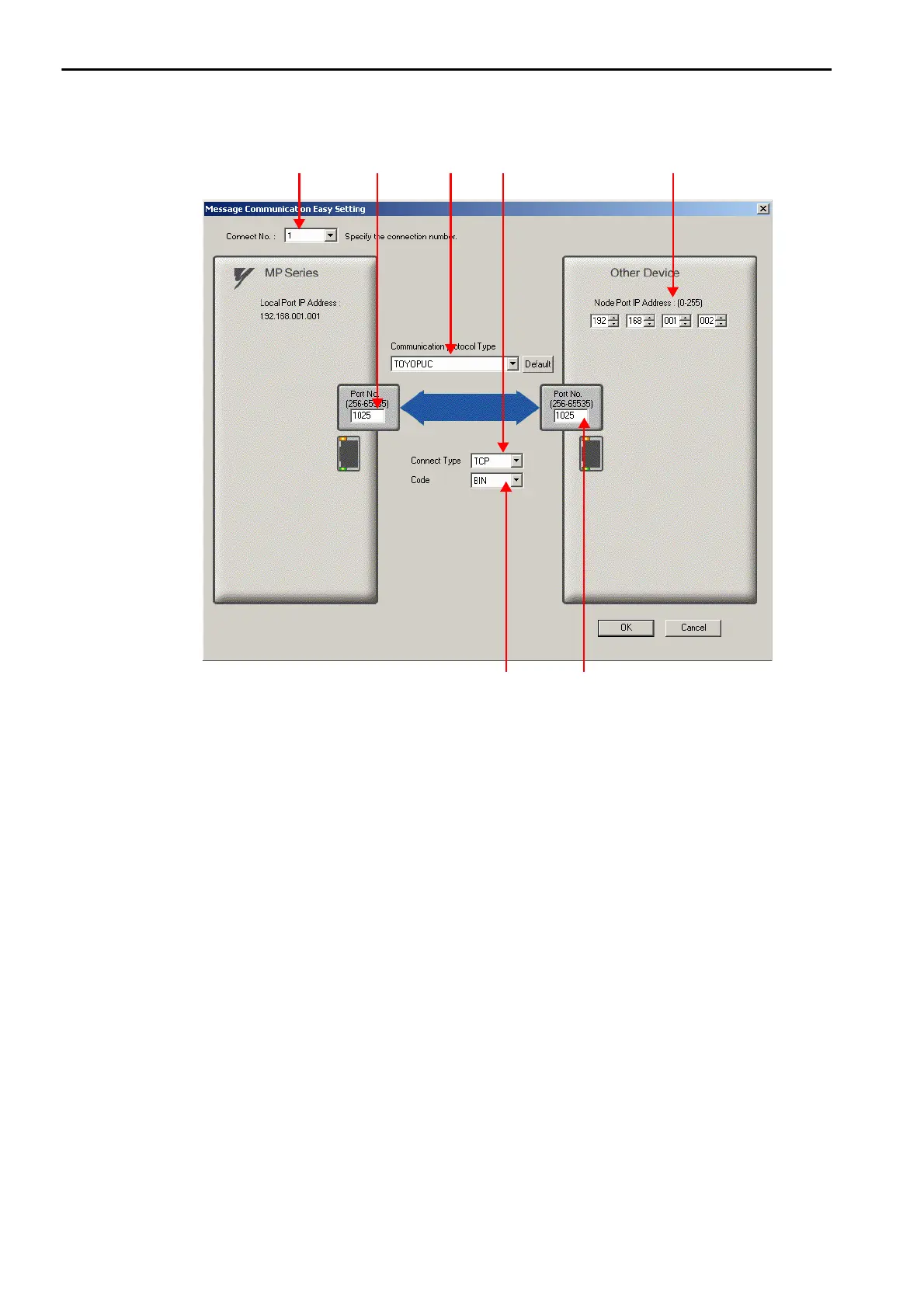

4. Set the connection parameters.
Select 1 in the Connect No. Box.
Enter “1025” in the Port No. Box for the MP-series Controller.
Select TOYOPUC in the Communication Protocol Type Box.
Select TCP in the Connect Type Box.
Select BIN in the Code Box.
Enter the following address in the Node Port IP Address Boxes for the other device:
192.168.001.002.
Enter “1025” in the Port No. Box for the other device.
Note: 1. Disable automatic reception for any connection for which message functions (MSG-SNDE and MSG-
RCVE) are used. If message functions are used while automatic reception is enabled, the communica-
tions will not function properly.
2. If the MP3000 is the master, or the client in the connection, specify a full passive connection by setting the
IP address and port number for the remote device to non-zero values.
3. If communicating by UDP, select UDP in the Connect Type Box.
5. Click the OK Button.
6. Click the Yes Button in the Transmission Parameters Confirmation Dialog Box.
Note: If parameters have already been set for the same connection number and you click the Yes Button in the Trans-
mission Parameters Confirmation Dialog Box, the settings will be overwritten by the parameters that are set in
the Message Communications Easy Setting Dialog Box.
To Next Page
