2.2 Detail Definition Setting Procedures
218IFD Detail Definition Dialog Box Details
2-13

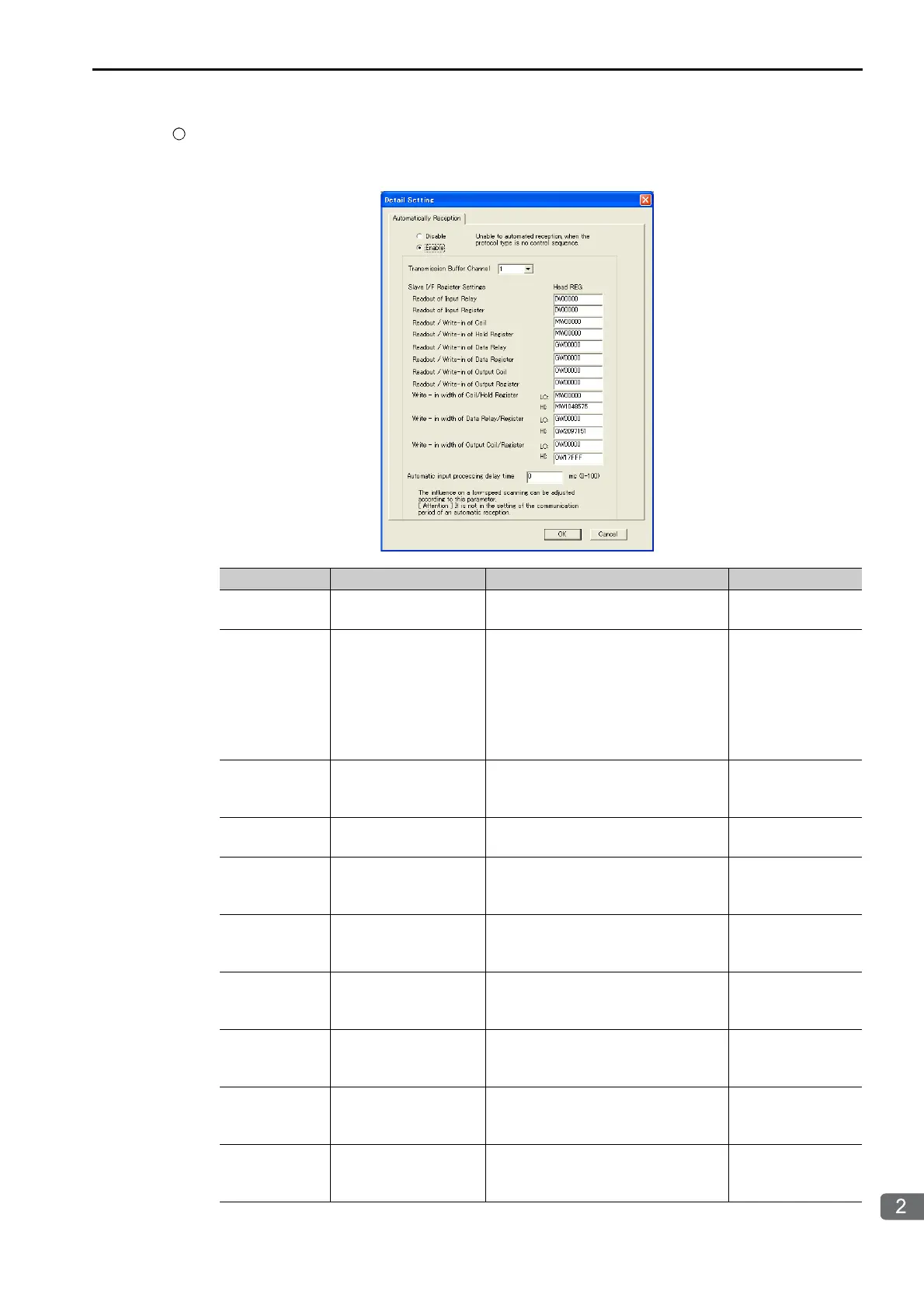

Detail
This button displays the Detail Setting Dialog Box to set the automatic reception settings. If the FINS
protocol is selected, set the local station for the FINS protocol.
Item Setting Range Description Default
Disable/Enable Enable or Disable
Sets whether to enable automatic
reception.
Disable
Communica-
tions Buffer
Channel (Trans-
mission Buffer
Channel)
1 to 10
Sets the buffer channel for Ethernet
communications to use when auto-
matic reception is executed. Connec-
tions and channel numbers may be
used in any combination.
Note: Do not assign a number that is
already used for another connection.
Same as the connec-
tion number
Readout of
Input Relay
IW00000 to IW17FFF
Sets the first register for the input
relays that are used with automatic
reception.
IW00000
Readout of
Input Register
IW00000 to IW17FFF
Sets the first register for input registers
that are used with automatic reception.
IW00000
Readout/Write-
in of Coil
MW00000 to
MW1048576
Sets the first register for reading/writ-
ing coils that are used with automatic
reception.
MW00000
Readout/Write-
in of Hold Reg-
ister
MW00000 to
MW1048576
Sets the first register for reading/writ-
ing hold registers that are used with
automatic reception.
MW00000
Readout/Write-
in of Data Relay
GW00000 to
GW2097151
Sets the first register for reading/writ-
ing data relays that are used with auto-
matic reception.
GW00000
Readout/Write-
in of Data Reg-
ister
GW00000 to
GW2097151
Sets the first register for reading/writ-
ing data registers that are used with
automatic reception.
GW00000
Readout/Write-
in of Output
Coil
OW00000 to OW17FFF
Sets the first register for reading/writ-
ing output coils that are used with
automatic reception.
OW00000
Readout/Write-
in of Output
Register
OW00000 to OW17FFF
Sets the first register for reading/writ-
ing output registers that are used with
automatic reception.
OW00000
Continued on next page.
