2.4 Communications with MP-series Controllers
Using the MSG-SNDE Function with the MP3000 as the Master
2-57
Setting Up the Other Device (MP2300) to Connect
Use the following procedure to set up the MP2300.
1.

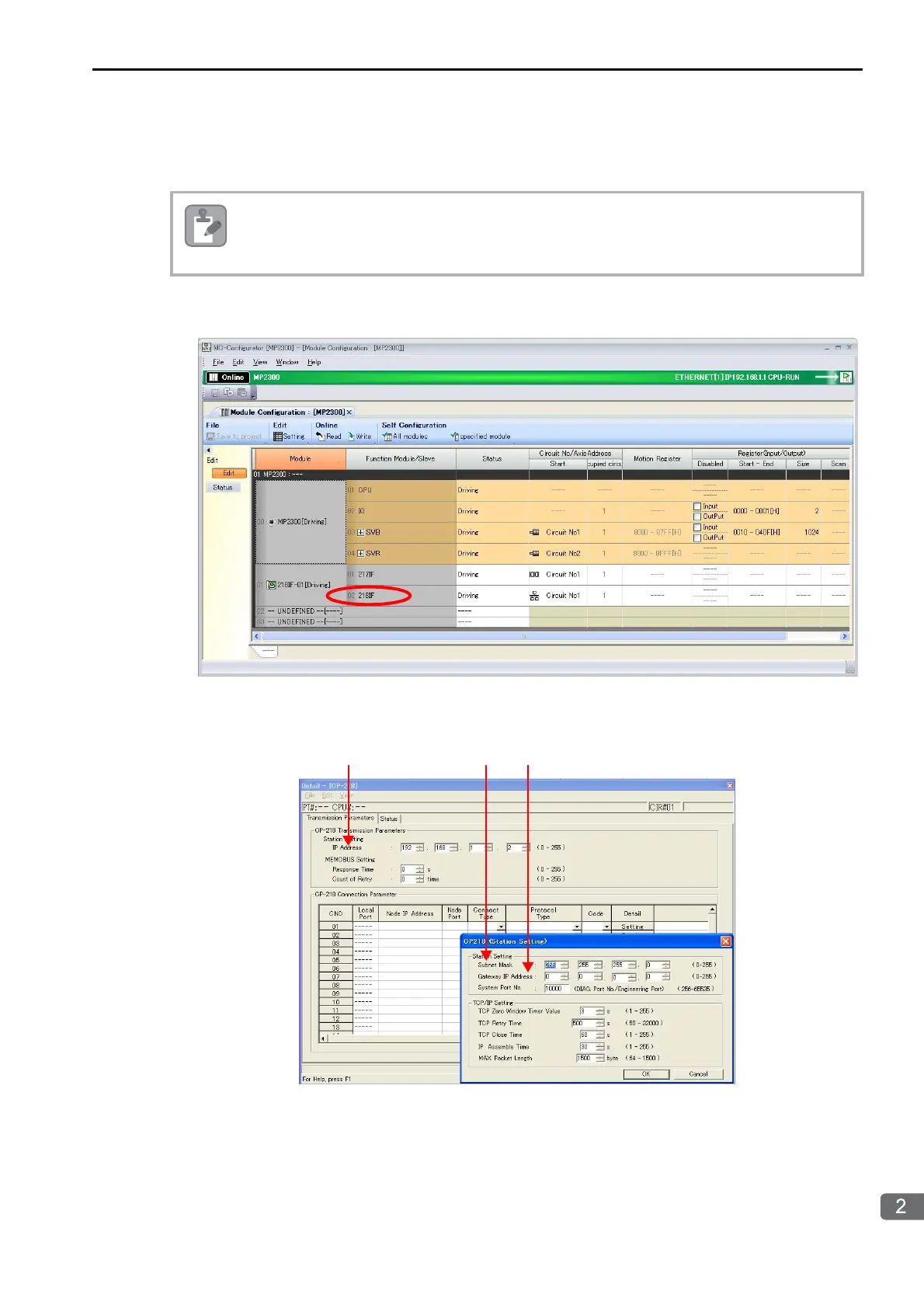

Double-click the cell for
218IF
in the
Module Details
Area of the Module Configuration Definition Tab
Page.
The 218IF Detail Definition Dialog Box will be displayed.
2. Set the communications parameters.
In the IP Address Boxes, enter the following address: 192.168.001.002.
Select Edit − Local Station: TCP/IP Setting in the Engineering Manager Window.
In the Subnet Mask Boxes, enter the following mask: 255.255.255.000.
In the Gateway IP Address Boxes, enter the following address: 000.000.000.000.
If the communications parameters (IP address and subnet mask) have already been set, skip to step 3.
To Next Page
