3.2 Function Modules
3.2.5 Data Logging
3-70
11.

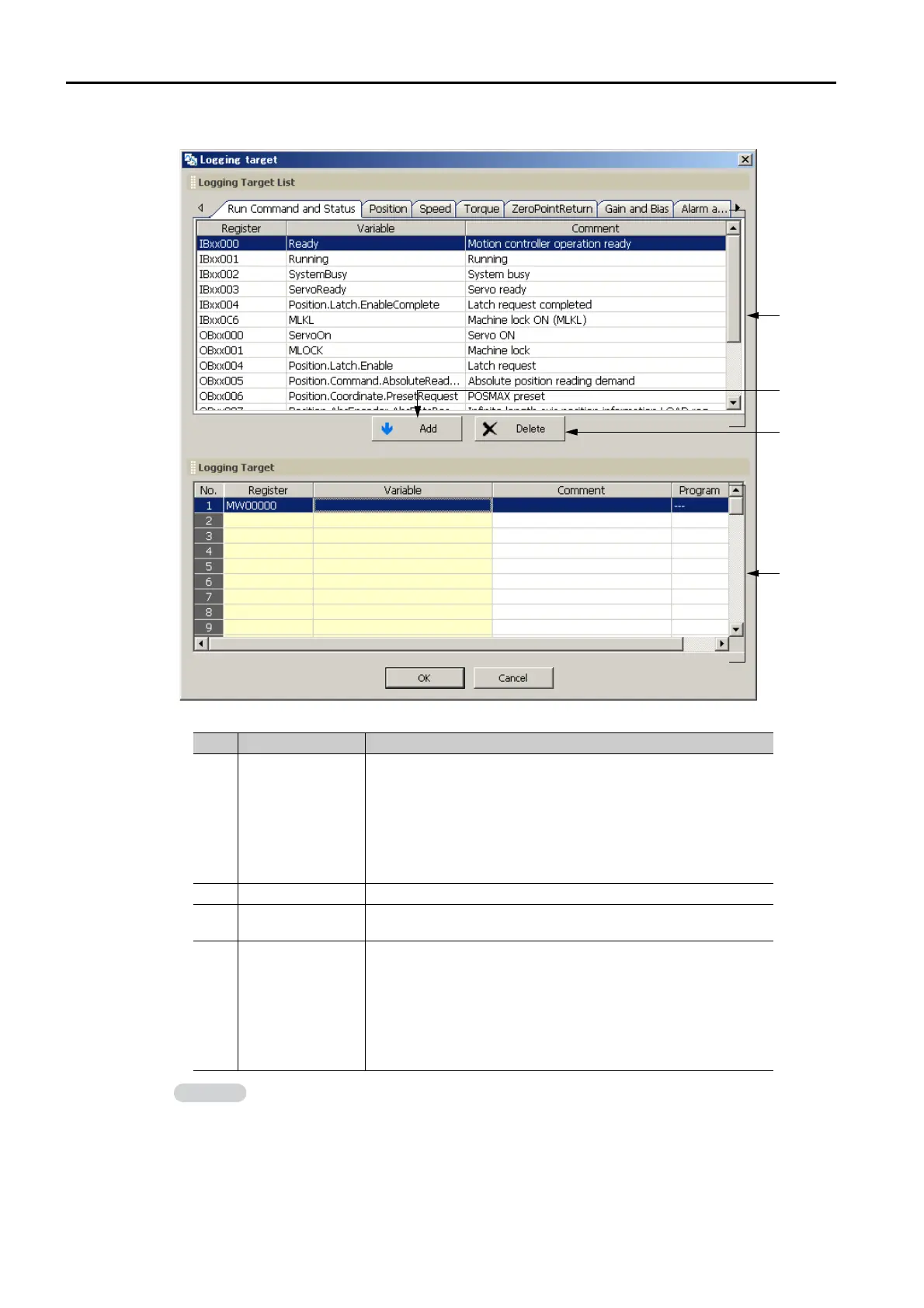

Add the registers to log.
No. Item Description
Logging Target
List
Displays a list of the registers that can be selected for logging.
• Right-click in the Logging Target List to display the pop-up
menu to select or deselect registers.
Add to Trace adds the selected register to the Trace Target
List.
Clear deselects multiple registers that were selected by using
the Shift or the Ctrl Keys.
Select All selects all registers shown on the tab page.
Add Button Adds the selected register to the list of registers to be logged.
Delete Button
Removes the selected registers from the list of registers to be
logged.
Logging Target
Displays a list of the registers that will be logged. Registers can
be added to this list either by selecting them from the Logging
Target List or by entering them directly.
• Right-click in the Logging Target Area to display a pop-up
menu to edit the registers to be logged.
Insert Row inserts a blank row.
Delete Row deletes a row. If a logging target was added,
then it will be deleted.
The following register types can be logged.
• S, M, G, I, O, and D registers
