YASKAWA MP3300 series User Manual

3.2 Function Modules
3.2.5 Data Logging
3-78
 Binary File Format

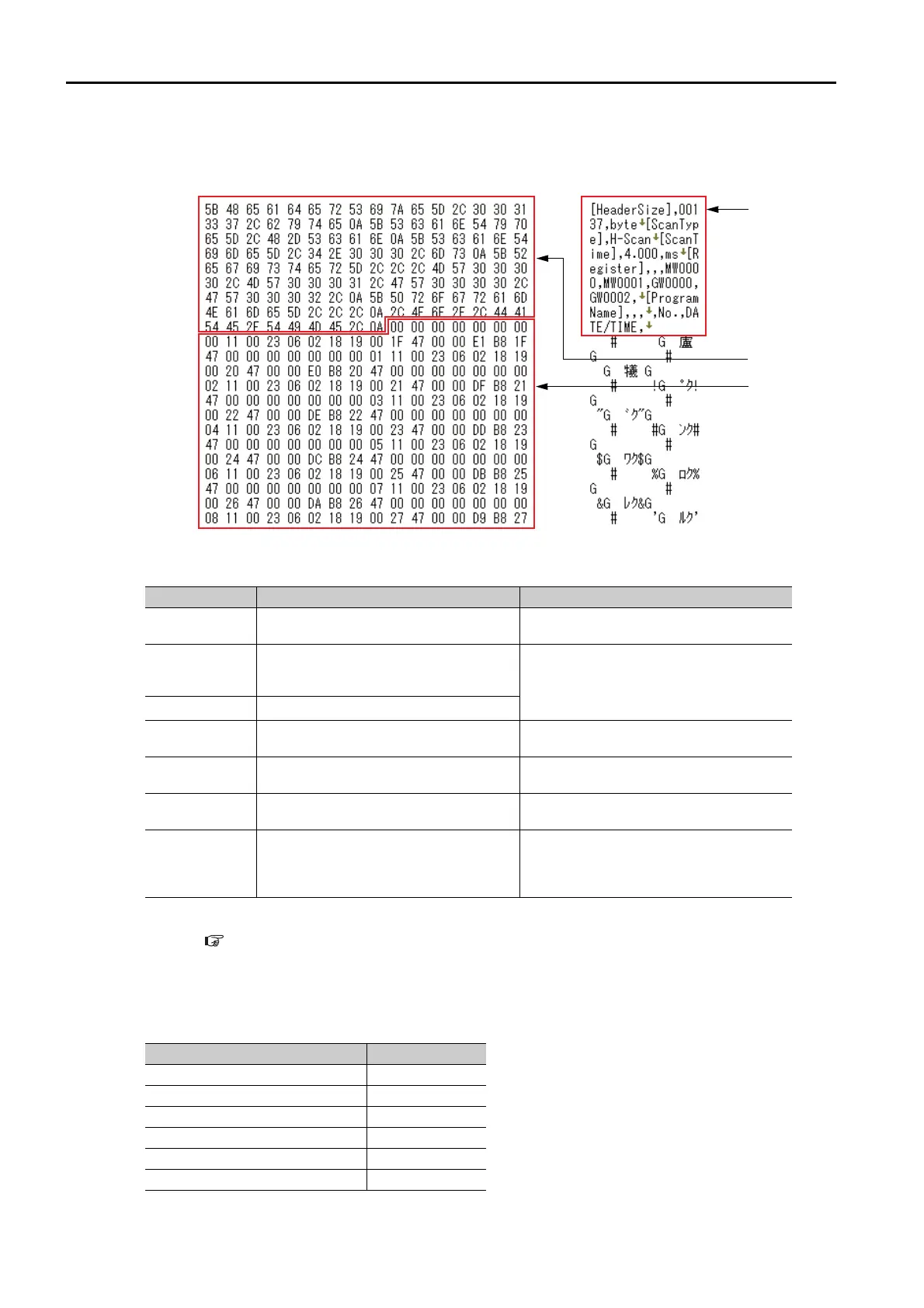

This example shows how log data that was stored in the binary format appears when it is
opened in a text editor.
 Header
The header is given in ASCII characters.
* These items may not be given depending on the settings in the MPE720. Refer to the following section
for details.
Operating Procedure on page 3-66
 Bit Pattern of Header Information
 Register Data
The register data is displayed here. The volume of data depends on the data types of the
registers.
Item Description Corresponding Item in MPE720
HeaderSize
Gives the size of the header that is
appended to the file.
−
ScanType
*
The type of scan where the data was
obtained (high-speed scan or low-speed
scan) is displayed.
Sampling period on the Format Dialog
Box.
ScanTime
*
Gives the data sampling period.
Register
*
Gives the registers specified in the data
settings.
Registered register name on the For-
mat Dialog Box.
ProgramName
*
Gives the program name specified in the
data settings.
Program on the Format Dialog Box.
No.
*
Gives the number of the data that was
sampled.
Data No. on the Format Dialog Box.
DATE/TIME
*
Gives the time down to the seconds
when the data was sampled.
This is a running value from 1970, which
is the lower limit of the calendar setting.
DATE/TIME on the Format Dialog Box.
Data Type Data Size
B: bit 2 bytes
W: integer 2 bytes
L: double-length integer 4 bytes
Q: quadruple-length integer 8 bytes
F: single-precision real number 4 bytes
F: double-precision real number 8 bytes



