3.2 Function Modules
3.2.7 File Transfer
3-92
8.

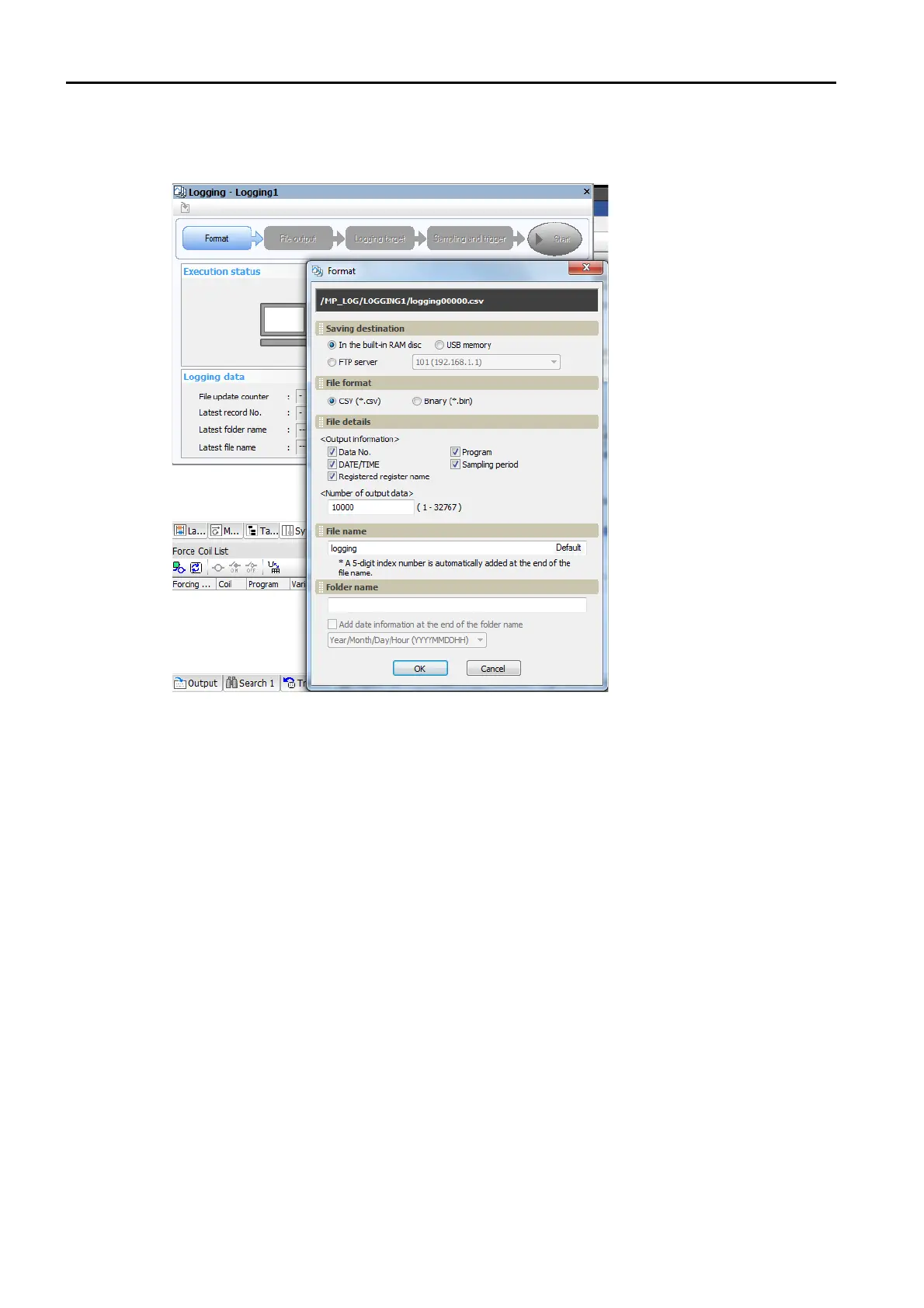

In the Format Dialog Box for the logging 1 or logging 2 settings, select the FTP server
Option for the saving destination and select the ID number that you set in the FTP
Server Details Dialog Box.
Note: 1. The file that is set in the File name Area will be transferred. It will be written to the FTP server using the
same file name.
2. If you select an FTP server as the destination, the built-in RAM disk that is specified for the folder name is
used as a temporary area.
9.
Make the other settings for logging.
10.
Click OK Button.
11.
Save the data to flash memory as required.
12.
Execute the logging.
When the specified number of output data has been logged and the file is ready, the file will be trans-
ferred to the FTP server.
To Next Page
