3.2 Function Modules
3.2.3 Motion Control Function Modules (SVC, SVC32, SVR, and SVR32)
3-49
3
CPU Module Functionality
4.

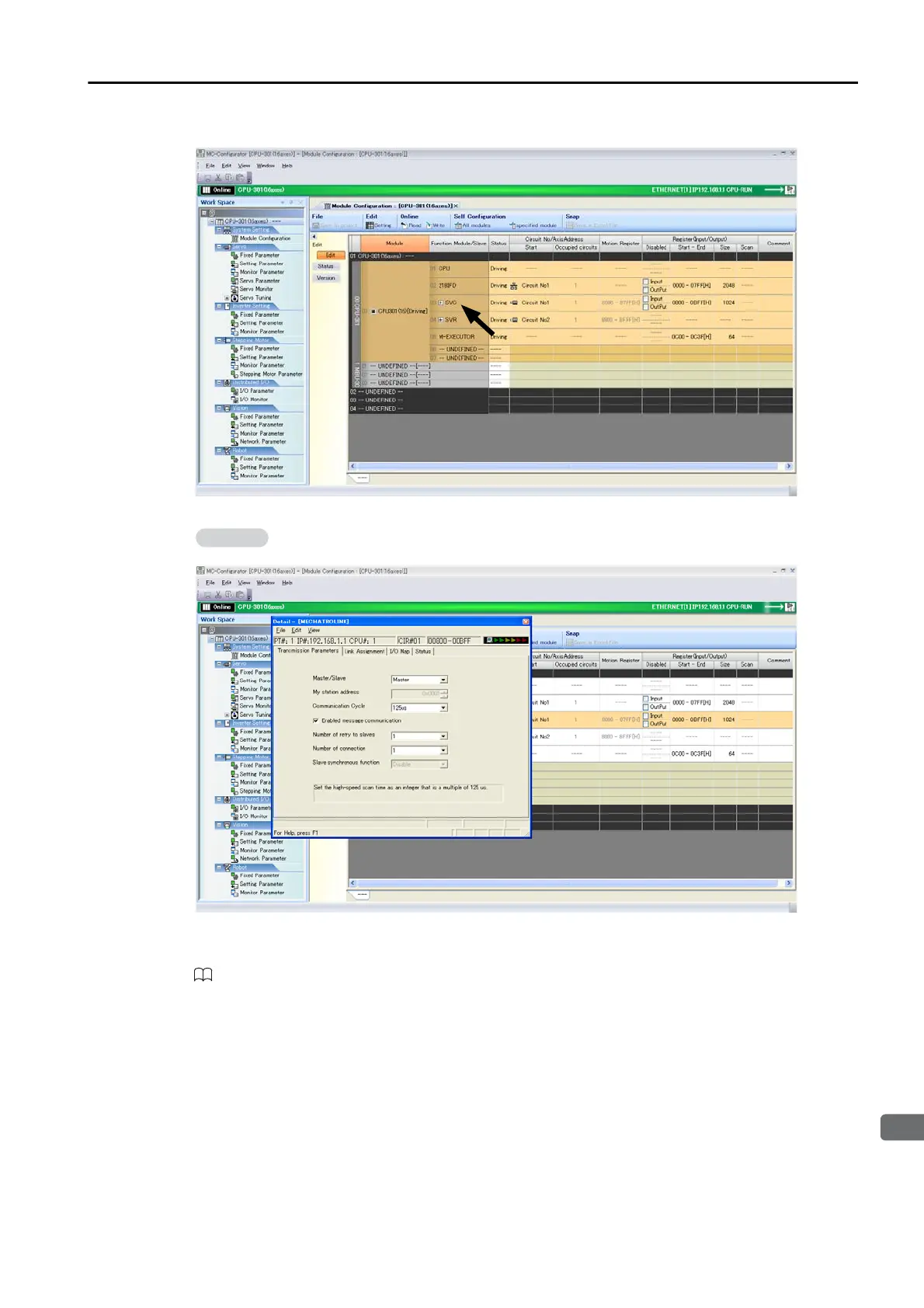

Double-click the SVC/SVC32 cell in the Module Configuration Definition Tab Page.
The MECHATROLINK Communications Definition Dialog Box is displayed.
5.
Set the MECHATROLINK communications definitions as required.
Refer to the following manual for details on settings.
MP3000 Series Motion Control User’s Manual (Manual No.: SIEP C880725 11)
6.
Click the Close Button on the MECHATROLINK Communications Definition Dialog Box.
If more than one Module is mounted, select the Module to be checked or set.
