2.3 Σ-III Series SERVOPACKs and Applicable Servomotors
* The rated speed of servomotor model SGMCS-25D and SGMCS-35E is 150 min
-1
.
Note: Models with gears are available (excluding SGMCS).

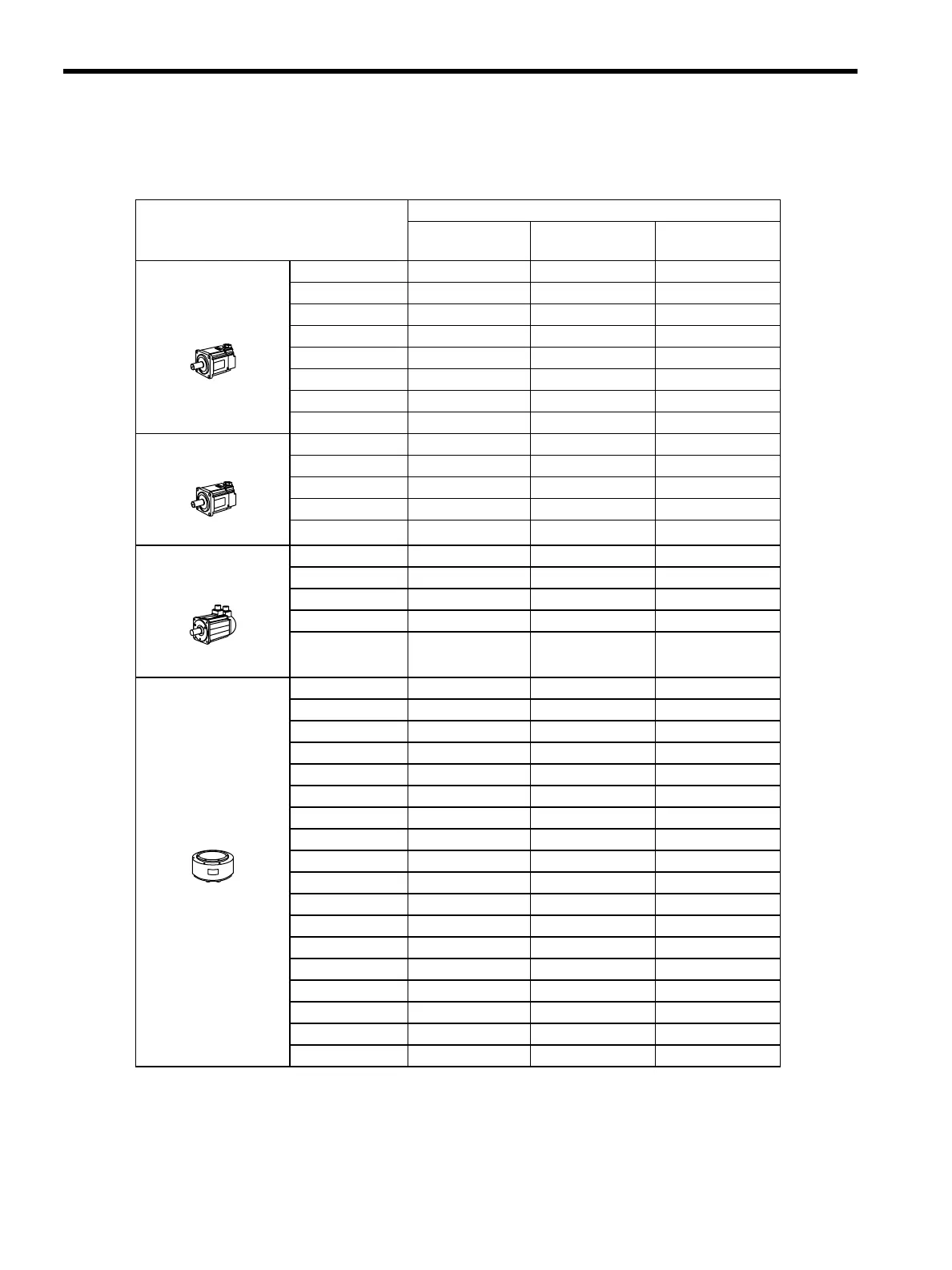

Table 2.1 SERVOPACKs and Applicable Servomotors
Σ-III Series SGMS servomotor
Σ-III Series SGDS SERVOPACK
Single-phase
100 VAC
Single-phase
200 VAC
Three-phase
200 VAC
SGMAS
(Super High Power
Capacity)
3000min
-1
8 models
A5A (50 W)
A5F A5A −
01A (100 W)
01F 01A −
C2A (150 W)
02F 02A −
02A (200 W)
02F 02A −
04A (400 W)
04F 04A −
06A (600 W)
− 08A −
08A (750 W)
− 08A −
12A (1.15 kW)
− − 15Α
SGMPS
(Flat Type)
3000min
-1
5 models
01A (100 W)
01F 01A −
02A (200 W)
02F 02A −
04A (400 W)
04F 04A −
08A (750 W)
−
08A −
15A (1.5 kW)
−
− 15Α
SGMSS
(Super High Power
Capacity)
3000min
-1
5 model
10A ( 1.0 kW)
−−10A
15A (1.5 kW)
−−15A
20A (2.0 kW)
−−20A
25A (2.5 kW)
−−30A
30A (3.0 kW)
−−30A
SGMCS
(Direct Drive)
200min
-1
9 models
150min
-1
8 models
02B (42 W)
02F 02A −
05B (105 W)
02F 02A −
07B (147 W)
02F 02A −
04C (84 W)
04F 04A −
08D
04F 04A −
10C (209 W)
04F 04A −
14C (293 W)
04F 04A −
08C (168 W)
04F 04A −
17D (356 W)
04F 04A −
25D (393 W)∗
04F 04A −
16E (335 W)
− 08A −
35E (550 W)∗
− 08A −
45M
−−10A
80M
−−15A
1AM
−−20A
80N
−−15A
1EN
−−30A
2ZN
−−30A
