YASKAWA SGMSS - Crimp Type (Option)

4.2 Connectors for Main Circuit, Control Power Supply, and Servomotor Cable
4-5
4

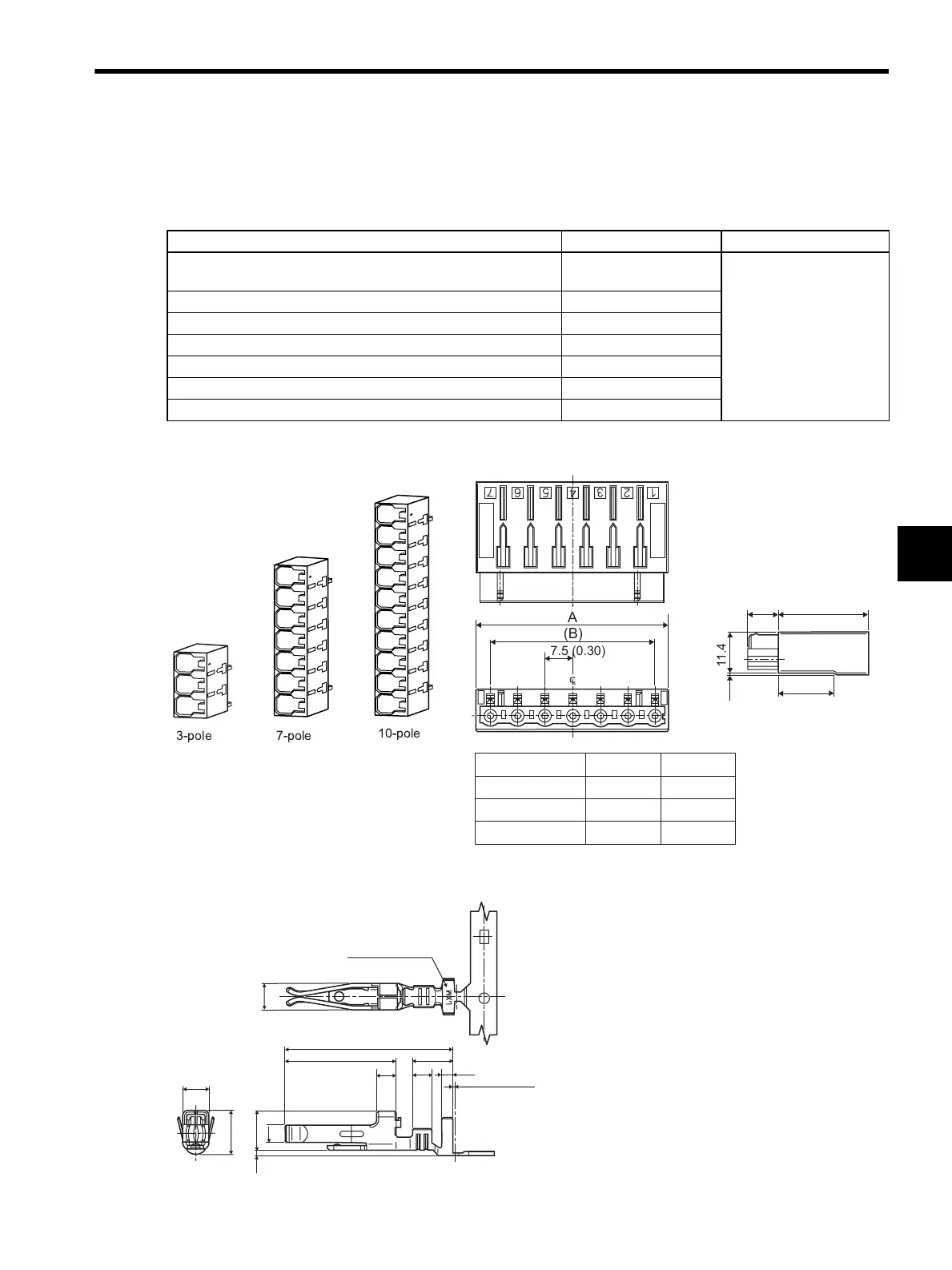

4.2.2 Crimp Type (Option)
The crimp type connectors are options. Contact the manufacturer for details.
(1) Connector Types
(2) External View and Dimensions
(3) Plugs (Chained/Detached)
Appearance Types Manufacturer
3-pole (For servomotor main circuit cable connector at
SERVOPACK end)
51241-0311
Molex Japan Co., Ltd.
7-pole (For 50 to 400 W SERVOPACKs)
51241-0711
10-pole (For 750 kW to 1.5 kW SERVOPACKs)
51241-1011
Plug (chained)
56125-0018
Plug (detached)
56125-0118
Crimping tool
57349-5300
Pull tool
57349-6000
3-pole
7-pole
10-pole
(B)
A
7.5 (0.30)
11.4 (0.45)
0.5 (0.02)
8.5 (0.33)
15.3 (0.60)
25 (0.98)
Pitch
The Number of Poles
Dimension A
3 22.8 (0.90)
Dimension B
15 (0.59)
7 52.8 (2.08) 45 (1.77)
10
75.3 (2.96)
67.5 (2.66)
Units: mm (in)
4
Trademark
4 (0.16)
17.1 (0.67)
25.9 (1.02)
3.1
(0.12)
6.3 (0.25)
3
(0.12)
1.8 (0.07)
0.3 (0.01) min.
2.6 (0.10)
6.8 (0.27)
0.8 (0.03)
6 (0.24)
Cut-off type
Units: mm (in)
