4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.3.1 Standard Cables
4-6
4.3 CN1 Cables for I/O Signals
4.3.1 Standard Cables
(1) Cable Types

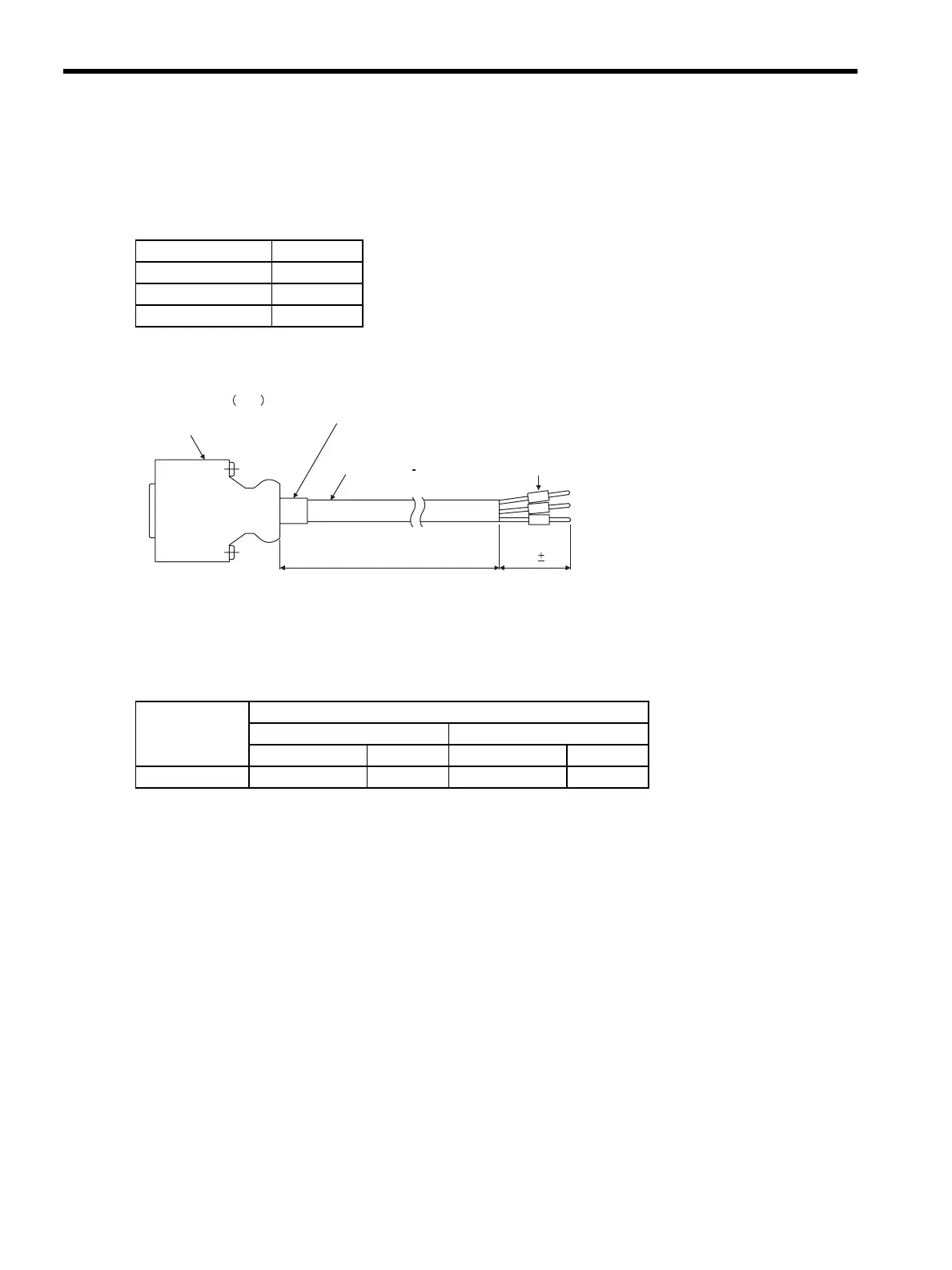

(2) Dimensional Drawings
4.3.2 Connector Type and Cable Size
Use the following connector and wire when customers assemble the cable. The connector CN1 includes a set of
case and a connector,
* Manufactured by Sumitomo 3M Ltd.
Cable Types Length (L)
JZSP-VJI01-1
1 m (3.28ft)
JZSP-VJI01-2
2 m (6.56ft)
JZSP-VJI01-3
3 m (9.84ft)
L
100
Sleeve F2 (black)
Units: mm (in)
Connector at SERVOPACK end
10126-6000EL 26P
Sumitomo 3M Ltd.
Shell: 10326-52A0-008
φ2.8 (φ0.11 in)
wire markers
Cable (black)
SSRFPVV-SBAWG#28 × 13P
UL20276VW
1SC
10
0
Connector Type
Connector Parts List
Case Connector
Type Qty Type Qty
JZSP-VJI9-1
10126-3000VE* 1 set 10326-52A0-008* 1
