4.3 CN1 Cables for I/O Signals
4-7
4

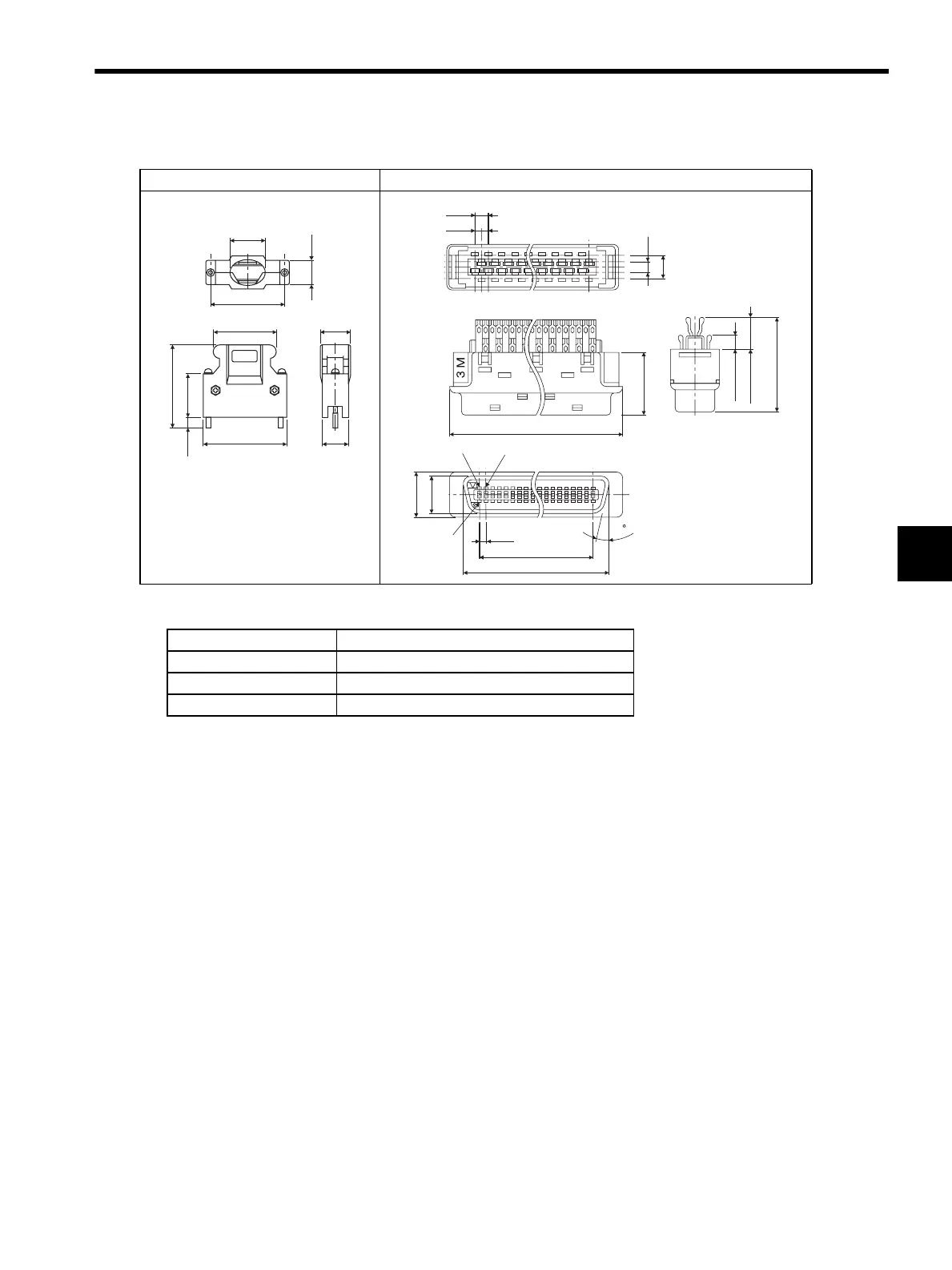

(1) Dimensional Drawings of Case
(2) Cable Size
Case dimensional drawing Connector dimensional drawing
Item Specifications
Cable Use twisted-pair or twisted-pair shielded wire.
Applicable wires AWG24, 26, 28, 30
Cable Finished Diameter φ16 mm (0.63 in) max.
37.2 (1.46)
12.7 (0.50)
25.8 (1.02)
31.3 (1.23)
12.0 (0.47)
14.0 (0.55)
Unit: mm (in)
39.0 (1.54)
23.8 (0.94)
5.7 (0.22)
10.0 (0.39)
2.54 (0.10)
1.27 (0.05)
Pin No.14
Pin No.1 Pin No.2
21.5 (0.84)
15.24 (0.60)
15
1.27 (0.05)
25.8 (1.02)
5.1 (0.20)
6.6 (0.26)
19.3 (0.76)
2.9 (0.11)
2.3 (0.09)
12.7 (0.50)
9.1 (0.36)
7.5 (0.30)
Units: mm (in)
