4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.4.1 Cables for Connecting Personal Computers
4-8
4.4 Peripheral Devices
4.4.1 Cables for Connecting Personal Computers
SGDS SynqNet does not support any connection to personal computers.

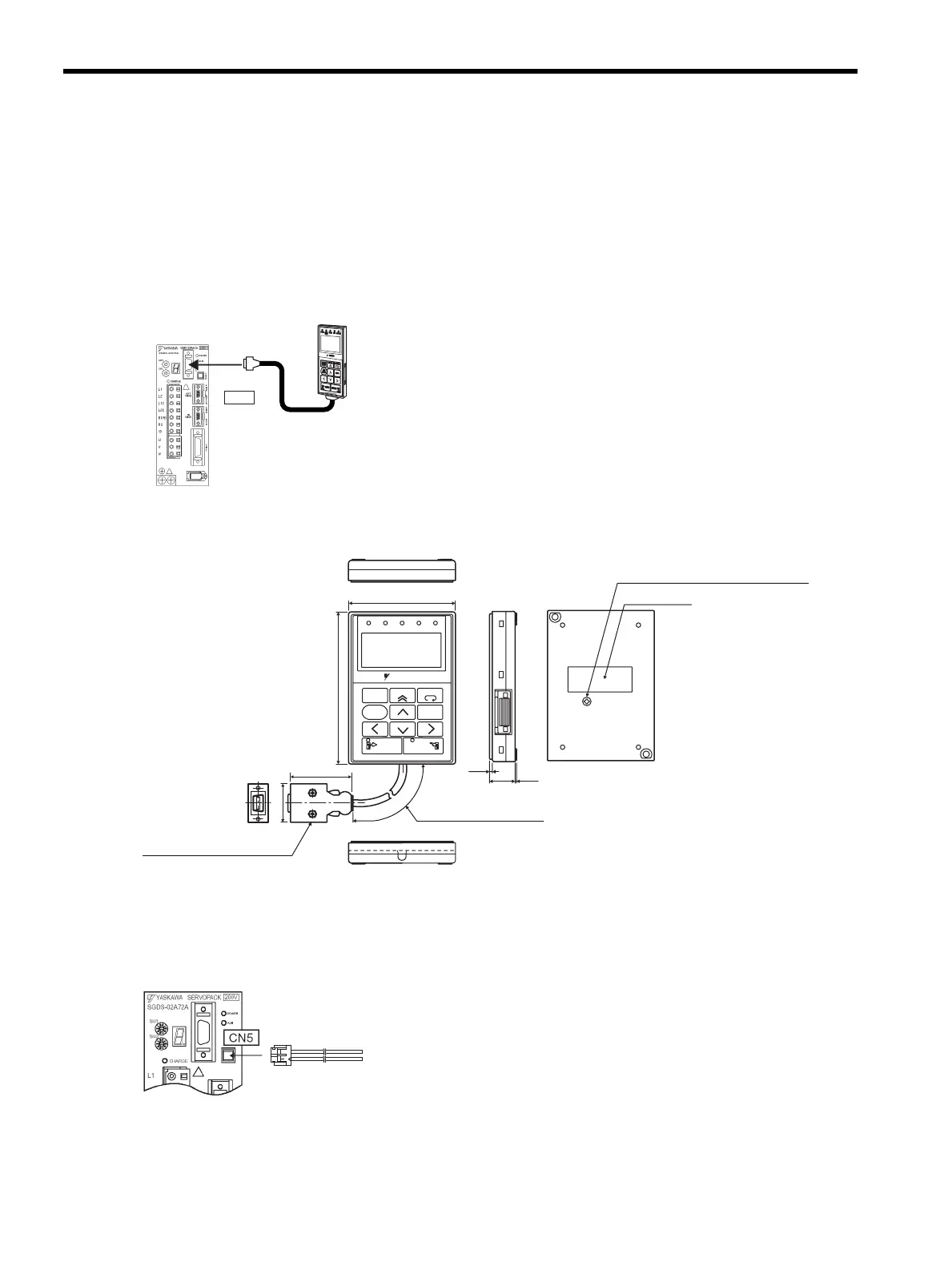

4.4.2 Digital Operator
(1) Model JUSP-OP05A with a 1m-connection Cable
(2) Dimensional Drawings
4.4.3 Cables for Analog Monitor
(1) Cable Type: JZSP-CA01
Connect the specified cables to CN5 connector for monitoring the analog monitor signals.
Connect
to CN3
SERVOPACK
Digital Operator
Plug: 10114-3000VE
Shell: 10314-52F0-008
1000
±30 (39.37±1.18)
70 (2.76)
120 (4.72)
SVON TGON
YASKAWA
MODE/SET
DATA
SCROLL
SERVO
DIGITAL OPERATOR JUSP-OP05A
READ WRITE
SERVO
ALARM
RESET
JOG
SVON
CHARGE REF
COIN
VCMP
1.5
(0.06)
17
(0.67)
0.8
(0.03)
P tight countersunk screw: 3 × 12
Tightening torque: 3.5Ncm
39 (1.54)
29.5 (1.16)
Nameplate
Units: mm (in)
Cable for Analog Monitor
