YASKAWA SGMSS - Brake Power Supply Unit

4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.4.5 Brake Power Supply Unit
4-10
(3) Dimensional Drawings of Cable
4.4.5 Brake Power Supply Unit
(1) Model: LPSE-2H01, LPDE-1H01
Manufactured by Yaskawa Controls Co., Ltd.
• 200 V input: LPSE-2H01
• 100 V input: LPDE-1H01
(2) Specifications
• Rated output voltage: 90 VDC
• Maximum output current: DC 1.0 A
• Lead wire length: 500 mm (19.69 in) each
Maximum ambient temperature: 60
°
C (140
°
F)
• Lead wires: Color coded. Refer to the following table.

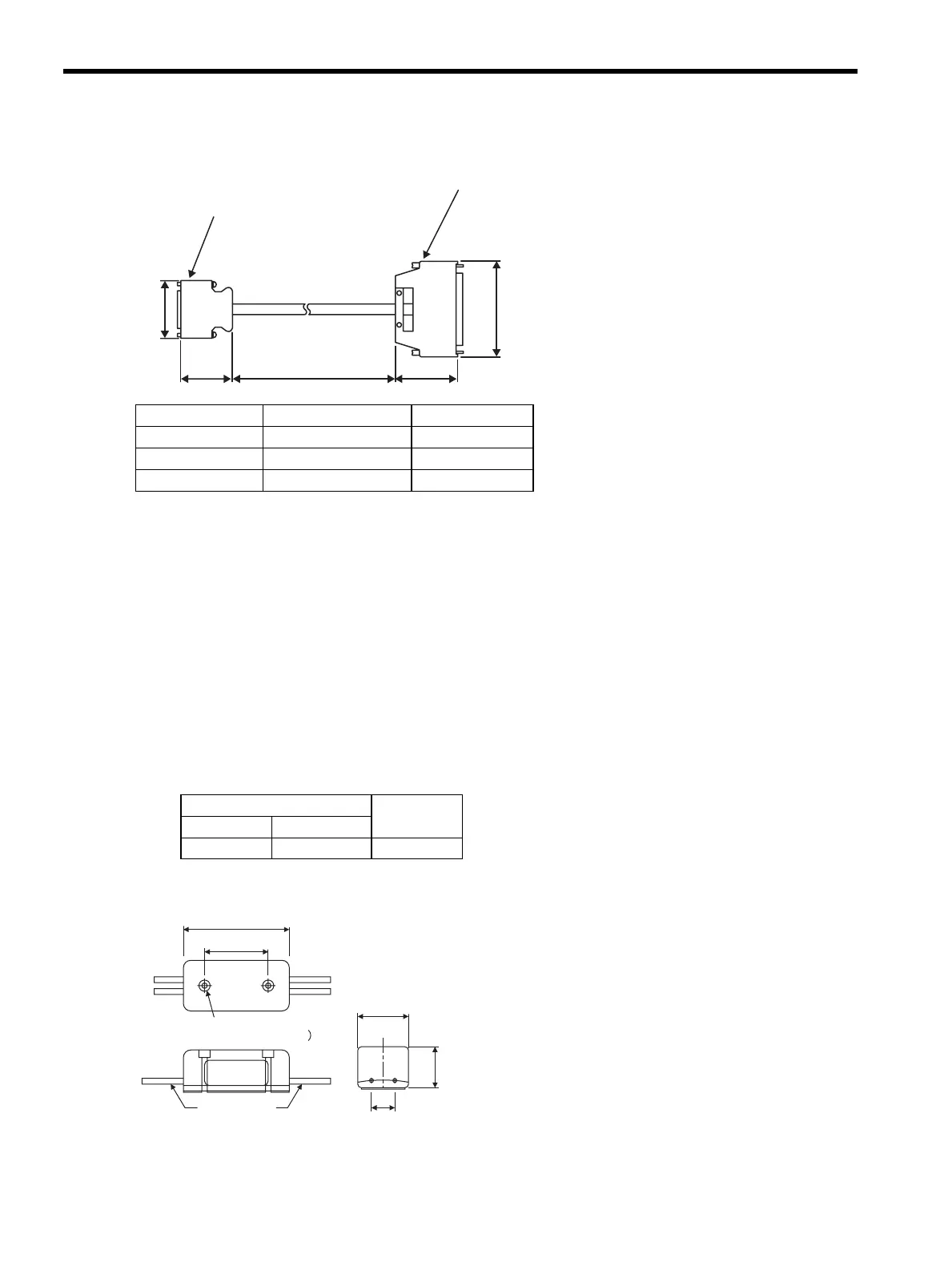

(3) Dimensional Drawings
Model Cable length (L) Approx.mass
JUSP-TA26P
500 mm (19.69 in) 100g (0.22 lb)
JUSP-TA26P-1
1000 mm (39.37 in) 200g (0.44 lb)
JUSP-TA26P-2
2000 mm (78.74 in) 400g (0.88 lb)
39 (1.54)
SERVOPACK end connector (26P)
Plug: 10126-6000EL
Cover: 10326-52AO-008
(Sumitomo 3M Ltd.)
Connector terminal block
Plug: FCN361J040-AU
Cover: FCN-360C040-B
(Fujitsu Ltd.)
47 (1.85)
37.2 (1.46)
73 (2.87)
L
AC input
Brake end
100 V 200 V
Blue/White Yellow/White Red/Blue
2 Mounting holes φ3
(Spot facing φ5.5 and 4 long
Lead wire
30 (1.18)
25 (0.98)
Units: mm (in)
Nameplate
50 (1.97)
11 (0.43)
20 (0.79)
