4 Specifications and Dimensional Drawings of Cables and Peripheral Devices
4.4.12 AC/DC Reactors for Harmonic Suppression
4-22

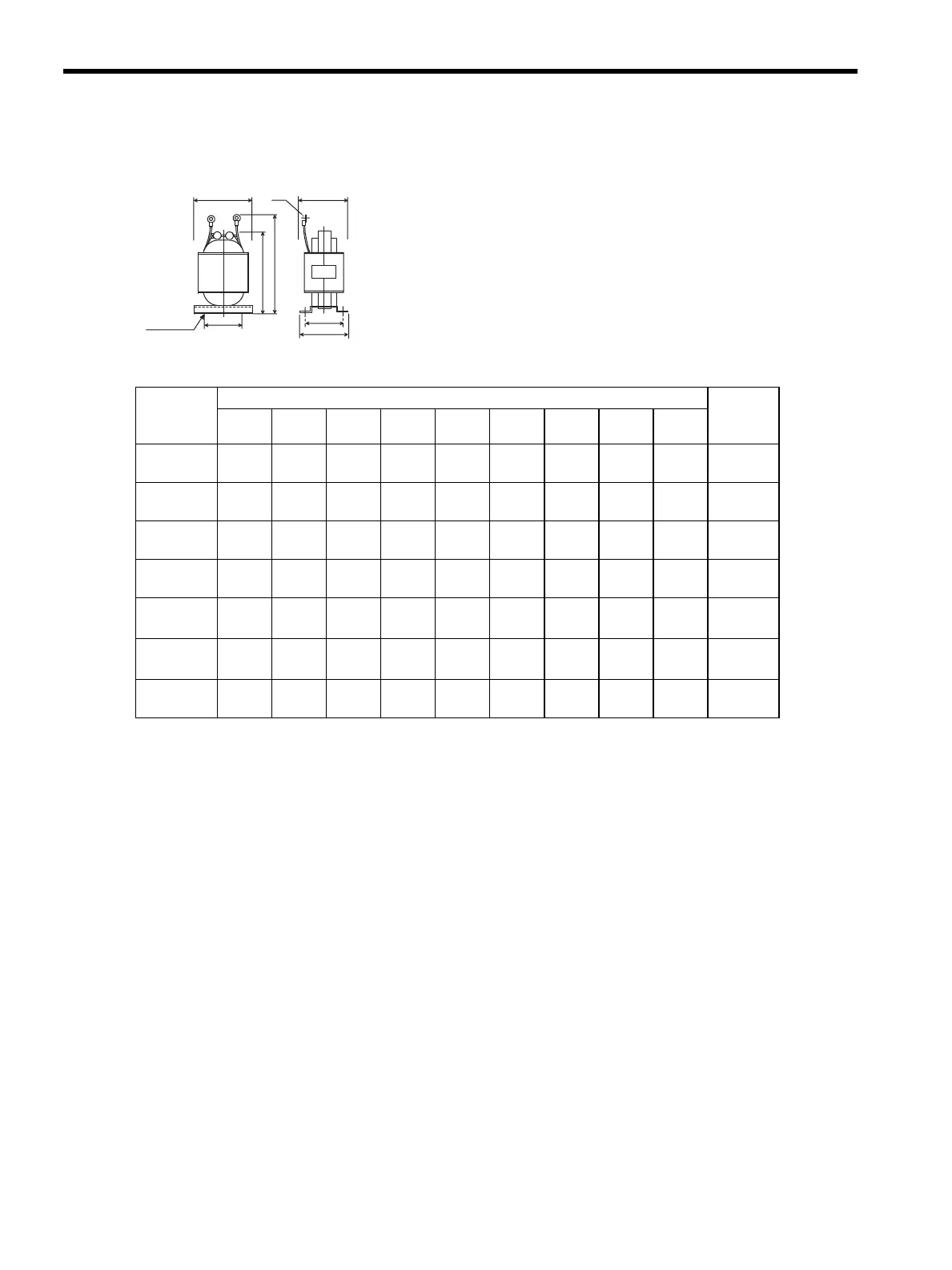

(2) Dimensional Drawings
Reactor
Model
Dimensions in mm (in) Approx.
Mass
kg (lb)
ABCDEFGφH φI
X5052
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.3
(0.17)
0.4
(0.88)
X5053
35
(1.38)
52
(2.05)
90
(3.54)
105
(4.13)
35
(1.38)
45
(1.77)
50
(1.97)
4
(0.16)
4.3
(0.17)
0.6
(1.32)
X5054
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.5
(0.18)
0.4
(0.88)
X5056
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
30
(1.18)
40
(1.57)
45
(1.77)
4
(0.16)
4.3
(0.17)
0.4
(0.88)
X5059
50
(1.97)
74
(2.91)
125
(4.92)
140
(5.51)
35
(1.38)
45
(1.77)
60
(2.36)
5
(0.20)
5.3
(0.21)
1.1
(2.43)
X5060
40
(1.57)
59
(2.32)
105
(4.13)
125
(4.92)
45
(1.77)
60
(2.36)
65
(2.56)
4
(0.16)
4.3
(0.17)
1.0
(2.20)
X5061
35
(1.38)
52
(2.05)
80
(3.15)
95
(3.74)
35
(1.38)
45
(1.77)
50
(1.97)
4
(0.16)
4.3
(0.17)
0.5
(1.102)
4-
φ
H
Notch
A
B
D
G
E
F
φ
I
1 2
NP
C
Units: mm (in)
