2 Mechanical Installation
YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide EN 15
ENGLISH

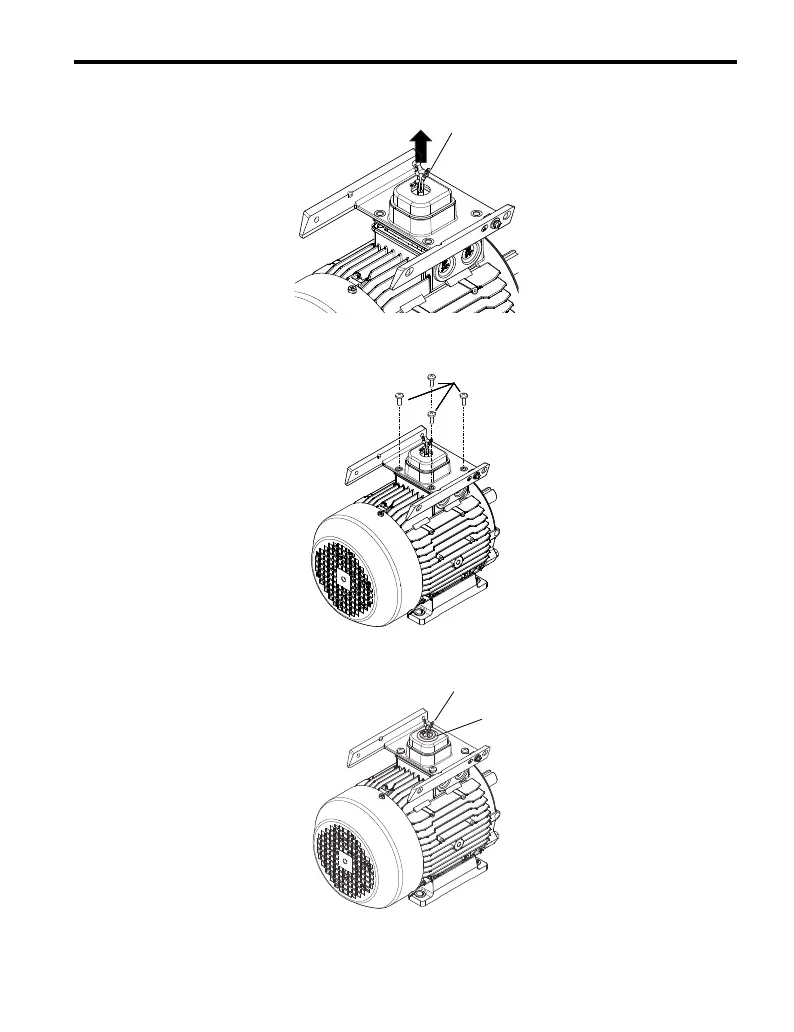

5. Feed the motor cables (D) and the earth cable through the opening in the collar.
6. Fix the motor mount collar to the motor using the 4 screws (A) retained from step 1.
The screws have to be torqued as per motor manual.
7. Feed the cables (D) through the rubber grommet (F) and refit it to motor mount collar.
The grommet should be fitted with the flat side to the top.
D
A (4x)
D
F
