2 Mechanical Installation
EN 16 YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide

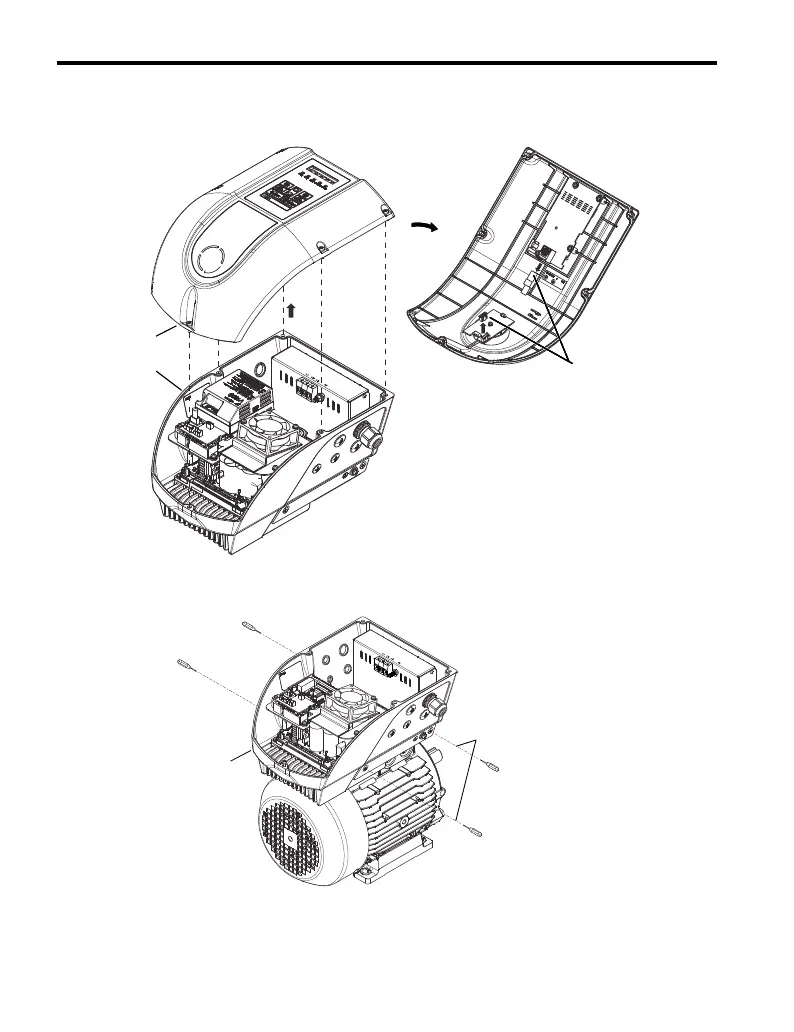

8. Remove the lid (H) from the inverter unit (G) and carefully unplug the 2 cables (J) that
are attached to the lid.
9. Lower the inverter unit (G) on to the motor mount collar and fix it using 4xM5
countersunk screws. Screws have to be torqued to 2.35 Nm.
G
H
J
G
4xM5
2.35 Nm
