2 Mechanical Installation
YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide EN 17
ENGLISH

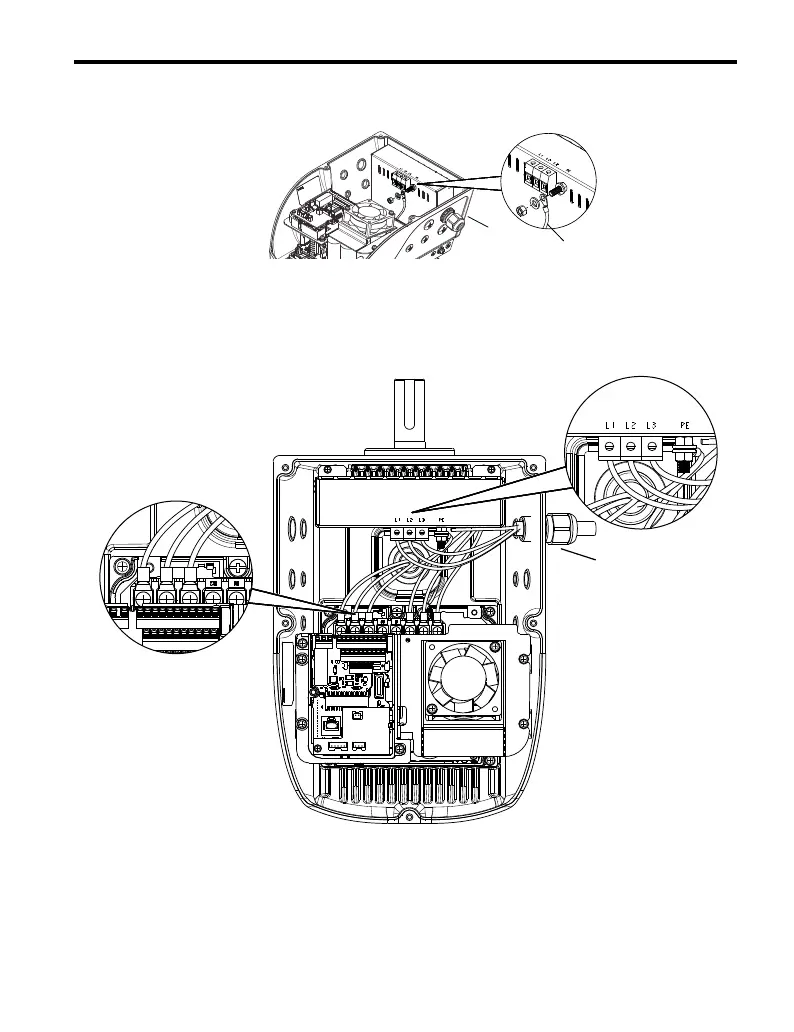

10.Connect the earth cable (K) to the stud on the integrated EMC filter (M5 connector).
11.Wire the motor cables to terminals U, V, W. Terminal screws have to be torqued to
1.3 Nm.
12.Feed input power cable through M20 cable gland, and wire into the filter (L1, L2, L3,
PE (M5 stud)). Wire control terminals as required.
G
K
M20
UVW
