YASKAWA V1000 - GA500 Main Circuit and Motor Circuit Terminal Layout by Model

5 Main Circuit and Motor Wiring
14 YASKAWA America, Inc. PL.GA500.01 YASKAWA AC Drive - V1000 to GA500 Transition Guide
Figure 3

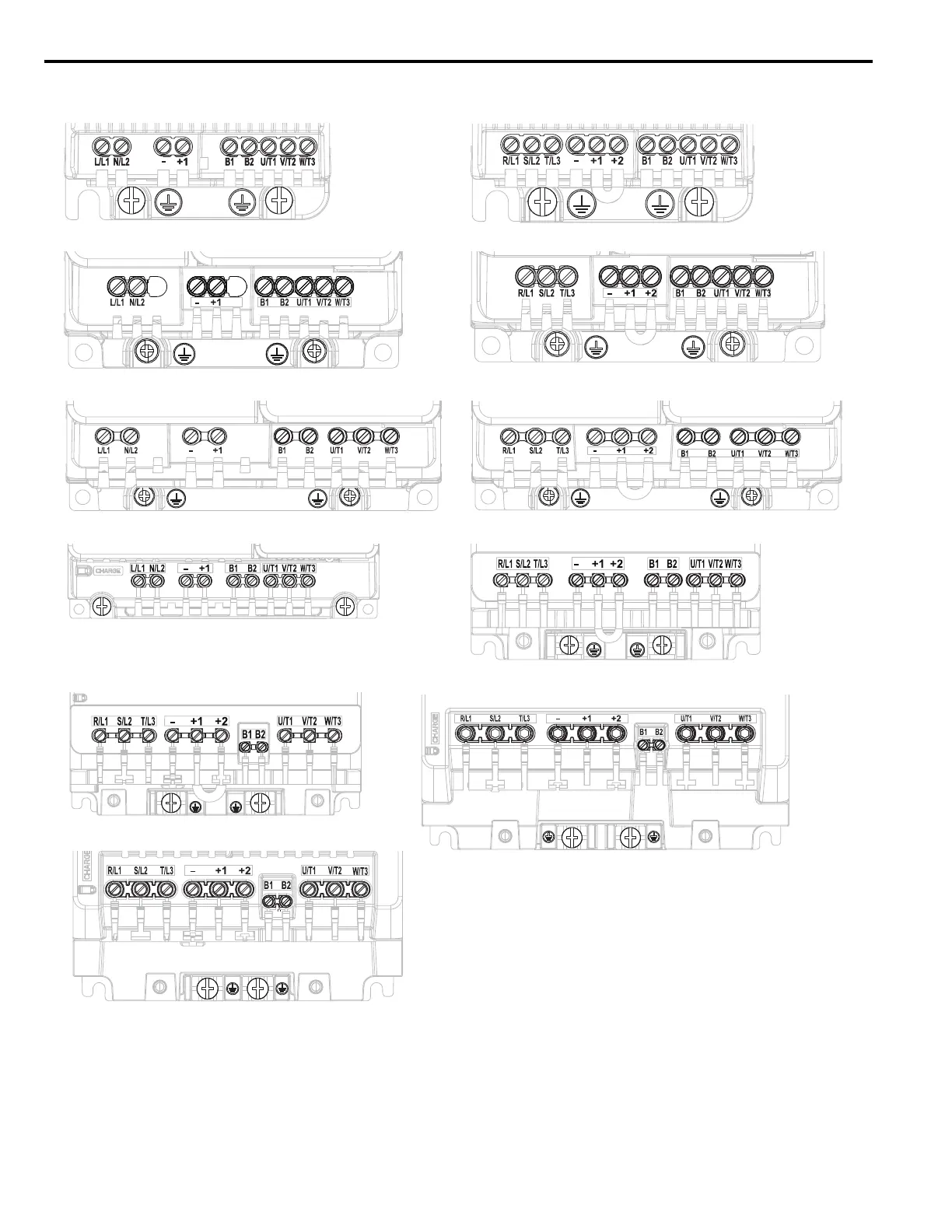

Figure 3 GA500 Main Circuit and Motor Circuit Terminal Layout by Model
Models: GA50UB001, B002, B004 Models: GA50U2001, 2002, 2004, 2006
Models: GA50UB006, B010 Models: GA50U2012, 4001, 4002, 4004, 4005, 4007, 4009
Model: GA50UB018 Models: GA50U2030, 2042, 4018, 4023
Model: GA50UB012 Model: GA50U4012
Models: GA50U2056, 4031, 4038
Models: GA50U2070, 2082
Models: GA50U4044, 4060
