6 Control Circuit Wiring

YASKAWA America, Inc. PL.GA500.01 YASKAWA AC Drive - V1000 to GA500 Transition Guide 21

Figure 7

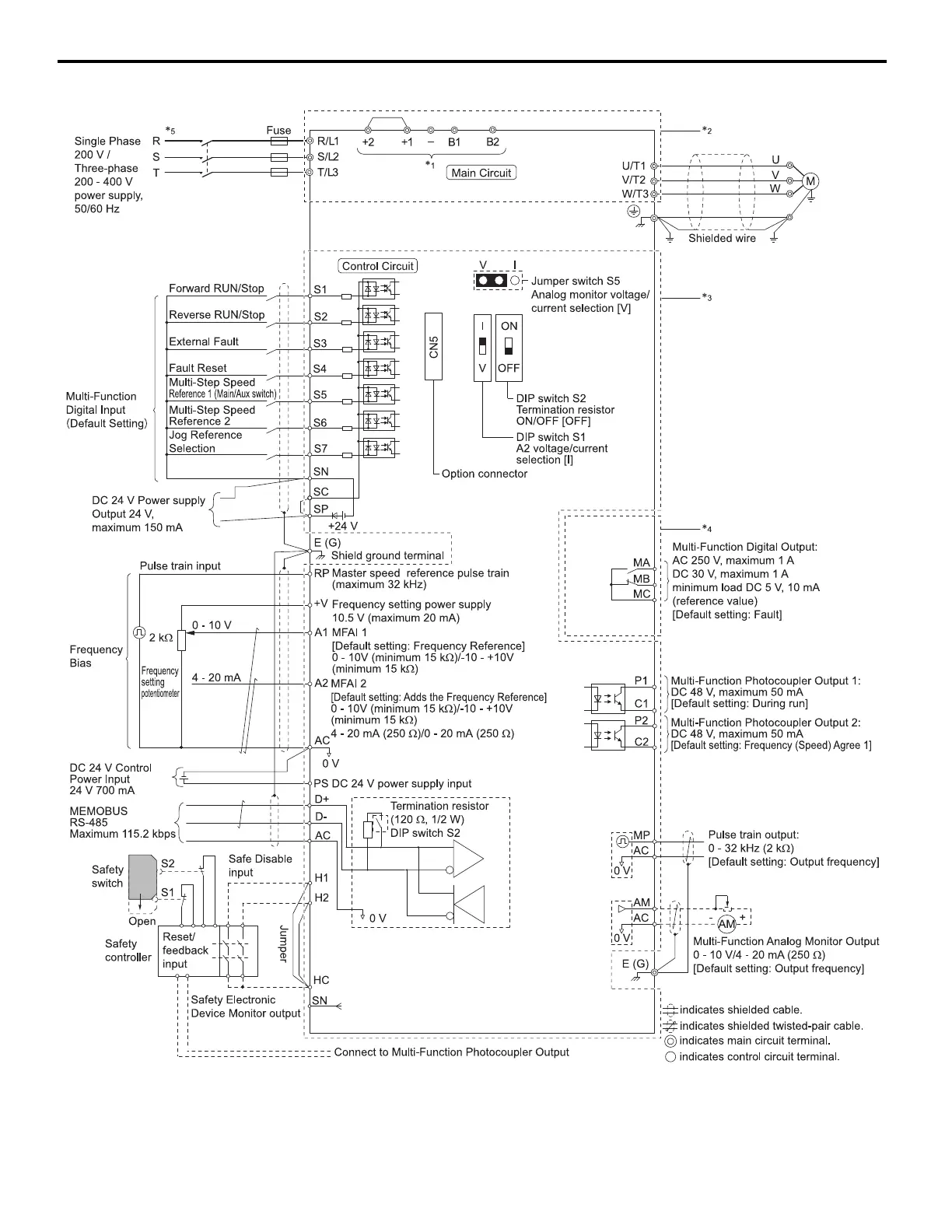

Figure 7 GA500 Connection Diagram

GA500 AC Microdrive
