3 Dimensions and Adapters
YASKAWA America, Inc. PL.GA500.01 YASKAWA AC Drive - V1000 to GA500 Transition Guide 7
3 Dimensions and Adapters

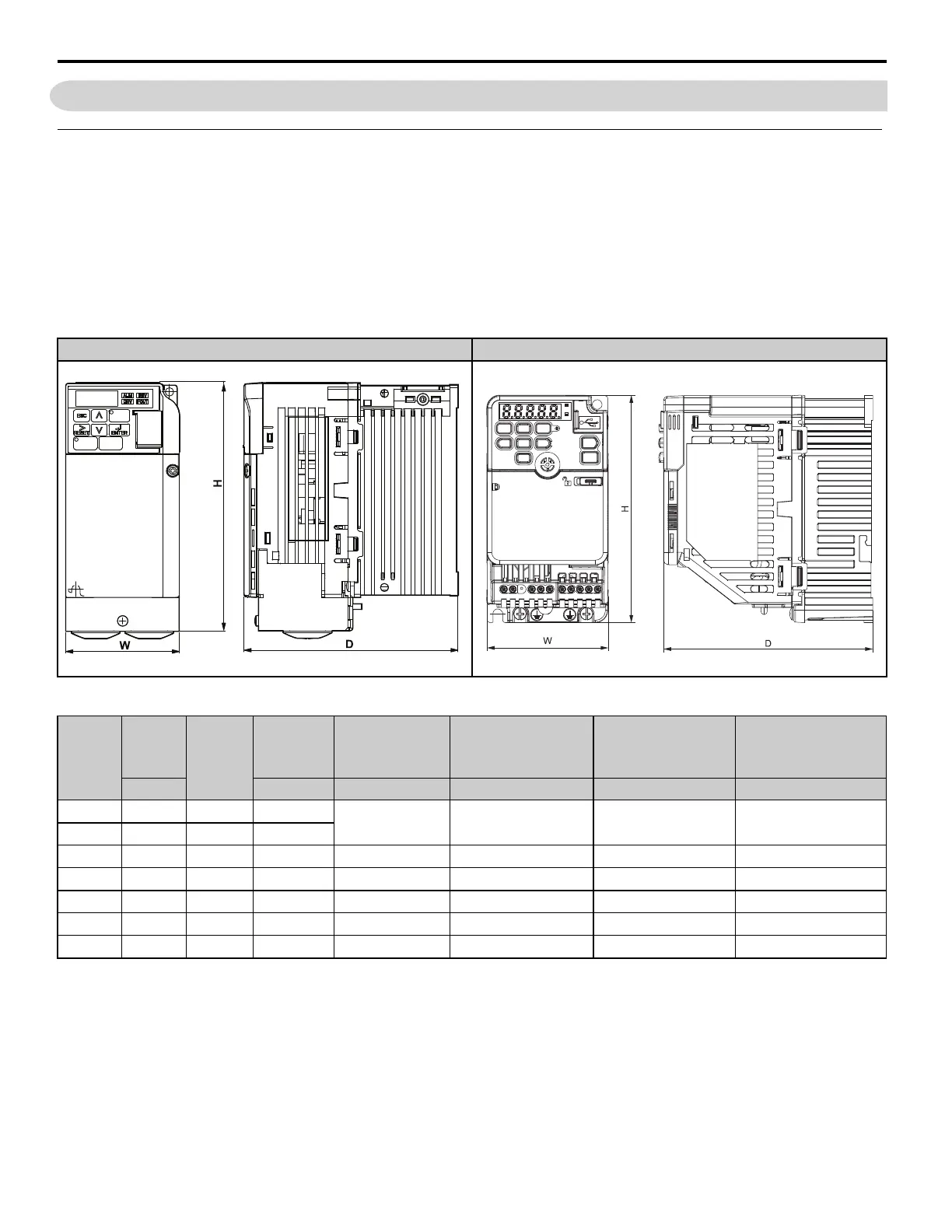

 Dimension Comparison and Mounting Kits
The standard model V1000 enclosure is wall-mount UL Type 1. GA500 dimensions for the optional UL Type 1 kit
assembled to the GA500 are also shown. Use these tables to understand physical dimensions when required for replacing
the V1000 with a new GA500 drive.
Note:
• V1000 and GA500 have the same mounting dimensions. No mounting kit conversion is required.
• Dimensions in this document are approximate. Refer to the Technical Manual or Dimension Diagrams for exact
dimensions.
Table 4 Single-Phase, 240 V Models - Exterior Dimensions and Enclosure Kits
V1000 UL Type 1 Enclosure GA500 IP20/Protected Chassis
V1000
Frame
V1000
Model
GA500
Frame
GA500
Catalog
Code
GA50U_
GA500
UL Type 1
Enclosure Kit
V1000
UL Type 1
Enclosures
GA500
Protected Chassis
Enclosures
GA500
IP20/UL Type 1
Enclosures
CIMR-VU GA50U Catalog Code H x W x D in H x W x D in H x W x D in
1 BA0001 1.1 B001
ZBAA-GA50V1-1 5.89 x 2.68 x 2.99 5.04 x 2.68 x 2.99 5.83 x 2.68 x 2.99
1 BA0002 1.1 B002
3 BA0003 1.3 B004 ZBAA-GA50V1-2 5.89 x 2.68 x 4.65 5.04 x 2.68 x 4.65 5.83 x 2.68 x 4.65
8 BA0006 2.4 B006 ZBAA-GA50V2-1 5.89 x 4.25 x 5.41 5.04 x 4.25 x 5.41 7.01 x 4.25 x 5.41
10 BA0010 2.5 B010 ZBAA-GA50V2-2 5.89 x 4.25 x 6.06 5.04 x 4.25 x 6.06 7.01 x 4.25 x 6.06
12 BA0012 3.2 B012 ZBAA-GA50V3-1 6.02 x 5.51 x 6.42 5.04 x 5.51 x 6.42 7.01 x 5.51 x 6.42
13 BA0018 4 B018 ZBAA-GA50V4-1 6.02 x 6.69 x 7.09 5.04 x 6.69 x 7.09 7.17 x 6.69 x 7.09
