6 Control Circuit Wiring
YASKAWA America, Inc. PL.GA500.01 YASKAWA AC Drive - V1000 to GA500 Transition Guide 27
GA500 Switches and Jumpers

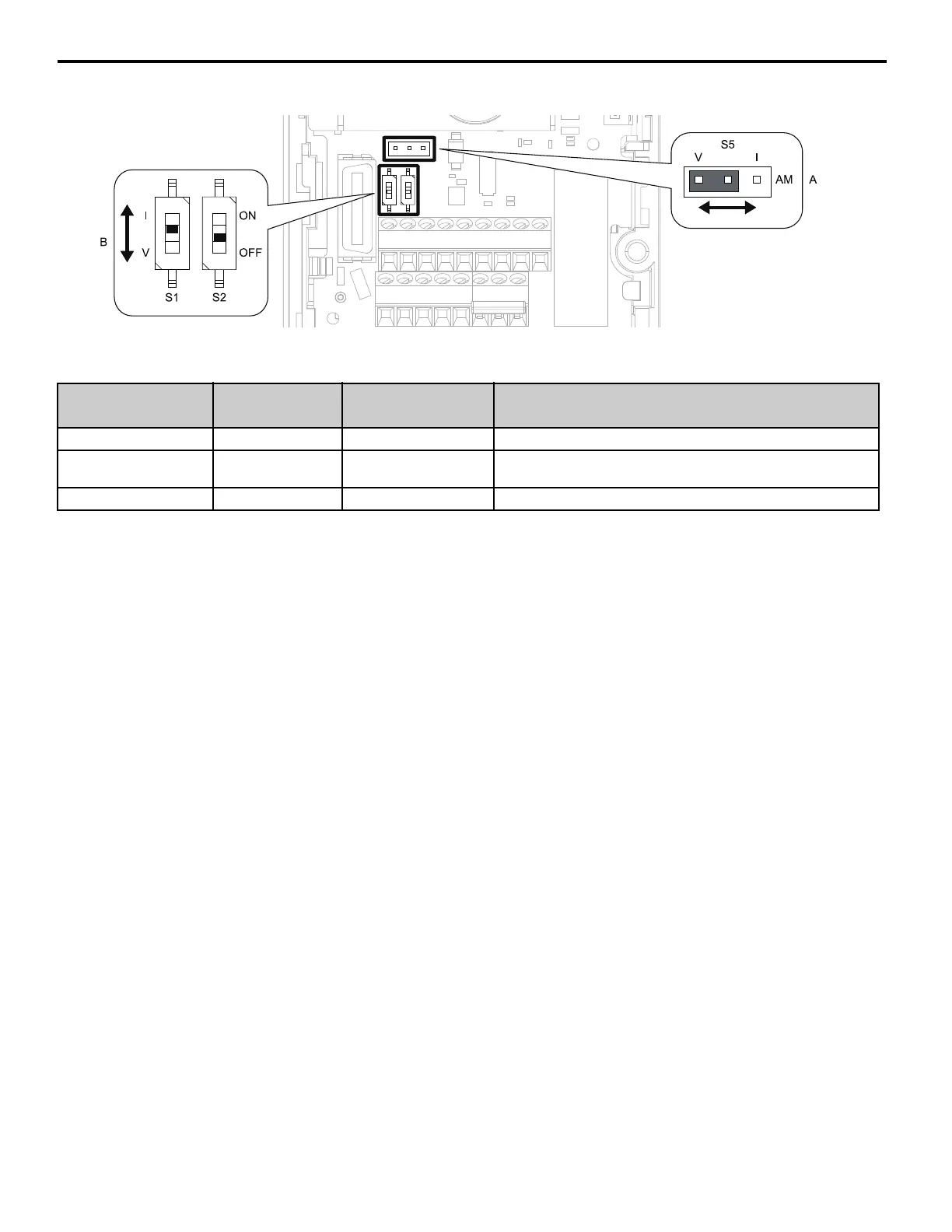

Figure 9
Figure 9 GA500 Switches and Jumpers
Table 13 GA500 Switch and Jumper Settings
Switch or Jumper GA500 Terminal Default Setting Value DIP Switch Setting Description
DIP SW S1 A2 I (current input) Sets the input method for terminal A2 (voltage or current).
DIP SW S2 - OFF
Enables and disables the MEMOBUS/Modbus communications
termination resistor.
Jumper S5 AM V (voltage output) Sets the output method for terminal AM (voltage or current).
