YASKAWA V7 User Manual

A7-3

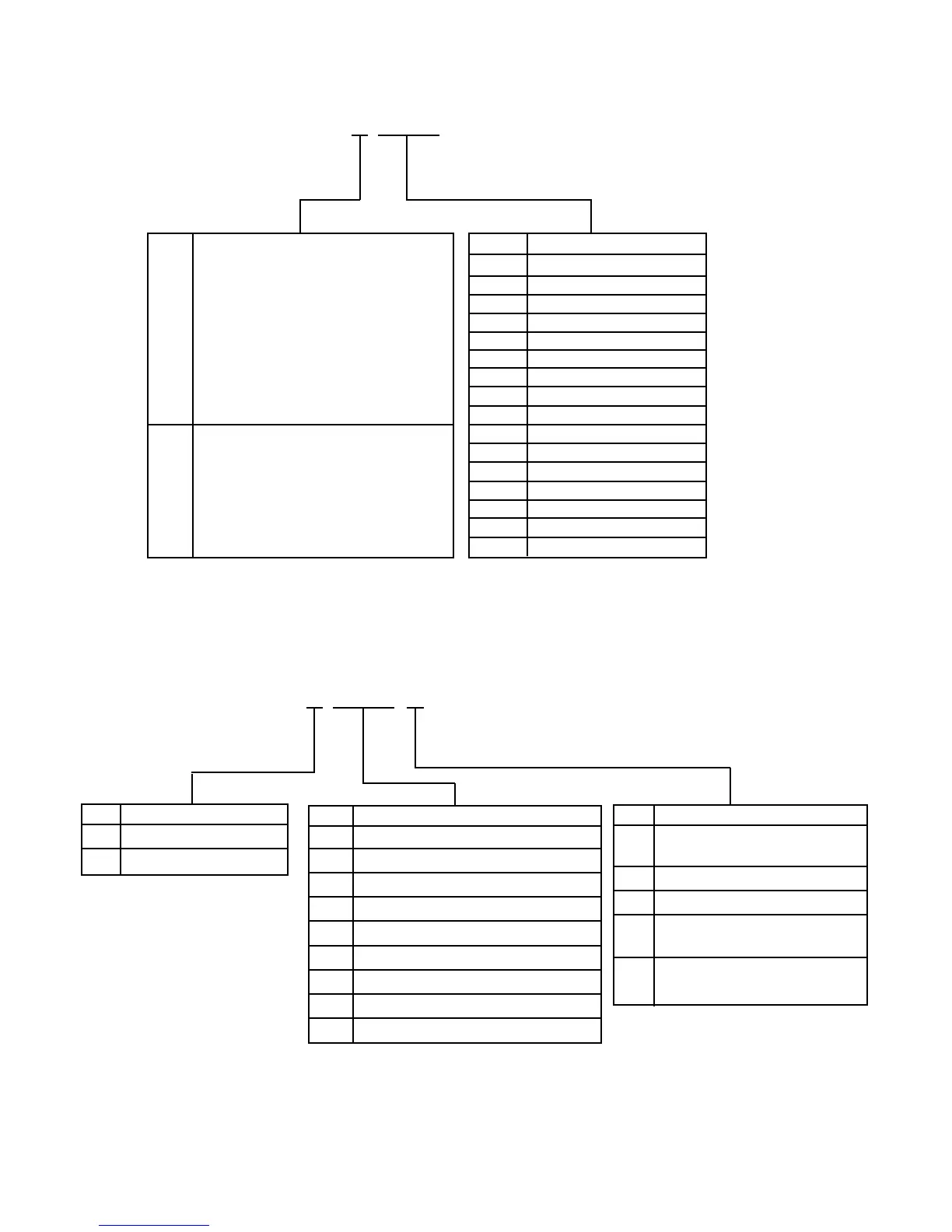

Drive Spec Structure
2 0 P 1 0
B Single-phase 200VAC
2 Three-phase 200VAC
4
Three-phase 400VAC
No. Protective structure
0 Open chassis
(IP20, IP00)
1 Enclosed wall-mounted
(NEMA 1)
4Water and dust tight
(NEMA 4/IP66)
7 Open chassis (IP20)
Top-closed type
No. Applicable maximum motor output
0P1 0.13 HP
0P2 0.25 HP
0P4 0.5 HP
0P7 1 HP
1P5 2 HP
2P2 3 HP
3P7 5 HP
5P5 7.5 & 10 HP
7P5 15 HP
(1)
Ref Model Number Structure (applicable to V7NEMA type 1 only)
A 0 0 1
No. Current rating
001 0.8 A
002 1.6 A
003 3.0 A
A Three-phase 200VAC 005 5.0 A
008 8.0 A
011 11.0 A
017 17.5 A
025 25.0 A
033 33.0 A
001 1.2 A
002 1.8 A
003 3.4 A
B Three-phase 400VAC 005 4.8 A
009 9.2 A
015 14.8 A
021 21.0 A
Note: Model Number and Drive Spec Number are required to fully define a drive.
(1)
Applies to NEMA type 4x/12 model only
