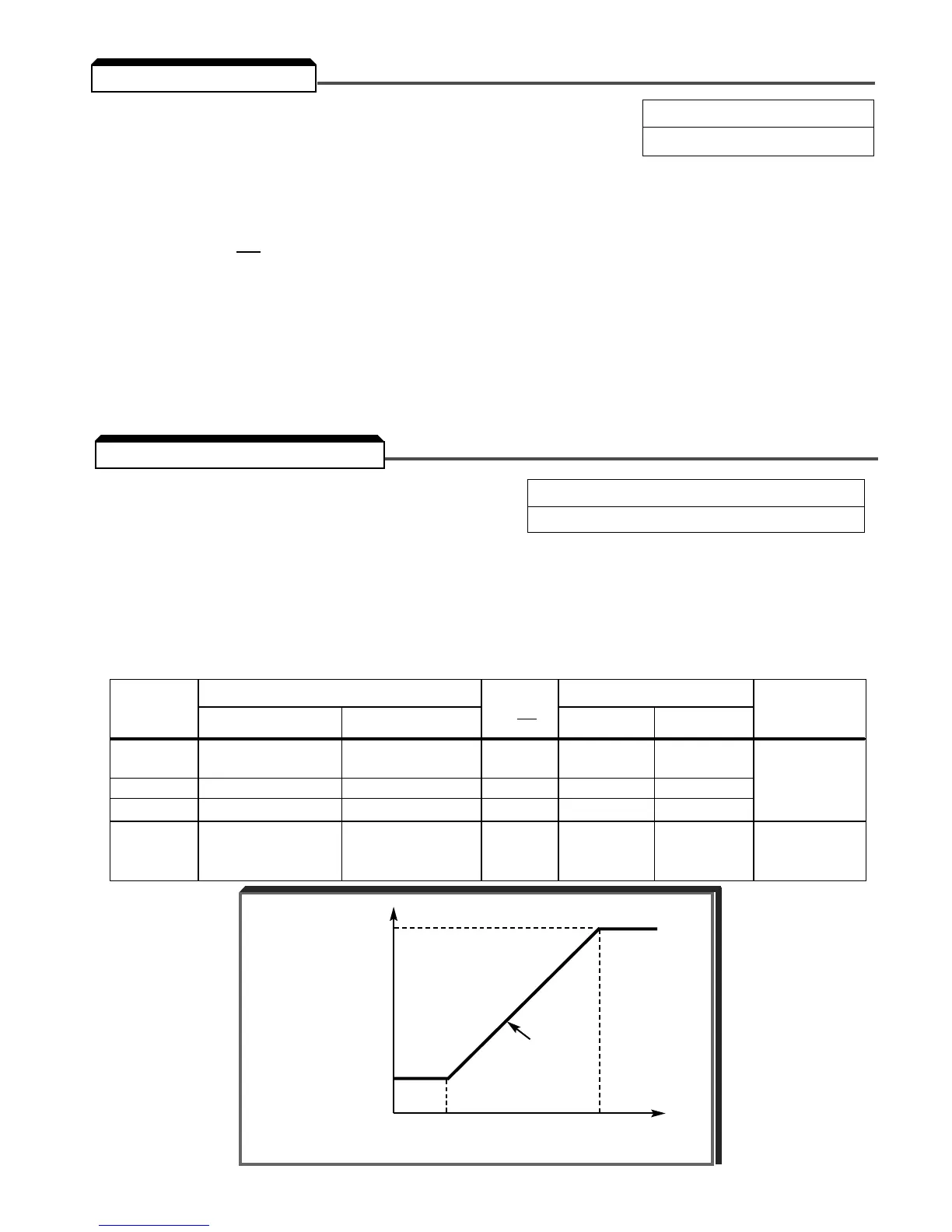

5-4
n082 : Number of Auto-Restart Attempts Factory setting: 0
Range: 0 - 10
When a fault occurs during operation, the Drive can be programmed for an auto-restart operation to
automatically reset the fault. Auto-restart operation will use the number of reset attempts set in this
parameter, up to the maximum of 10. When set to " 0 ", no auto-restarts will be attempted.
Fault contact will not
actuate (change state) during auto-restart attempts.
• The following faults can be automatically reset:
oC: Overcurrent
ou: Overvoltage (OV)
• The number of restart attempts available will be reset to the n082 setting when:
1. 10 minutes has elapsed without a fault occurring.
2. The RESET key, or external Fault Reset push button, is pressed.
3. Power is removed from the Drive.
n080
CARRIER FREQUENCY(kHz) SLOPE OUTPUT FREQUENCY(Hz)
MODE
SETTING Maximum(FcMAX) Minimum(FcMIN)
(=Fc)
Fo
F1 F2
12.5 2.5 0 NA NA CONSTANT
25.0 5.00NANA
37.5 7.50NANA
4 10.0 10.0 0 NA NA
72.5 1.0 12 83.3 208.3
SYNCHRONOUS
82.5 1.0 24 41.6 104.1
92.5 1.0 36 27.7 69.4
n080 : Carrier Frequency Factory Setting: 3
Range: 1 to 4; 7 to 9
The relationship between output frequency and carrier frequency is determined from the set value
of n080 .
(a) For constant carrier frequency, set to " 1 ", " 2 ", " 3 ", " 4 ".
(b) For synchronous mode, set n080 to " 7 ", " 8 ", or " 9 ". These setting values
establish carrier frequencies of 12f, 24f, or 36f, respectively.
Fc
MAX
CARRIER
FREQUENCY
SLOPE
Fc
MIN
0F1 F2
OUTPUT FREQUENCY
5.5 CARRIER FREQUENCY
5.4 AUTO-RESTART
