YASKAWA V7 User Manual

A5-1

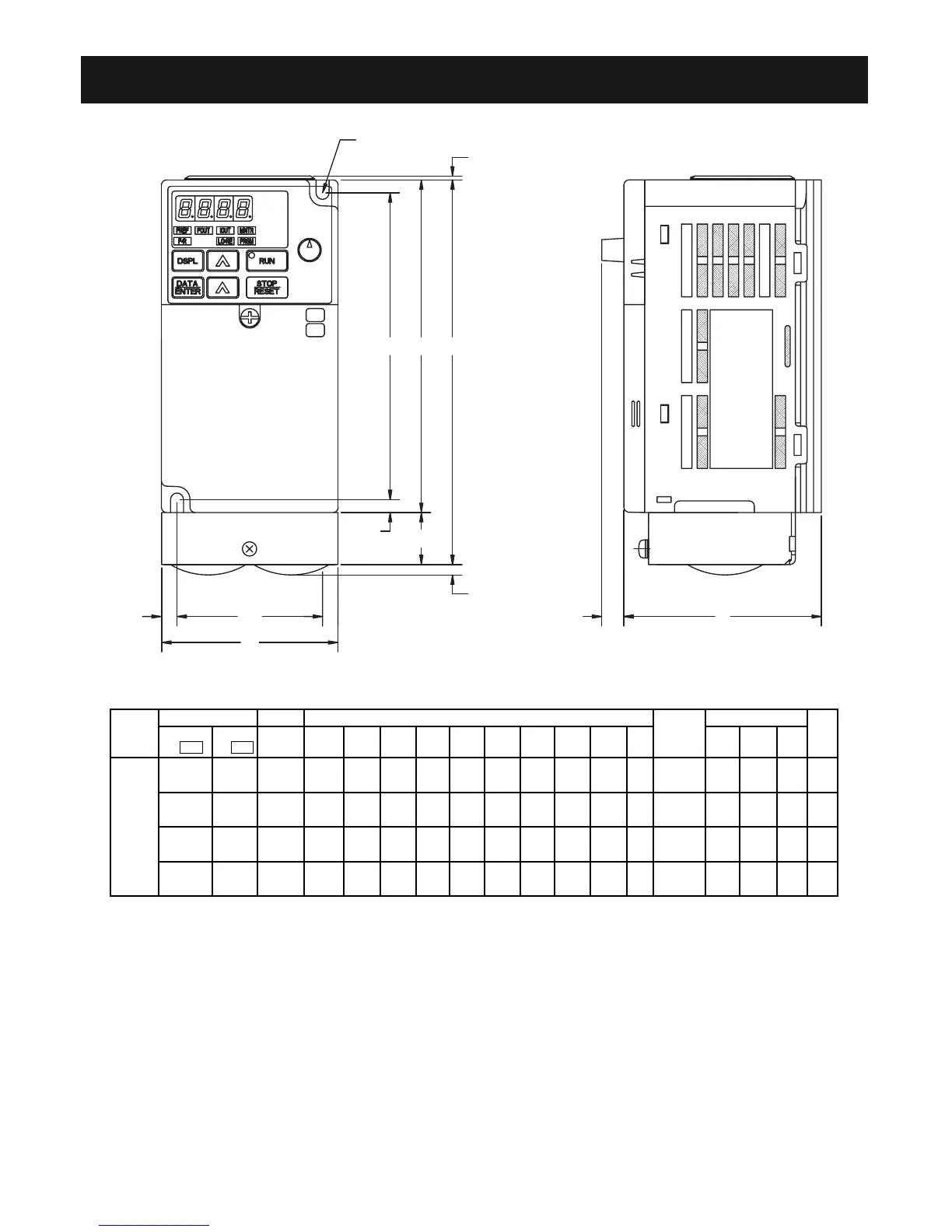

Appendix 5. DRIVE DIMENSIONS
W2 W1
W
H3H1
H4
H2
0.06
(1.5)
0.16
(4.0)
D
0.33
(8.5)
2-d
H
Model Size Dimensions in inches (mm) Weight Heat Loss (W)
Voltage
CIMR- Lbs. Heat-
Class
V7* MV
HP W H D W1 H1 H2 W2 H3 H4 d
(kg) sink Internal Total
Fig.
20P1 A001 1/8 2.68 5.83 2.99 2.20 4.65 0.20 0.24 5.04 0.79 M4 1.55 3.7 9.3 13.0 1
(68) (148) (76) (56) (118) (5) (6) (128) (20) (0.7)
20P2 A002 1/4 2.68 5.83 2.99 2.20 4.65 0.20 0.24 5.04 0.79 M4 1.55 7.7 10.3 18.0 1
230V (68) (148) (76) (56) (118) (5) (6) (128) (20) (0.7)
3-phase 20P4 A003 1/2 2.68 5.83 4.25 2.20 4.65 0.20 0.24 5.04 0.79 M4 2.20 15.8 12.3 28.1 1
(68) (148) (108) (56) (118) (5) (6) (128) (20) (1.0)
20P7 A005 3/4 & 1 2.68 5.83 5.04 2.20 4.65 0.20 0.24 5.04 0.79 M4 2.65 28.4 16.7 45.1 1
(68) (148) (128) (56) (118) (5) (6) (128) (20) (1.2)
V7 Enclosed wall mounted type (NEMA type 1)
Fig. 1
(1)
When drives include network communications option board, add 1.5" to drive depth.

YASKAWA V7 Specifications

General

Model	V7
Category	Controller
Manufacturer	Yaskawa
Output Frequency	0.1 to 400 Hz
Type	AC Drive
Horsepower	0.5 to 300 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication Interfaces	DeviceNet, Profibus, Ethernet
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Voltage Class	200V, 400V
Storage Temperature	-20°C to 65°C
