YASKAWA V7 User Manual

A5-2
(1.5)
0.06
(4.0)
0.16
H3H1
W
W1
W2
H2
H4
4-d
D
(8.5)
0.33
H
Model Size Dimensions in inches (mm) Weight Heat Loss (W)
Voltage
CIMR- Lbs. Heat-
Class
V7* MV
HP W H D W1 H1 H2 W2 H3 H4 d
(kg) sink Internal Total
Fig.
21P5 A008 2 4.25 5.83 5.16 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.53 53.7 19.1 72.8 2
(108) (148) (131) (96) (118) (5) (6) (128) (20) (1.6)
230V 22P2 A011 3 4.25 5.83 5.51 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 60.4 34.4 94.8 2
3-phase (108) (148) (140) (96) (118) (5) (6) (128) (20) (1.7)
23P7 A017 5 5.51 5.83 5.63 5.04 4.65 0.20 0.24 5.04 0.79 M4 5.30 96.7 52.4 149.1 2
(140) (148) (143) (128) (118) (5) (6) (128) (20) (2.4)
40P2 B001 1/2 4.25 5.83 3.62 3.78 4.65 0.20 0.24 5.04 0.79 M4 2.65 9.4 13.7 23.1 2
(108) (148) (92) (96) (118) (5) (6) (128) (20) (1.2)
40P4 B002 3/4 4.25 5.83 4.43 3.78 4.65 0.20 0.24 5.04 0.79 M4 2.65 15.1 15.0 30.1 2
(108) (148) (110) (96) (118) (5) (6) (128) (20) (1.2)
460V 40P7 B003 1& 2 4.25 5.83 5.51 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 30.3 24.6 54.9 2
3-phase (108) (148) (140) (96) (118) (5) (6) (128) (20) (1.7)
41P5 B005 3 4.25 5.83 6.14 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 45.8 29.9 75.7 2
(108) (148) (156) (96) (118) (5) (6) (128) (20) (1.7)
43P7 B009 5 5.51 5.83 5.63 5.04 4.65 0.20 0.24 5.04 0.79 M4 5.30 73.4 44.5 117.9 2
(140) (148) (143) (128) (118) (5) (6) (128) (20) (2.4)

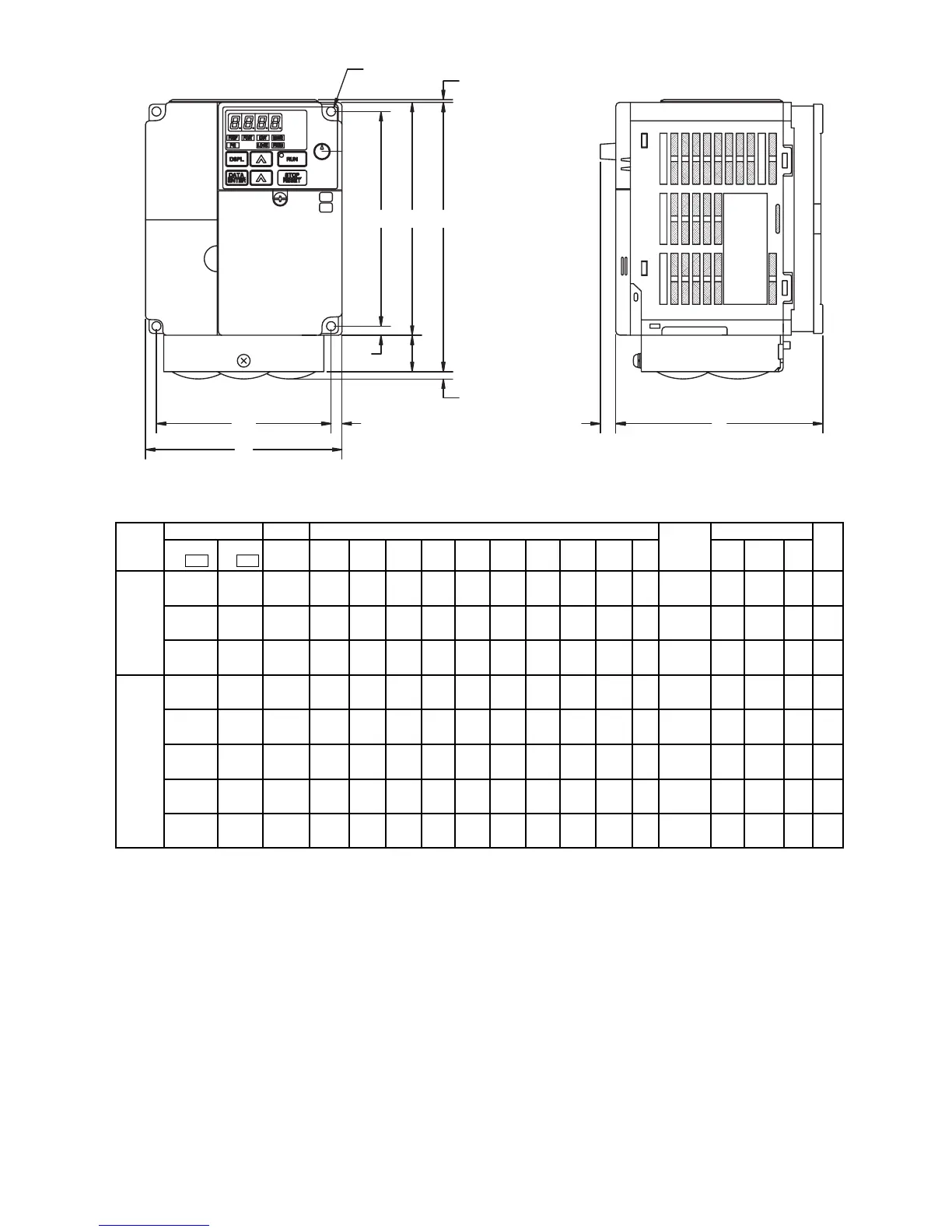

V7 Enclosed wall mounted type (NEMA type 1)
Fig. 2
(1)
When drives include network communications option board, add 1.5" to drive depth.

YASKAWA V7 Specifications

General

Model	V7
Category	Controller
Manufacturer	Yaskawa
Output Frequency	0.1 to 400 Hz
Type	AC Drive
Horsepower	0.5 to 300 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication Interfaces	DeviceNet, Profibus, Ethernet
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Voltage Class	200V, 400V
Storage Temperature	-20°C to 65°C
