YASKAWA V7 User Manual

5-47
5.29 COPY FUNCTION
DIGITAL OPERATOR
DESCRIPTION KEY SEQUENCE DISPLAY

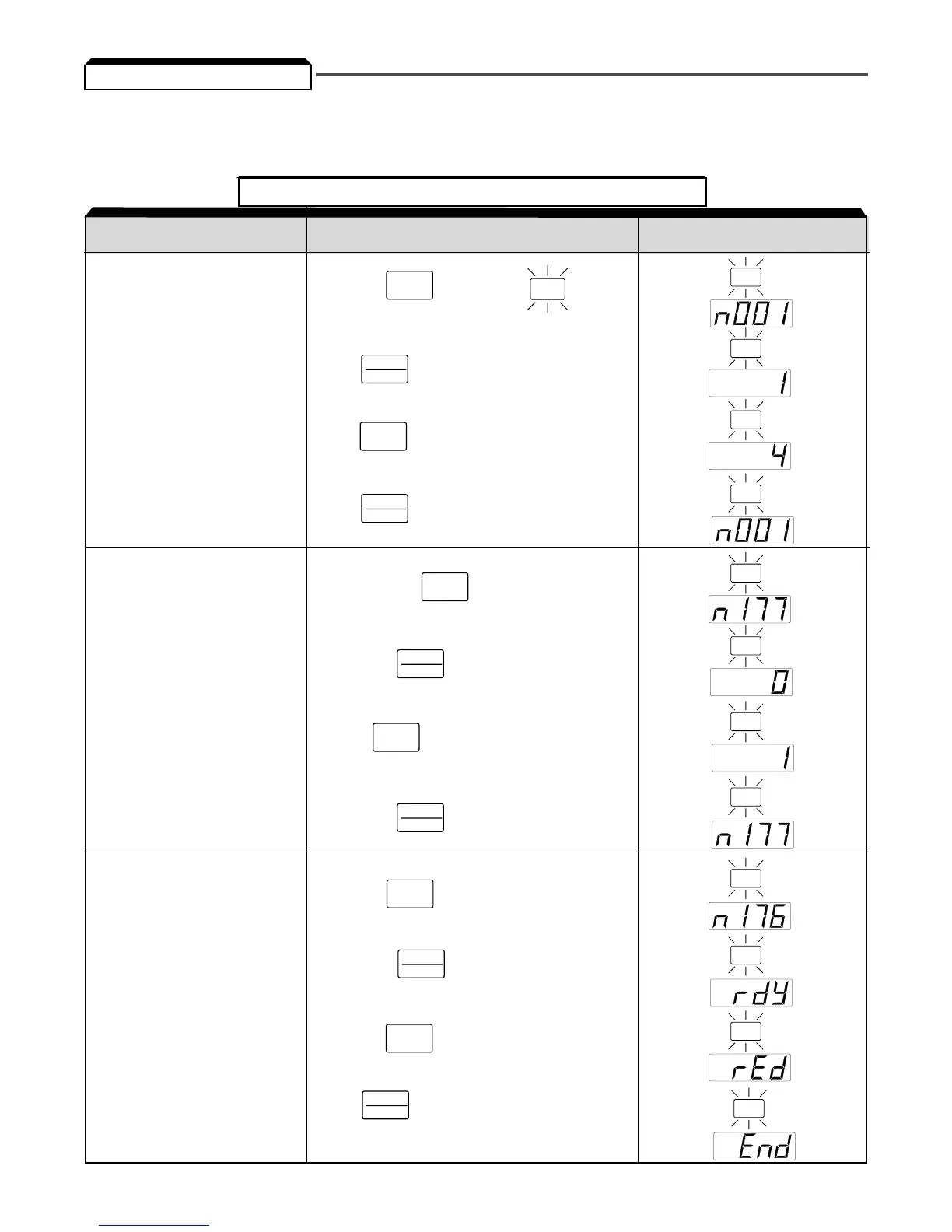

Table 5-5. Reading Drive Parameters
Set the highest parameter
access level.
This will allow all parameters
to be viewed and set.
Press the key until the LED
is lit on the digital operator.
DSPL
Set Parameter Copy
Access Selection (n177) = 1
Press and hold until n177 is dis-
played on the digital operator.
V
Execute upload (Read)
Using Parameter Read
Function Selection (n176)
PRGM
Then press .
DATA
ENTER
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
PRGM
Use the key to set a “1” in the
display.
V
Then press .
DATA
ENTER
Then press .
DATA
ENTER
Press .
DATA
ENTER
Press three times.
V
Press .
DATA
ENTER
Press the key once.
V
Press the key once.
V
Press . “rED” will blink on the display
while reading.
DATA
ENTER
A. Read Function (rEd)
The Read function reads the available parameter data from the drive and stores them in a EEP-
ROM in the digital operator. When the Read function is executed the previously stored parameter
data is cleared and replaced with newly read parameters.
