YASKAWA V7

1-5
Continued
1.4 PHYSICAL INSTALLATION

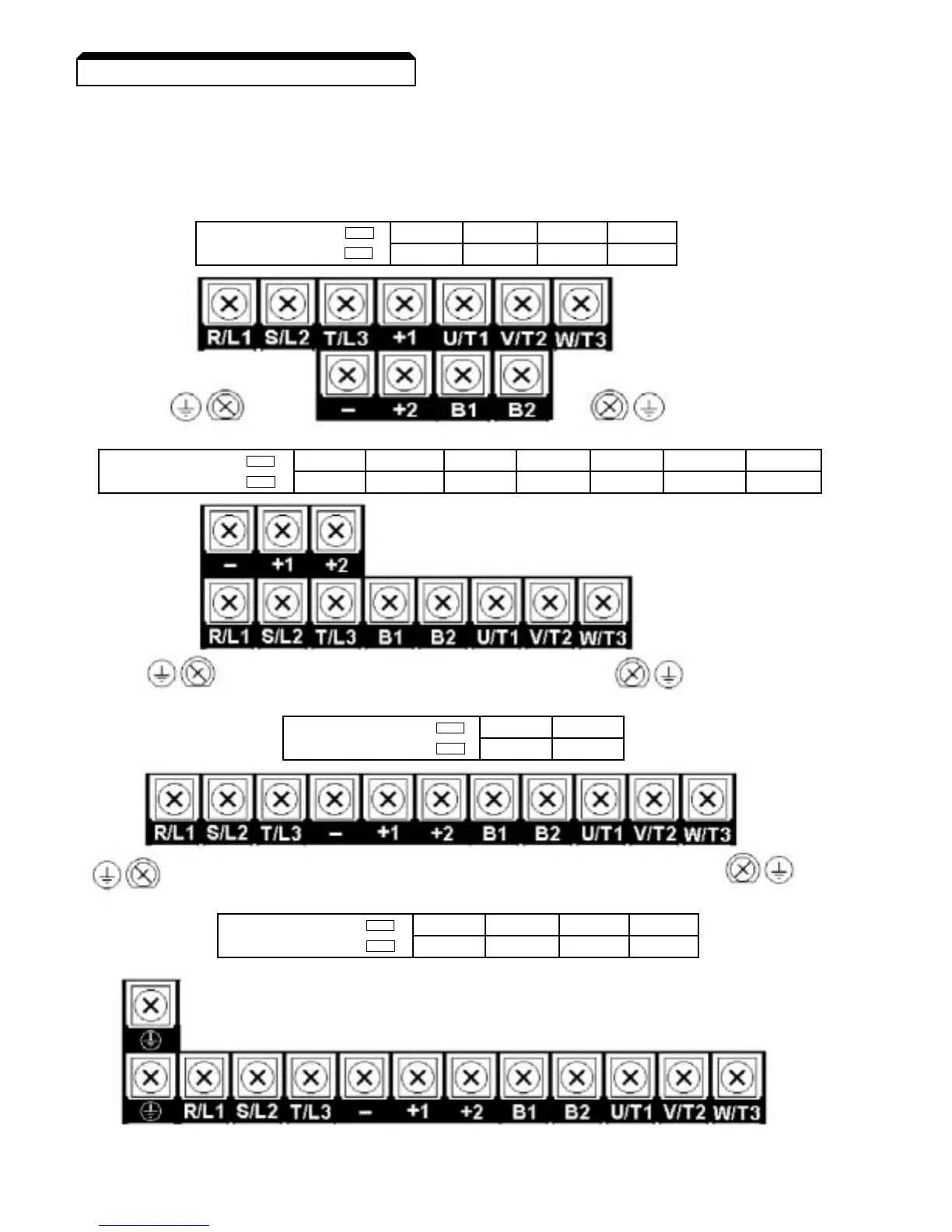

Figure 1-1c. Main Circuit Terminals
Model CIMR-V7* 20P1 20P2 20P4 20P7
MV A001 A002 A003 A005
Model CIMR-V7* 21P5 22P2 40P2 40P4 40P7 41P5 42P2
MV A008 A011 B001 B002 B003 B005 —
Model CIMR-V7* 23P7 43P7
MV A017 B009
Model CIMR-V7* 25P5 27P5 45P5 47P5
MV A025 A033 B015 B018
