24

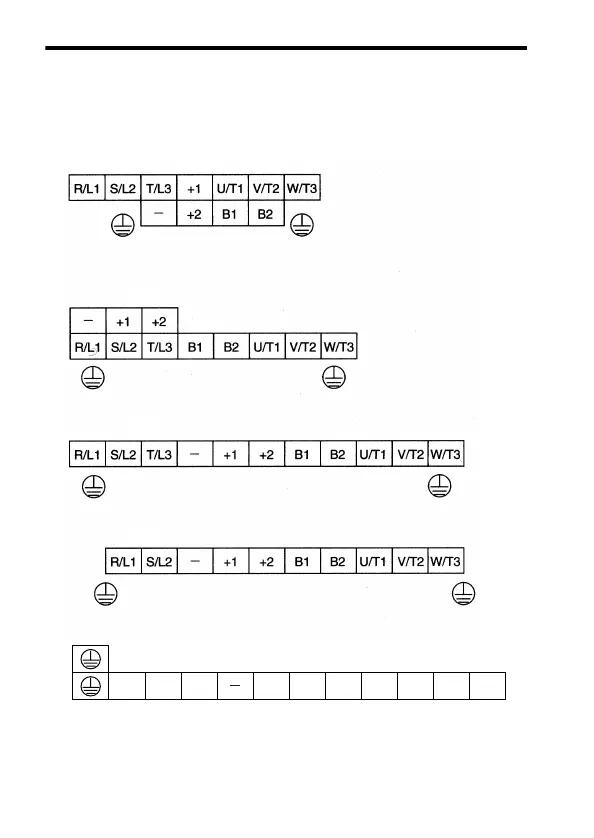

Main Circuit Terminal Arrangement
The terminal arrangement of the main circuit terminals depends on the
Inverter model.
CIMR–V7T25P5, 27P5, 45P5, 47P5
R/L1 S/L2 T/L3 +1 +2 B1 B2 U/T1 V/T2 W/T3
CIMR-V7TB3P7
CIMR-V7T21P5, 22P2, B0P7, B1P5, 40P2 to 42P2
CIMR-V7T20P1 to 20P7, B0P1 to B0P4
CIMR-V7T23P7, B2P2, 43P0, 43P7
