Setting Frequency by Current Reference Input
Never input voltage reference to control circuit terminal FR
when DIP switch SW2 is switched to “I” side. The Inverter
might be damaged.
VI
SW2
SW2

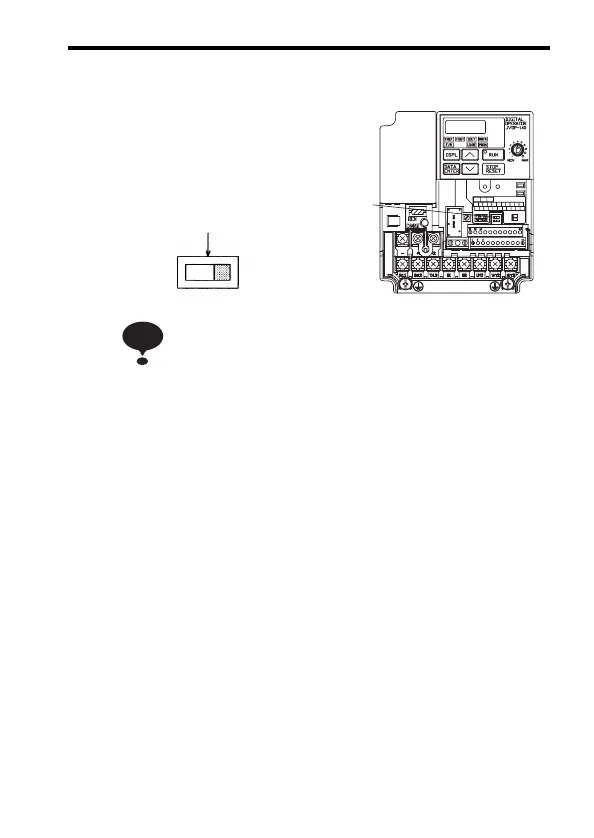

When setting frequency by input-
ting current reference (4-20 mA or
0-20 mA) from the control circuit
terminal FR, switch the DIP
switch SW2 on the control circuit
board to “I” side.
NOTE
To Next Page
