7.6 Measuring Harmonics

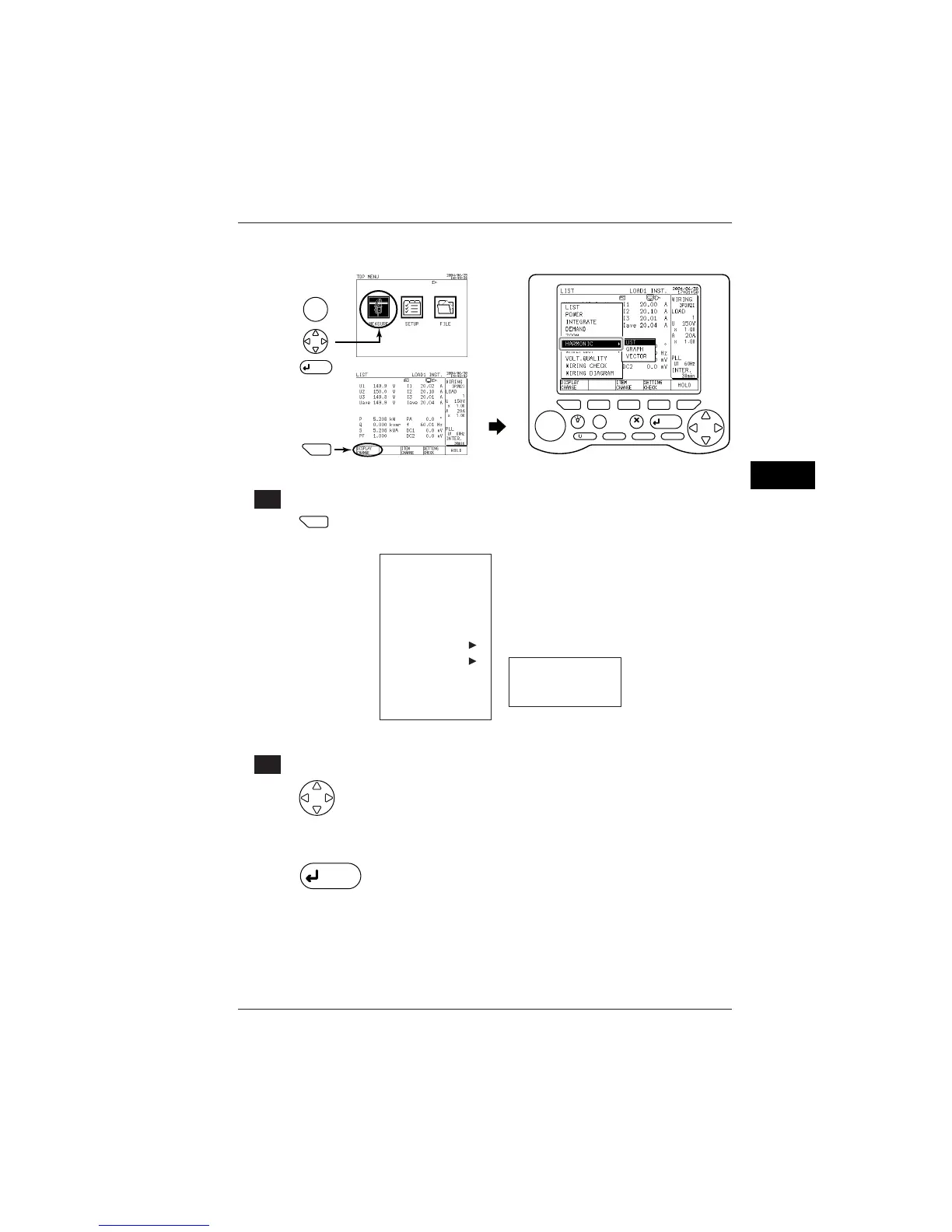

● Displaying the Harmonic Screen
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F 1
F 2 F 3 F 4 F 5
DISP COPY
RANGE
<Measure screen Example>
F 1
[ 1 Displaying the window
F 1 F 1
Press the F1 key (DISPLAY CHANGE).
The window for switching the screen appears.
LIST
POWER
INTEGRATE
DEMAND
ZOOM
HARMONIC
WAVEFORM
VOLT. QUALITY
WIRING
WIRING CHECK
Harmonic window
LIST
GRAPH
VECTOR
[ 2 Selection and Confirmation
Using the cursor key, select HARMONIC (highlighted).
Press the right direction cursor key to move to the Harmonic window.
Select one of LIST, GRAPH, and VECTOR using the up and down
direction cursor key.
ENTER
Press the ENTER key.
This closes the window, returning you to the selected screen.
