7.6 Measuring Harmonics
7.6.1 Displaying a List
ā Displaying the List Screen
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
F
1

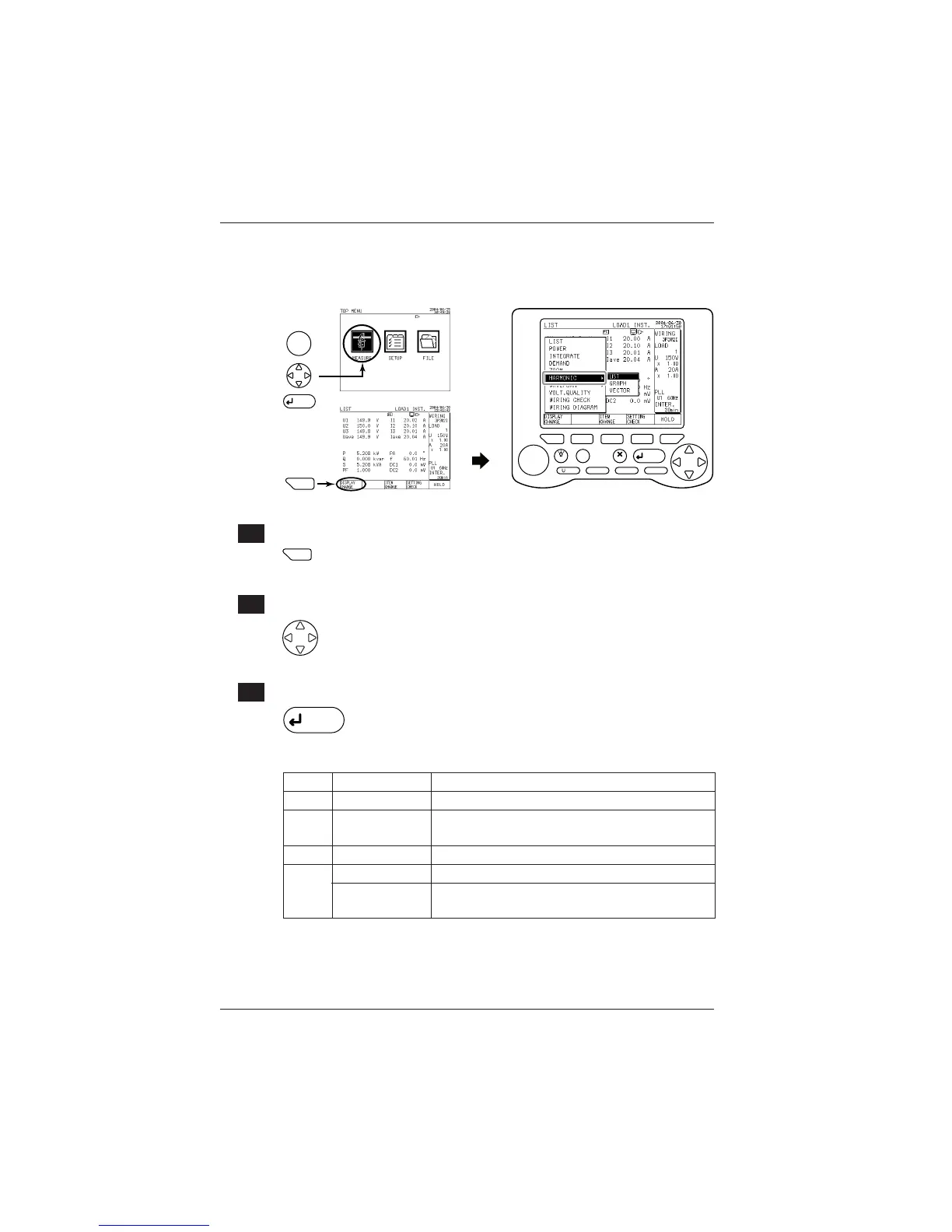

<Measure screen Example>
[ 1 Displaying the Measure screen
F
1
F
1
Press the F1 key (DISPLAY CHANGE).
The window for switching the screen appears.
[ 2 Selecting a list
Using the cursor key, select HARMONIC (highlighted).
Press the right direction cursor key to move to the Harmonic window.
Select LIST (highlighted) using the up and down direction cursor key.
[ 3 Confirmation
ENTER
Press the ENTER key.
The List screen appears.
Description of the Function Keys:
F1 DISPLAY CHANGE Switches the Measure screen.
F2 CH CHANGE Switches the element to be measured.
F3 ORDER CHANGE
Switches the order of harmonic to be displayed.
ALL ORD. (1st to 50th)/ODD ORD.
F4
āā
F5
HOLD Holds or cancels a displayed screen.
HOLD/Clear
If there is integrated data, press the F5 key for more than 3
seconds to clear it as necessary.
To Next Page
