7.6.2 Displaying a Graph
● Displaying the Graph Screen
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
<Measure screen Example>
F
1
[ 1 Displaying the Measure screen
F
1
F
1

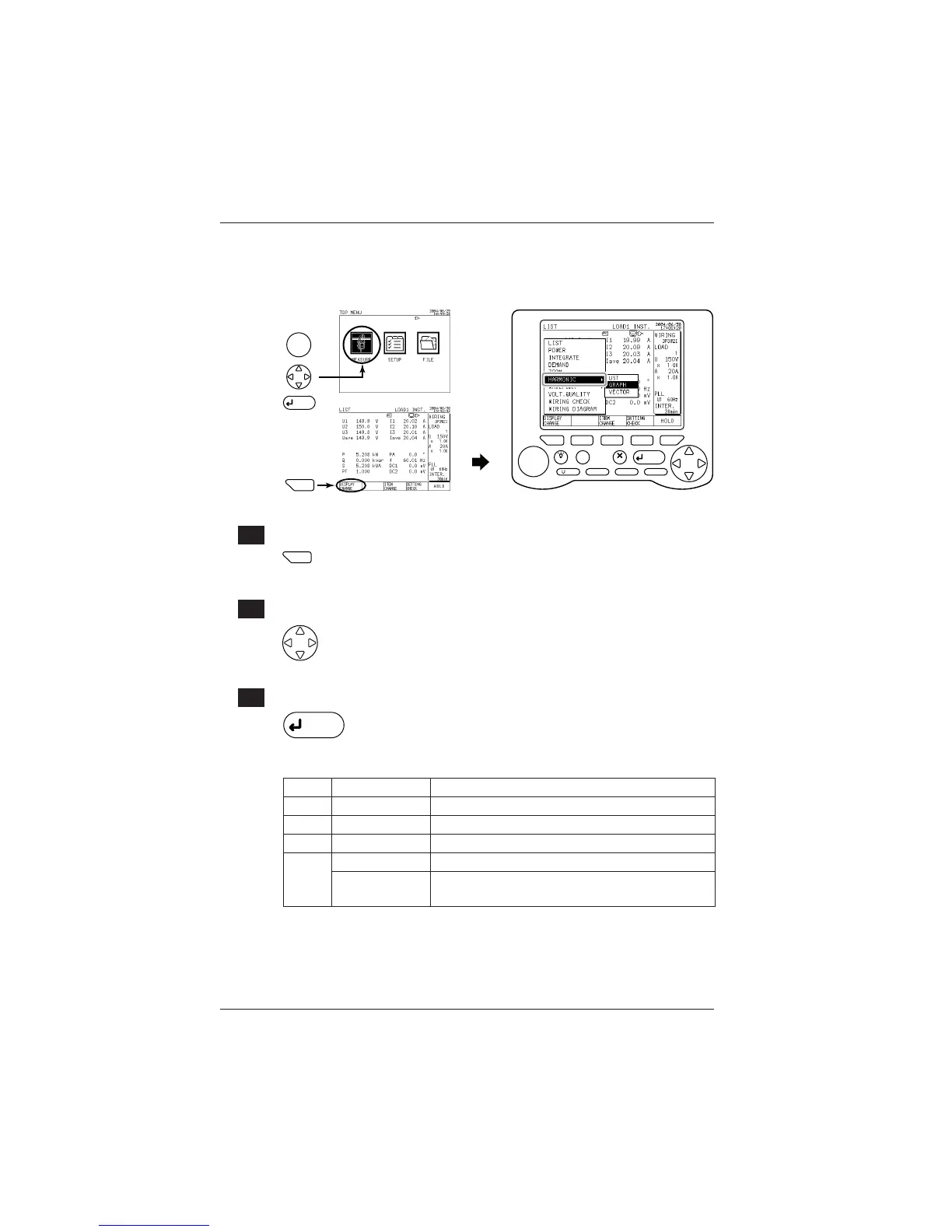

Press the F1 key (SCREEN CHANGE).
The window for switching the screen appears.
[ 2 Selecting a graph
Using the cursor key, select HARMONIC (highlighted).
Press the right direction cursor key to move to the Harmonic window.
Using the up and down direction cursor key, select GRAPH (highlighted).
[ 3 Confirmation
ENTER
Press the ENTER key.
The Graph screen appears.
Description of the Function Keys:
F1 DISPLAY CHANGE Switches the Measure screen.
F2 CH CHANGE Switches the element to be measured.*
F3 ITEM CHANGE Switches between LEVEL, CONTENT, and PHASE ANGLE.
F4 LINEAR/LOG Switches between LEVEL, CONTENT, and PHASE ANGLE.
F5
HOLD Holds or cancels a displayed screen.
HOLD/Clear
*: For more information on F2(CH CHANGE), see 7.6.1 Displaying a List.
If there is integrated data, press the F5 key for more than 3
seconds to clear it as necessary.
