4.5 Carrying out Wiring
4.5.12 Three-phase Four-wire Four-current (3P4W4I)
<Measurement of neutral line current>

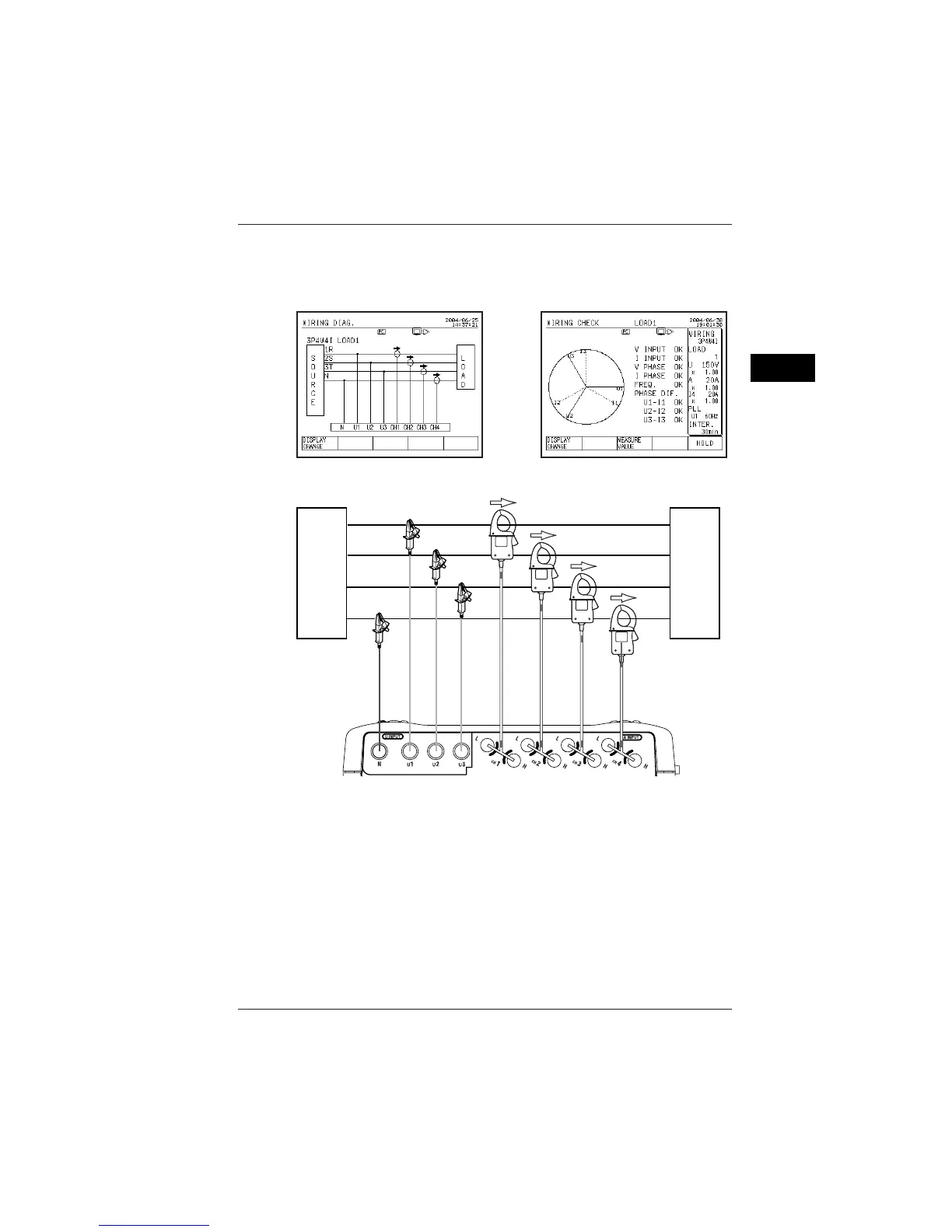

● WIRING DIAGRAM Screen ● WIRING CHECK Screen
● Actual Wiring
2S
1R
3T
NN
2S
1R
3T
Power
supply
Load
Black Red Yellow Blue
SEE ALSO
For more information on wiring checks, see Section 4.7, Checking Wiring.
