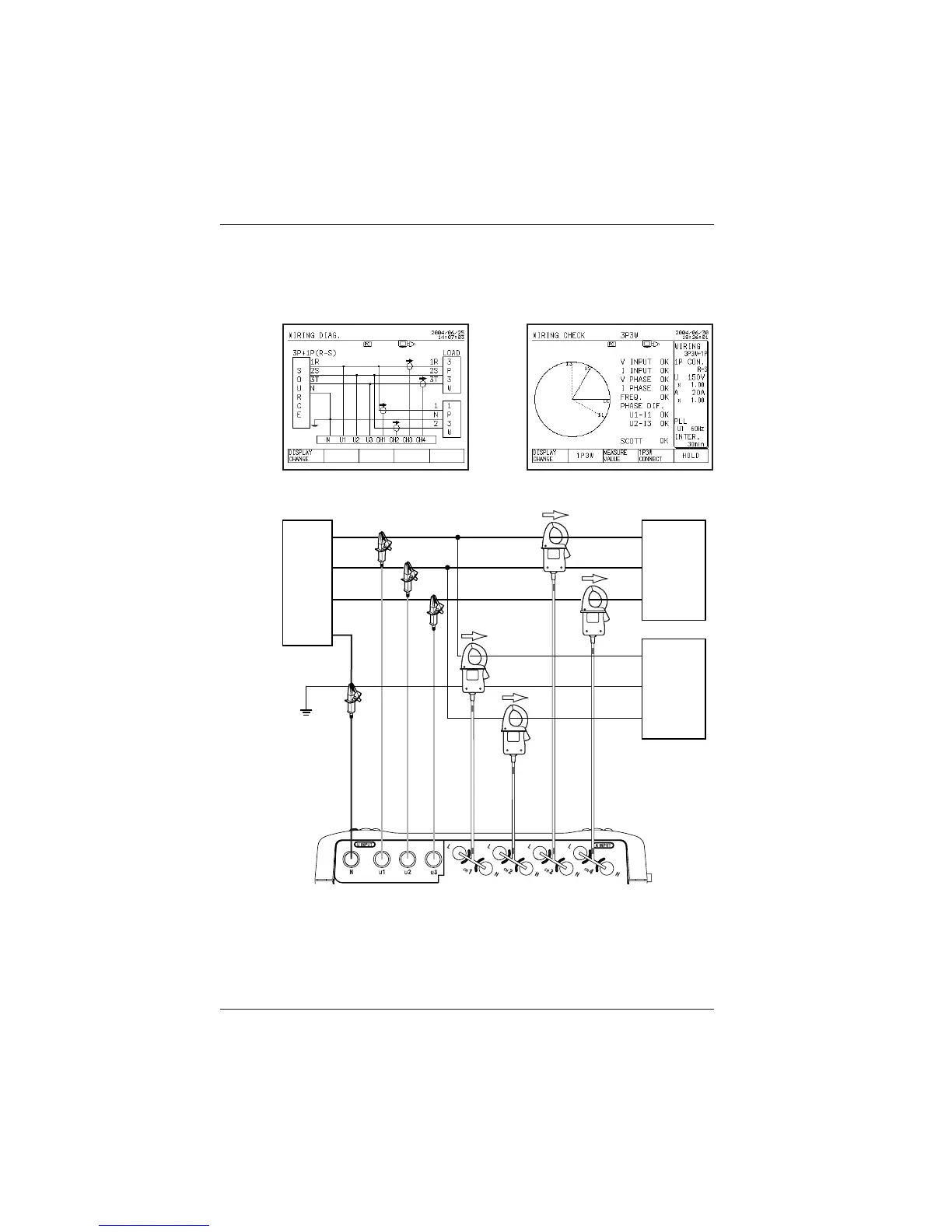

4.5.13 Scott Connection (3P3W+1P3W)
Single phase (1P3W) connection: R-S
● WIRING DIAGRAM Screen ● WIRING CHECK Screen
● Actual Wiring
2S
1R
3T
2S
1R
3T
N
N
1
2
Power
supply
Three-phase,
3-wire
Load
Single-phase,
3-wire
Load
Black Red Yellow Blue
SEE ALSO
For more information on wiring checks, see Section 4.7, Checking Wiring.
