A4-11
IM 34M06H62-02E 2nd Edition : June 2008-00

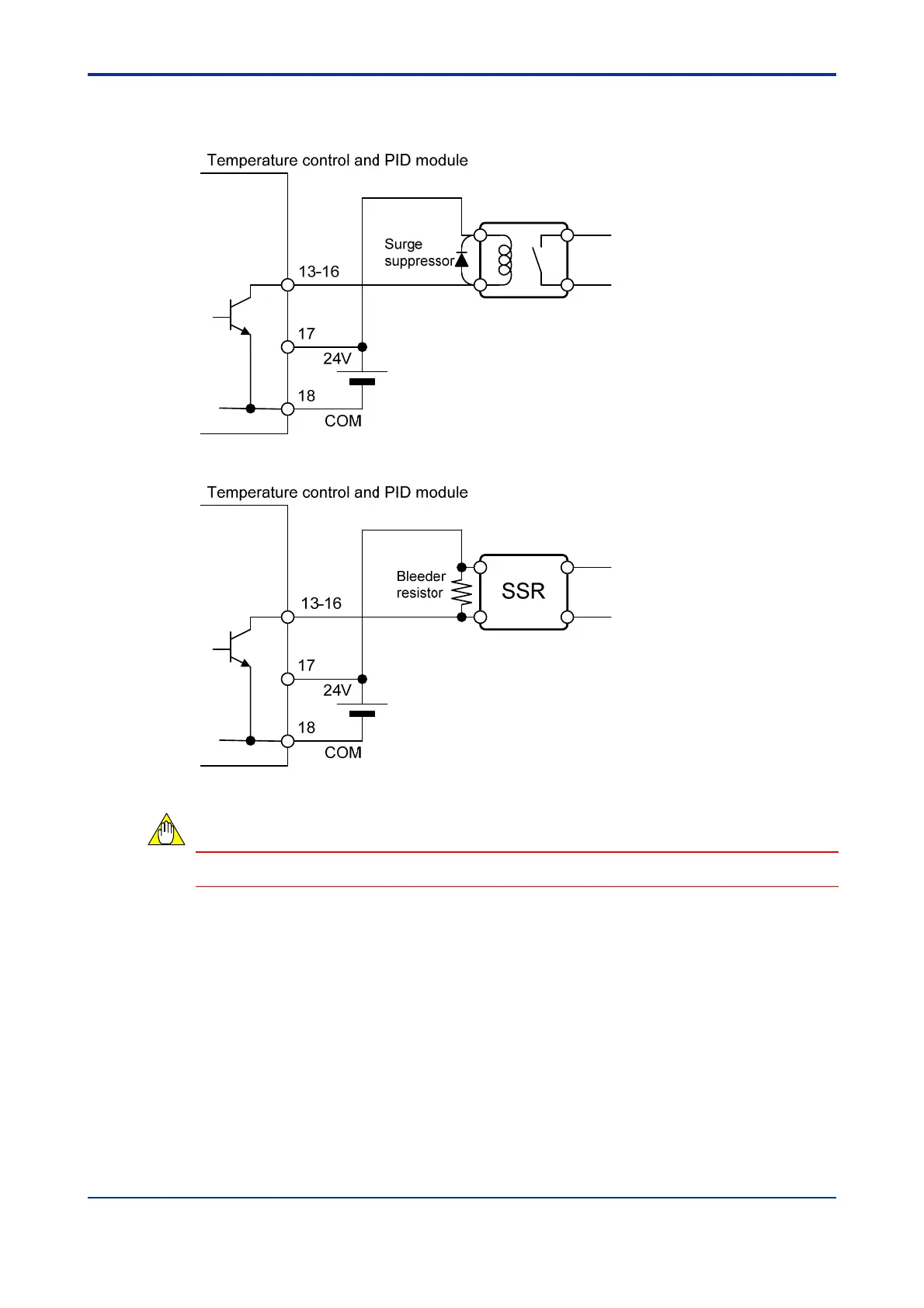

Output Terminal Wiring Example for F3CU04-0S
The output terminals of F3CU04-0S are open collector only.
Figure A4.8 Wiring Example for Connecting a Relay
Figure A4.9 Wiring Example for Connecting an SSR
CAUTION
Read Section A4.3.1, "Wiring Precautions" before performing wiring.
To Next Page
