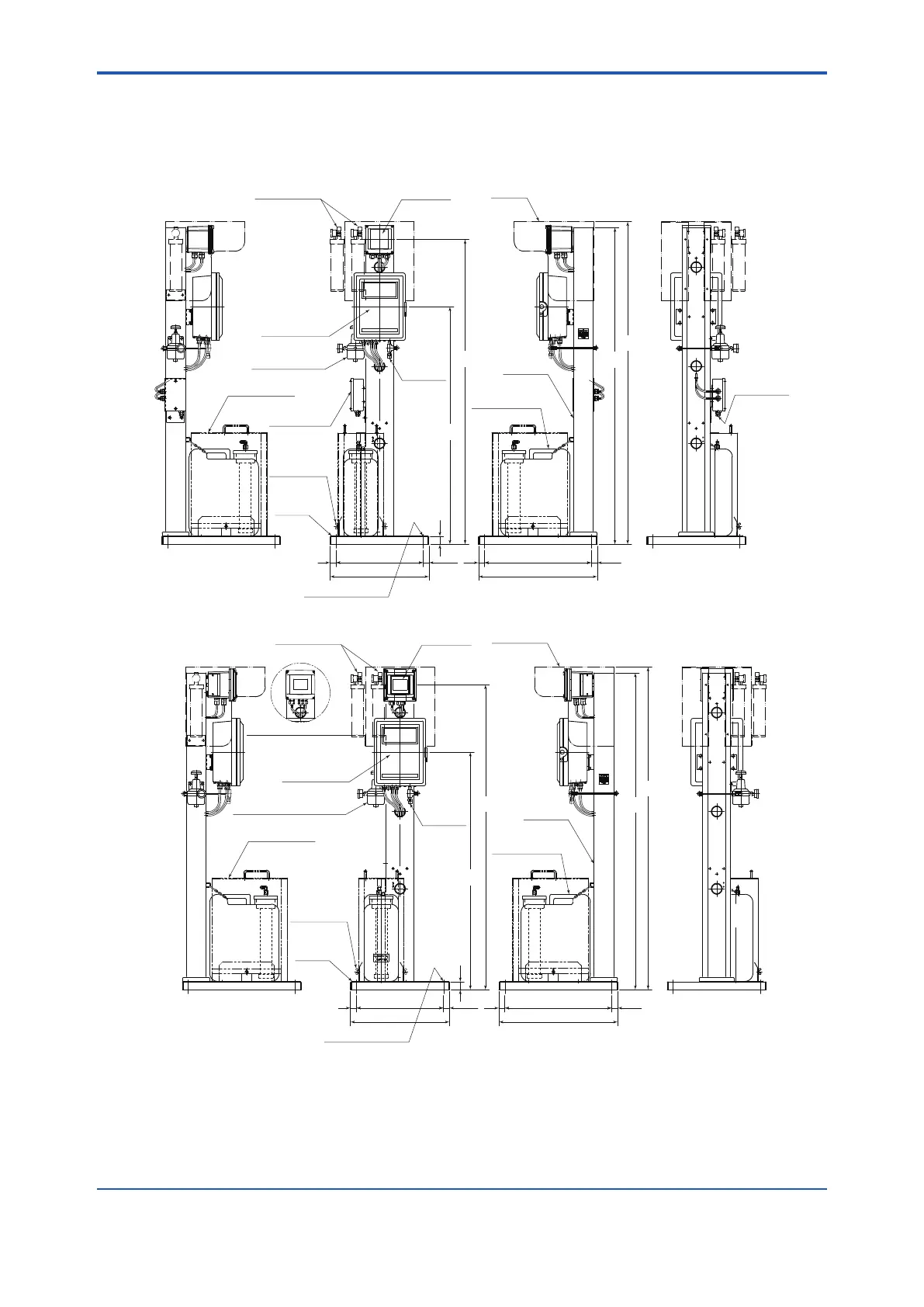

1.3 External Dimensions
n PH8SM3 Chemical Cleaning Unit
l pH/ORP Converter (PH8SM3-E)
1630
(1200)
40
30 440
(30) 30 540
500 600
(30)
(1540)
1600
Stand
（
SEHC
）
Chemical Solution
tank (20 L)
4-Φ15fixing holes
Hood
（
Option
）
unit
：
mm
KCl reserve tank *1
（
c
an be installed
）
Control Box
*2 Pressure Regulator
for KCI reserve tank
(AS3)
Tank cover
fixing screws
（
option
）
Power
Supply Unit
PVC plate
Power Cable Inlet
Cable O.D.
（Φ9 ～ 11）
PH450G
（
Separated Order
）
Tank Cover
（
Option
）
Air Inlet *3
(Rc1/4 or
1/4NPT)
l 2-Wire Analyzer (PH8SM3-G, -F)
1630
(1200)
40
30 440
(30) 30 540
500 600
(30)
(1540)
1600
Stand
（
SEHC
）
Chemical Solution
Tank (20 L)
4-Φ15Fixing holes
Hood(Option)
unit
：
mm
KCI reserve tank *1
(Can be installed)
Control Box
*2 Pressure Regulator AS3
（
for KCI reserve tank
）
Tank cover
fixing screws
(Option)
PVC plate
FLXA202
(Separated order)
FLXA21
(Separated Order
）
Tank Cover
(Option)
Air Inlet *3
（
Rc1/4
or 1/4NPT
）
*1: Mount the KCl solution reserve tank when necessary after installation. If the hood is specied, (Option code /H
is specied) mount the tank on the hood.
*2: This is a pressure valve to regulate the air that increases the pressure in the reserve tank for the KCl solution.
This valve is added only when specied.
*3: If no pressure valve is specied, there is no tube tting. Air inlet connects directly to piping port of the control
box.
