<2. Installation>
2-5
IM 12B07W01-04EN 1st Edition : Nov. 11, 2016-00
F2.7.ai
Rubber cap
Cable tie
Pass the cable tie through the
opening of the metal fitting
and then fasten the sensor cable
and, the KCI supply tube together.
Sensor holder
Metal fitting
KCl supply tube
Sensor cable

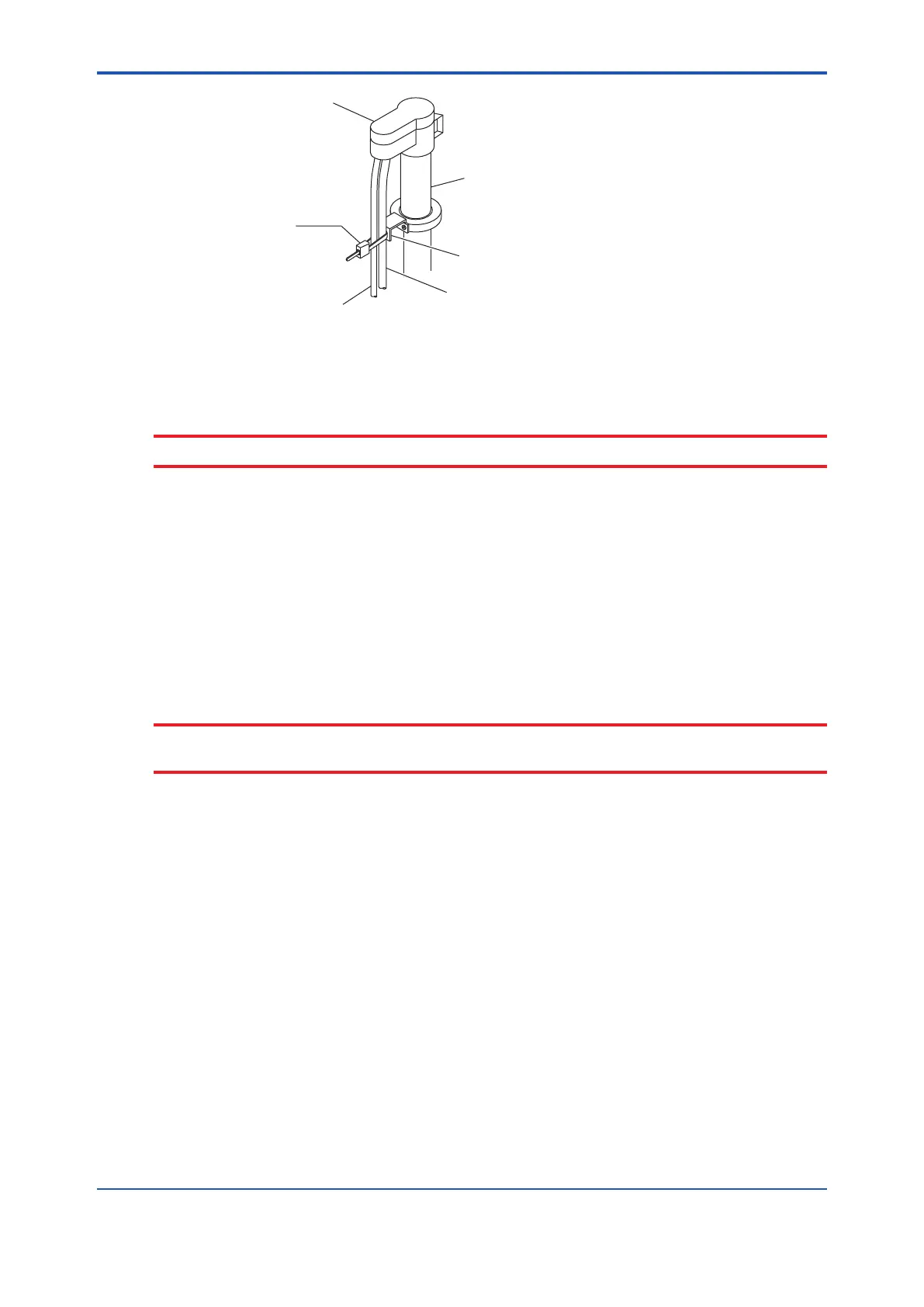

Figure 2.7 Fixing the Sensor Cable and KCI Supply Tube
(4) Fix the PH8HS3 holder to the pipe
CAUTION
When installing the holder, avoid any contamination or moist/wet on the tip of the sensor cable.
When xing the holder, make sure both of the following requirements are completely satised:
• During measurement, the tip of the pH sensor must be submerged in the measured
solution.
Carefully observe any changes in the liquid level.
• The bottom plate of the holder’s cleaning chamber must not become wet with the
measured solution.
Contamination of the gasket on the bottom plate by the solution will lead to a decrease in the
gasket’s sealing capability.
CAUTION
When the bottom plate of the holder’s cleaning chamber is open, good ventilation must attend its use
to prevent the holder from corrosive gas.
Figure 2.8 illustrates the PH8HS3 holder when it is installed.
To Next Page
