6.2.3 Sensor installation
DANGER
Risk of injury due to escaping fluids, if pipe connection is faulty
▶ Correct slope and mismatch of pipe connections before inserting the sensor.

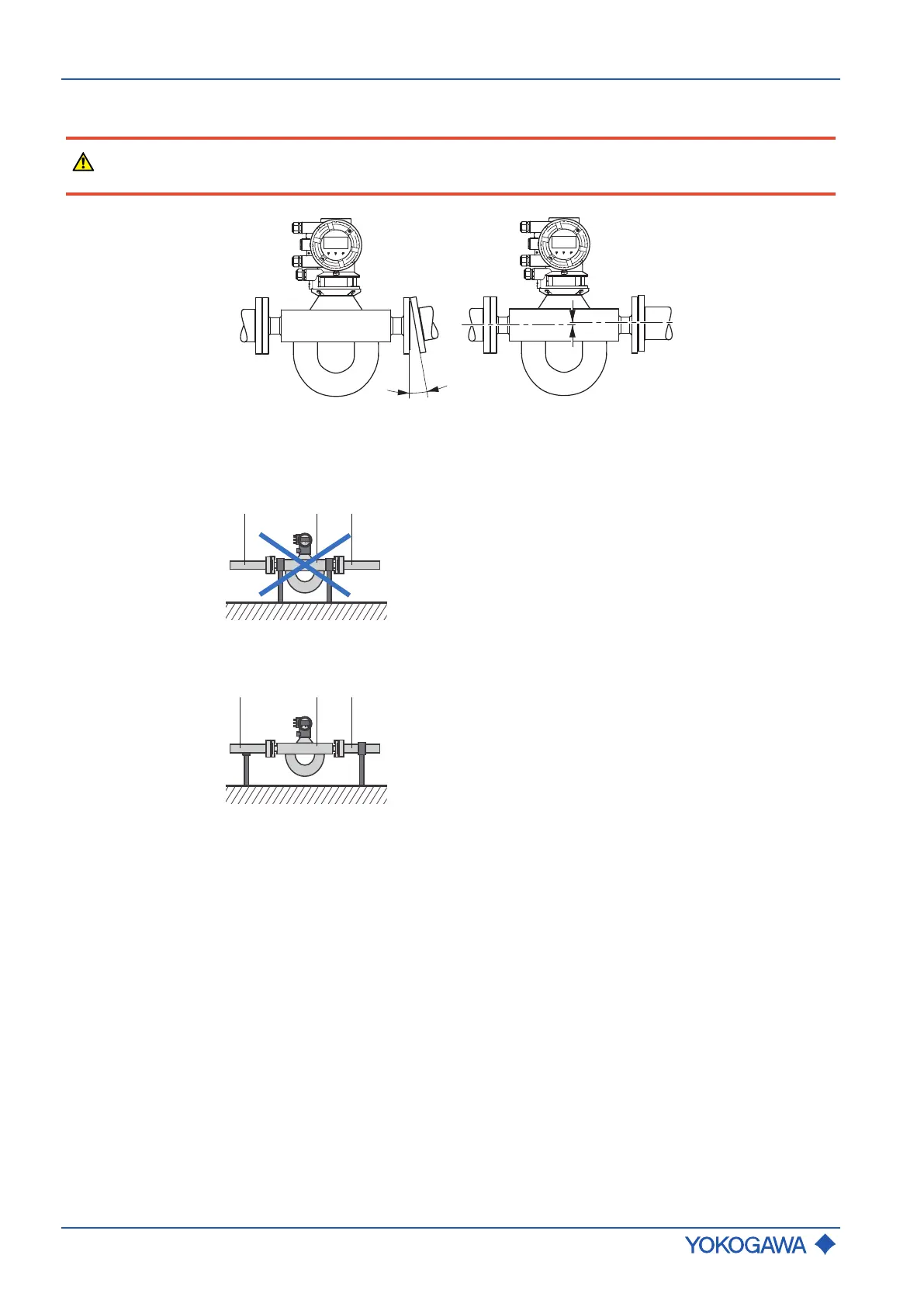

Fig.5: Avoid: Slope and mismatch
▶ Avoid fixing anything directly to the sensor. Doing so may result in increased devia-
tions.
Fig.6: Installation to be avoided: Fixing the sensor
Fig.7: Recommended installation: use the piping to support the sensor
1 Pipe
2 Sensor
▶ Secure pipes before installing the flow meter.
▶ Avoid damaging the process connections.
▶ Flush new pipes before installing the flow meter to remove foreign matter, such as
shavings or other residues.
