Dismantling of the defective transmitter
Quick Reference Instruction Manual for Spare
Transmitter replacement
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09
29 / 76
Transmitter
housing back cover

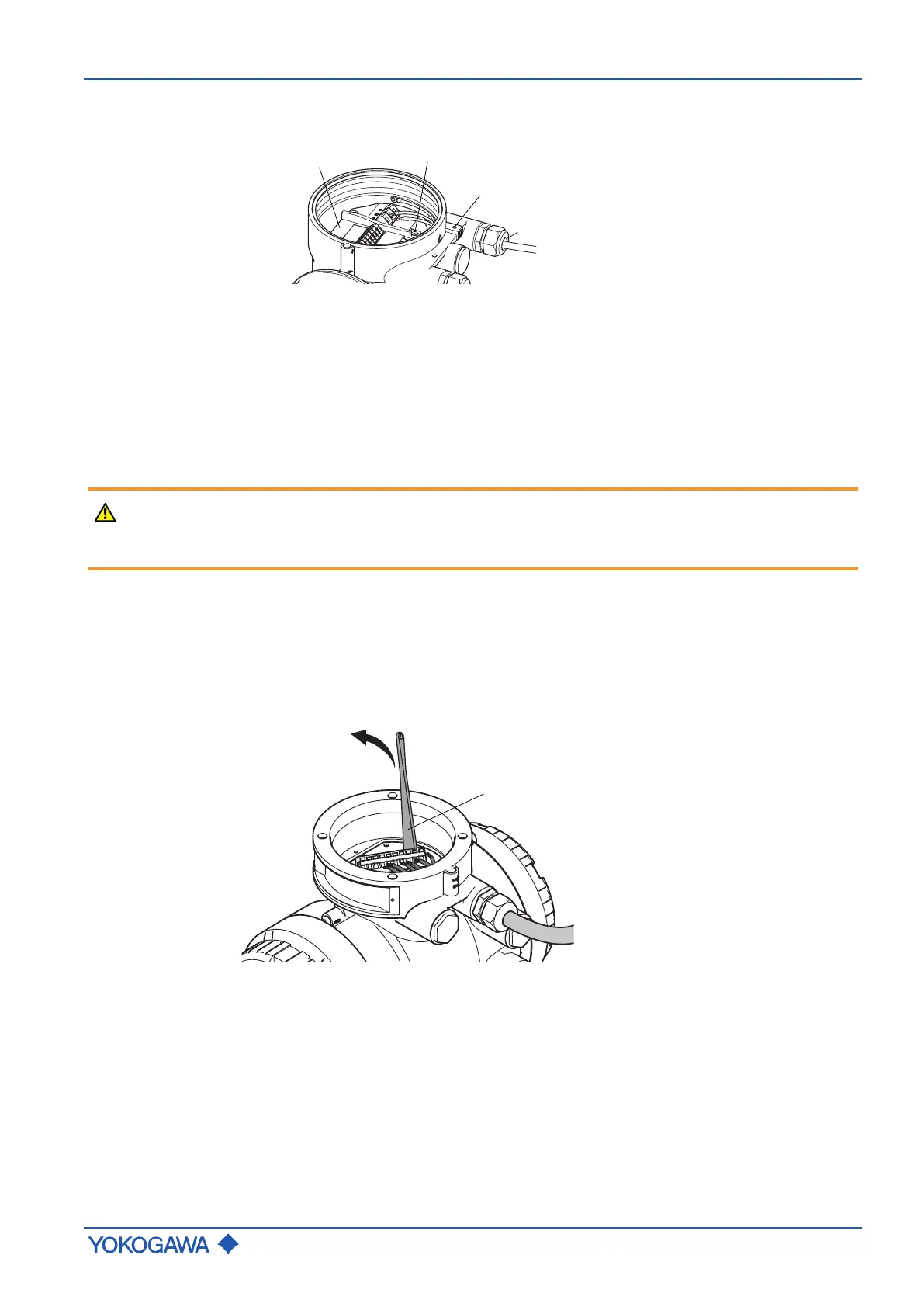

Fig.19: Connecting interfaces on transmitter housing back cover
1 Terminal box power and I/O
2 Grounding screw for connecting grounding conductor
3 Power supply cable entry
4 Grounding terminal for external potential equalization
7.1.2 Disconnect remote type transmitter
WARNING
Life-threatening injuries from electric shock
▶ Switch off power supply and communication.
▶ Secure against inadvertent switch-on.
Disconnecting
power, communi-
cation and ground-
ing
After power down and breaking all power cable connections from L/+ N/- and grounding
for the power circuit (except potential equalization connection of external grounding termi-
nal) the transmitter has to be disconnected by the following procedure:
1. Open the terminal box sensor connection.
2. Disconnect all cables with the operating tool.
3. Remove the cable gland and cable.
4. Remove locking screw of the “Terminal box power and I/O connection” and re-move
the back cover.
5. Disconnect the communication and I/O cables (Avoid short circuit!).
6. Remove the cable gland and cable.
